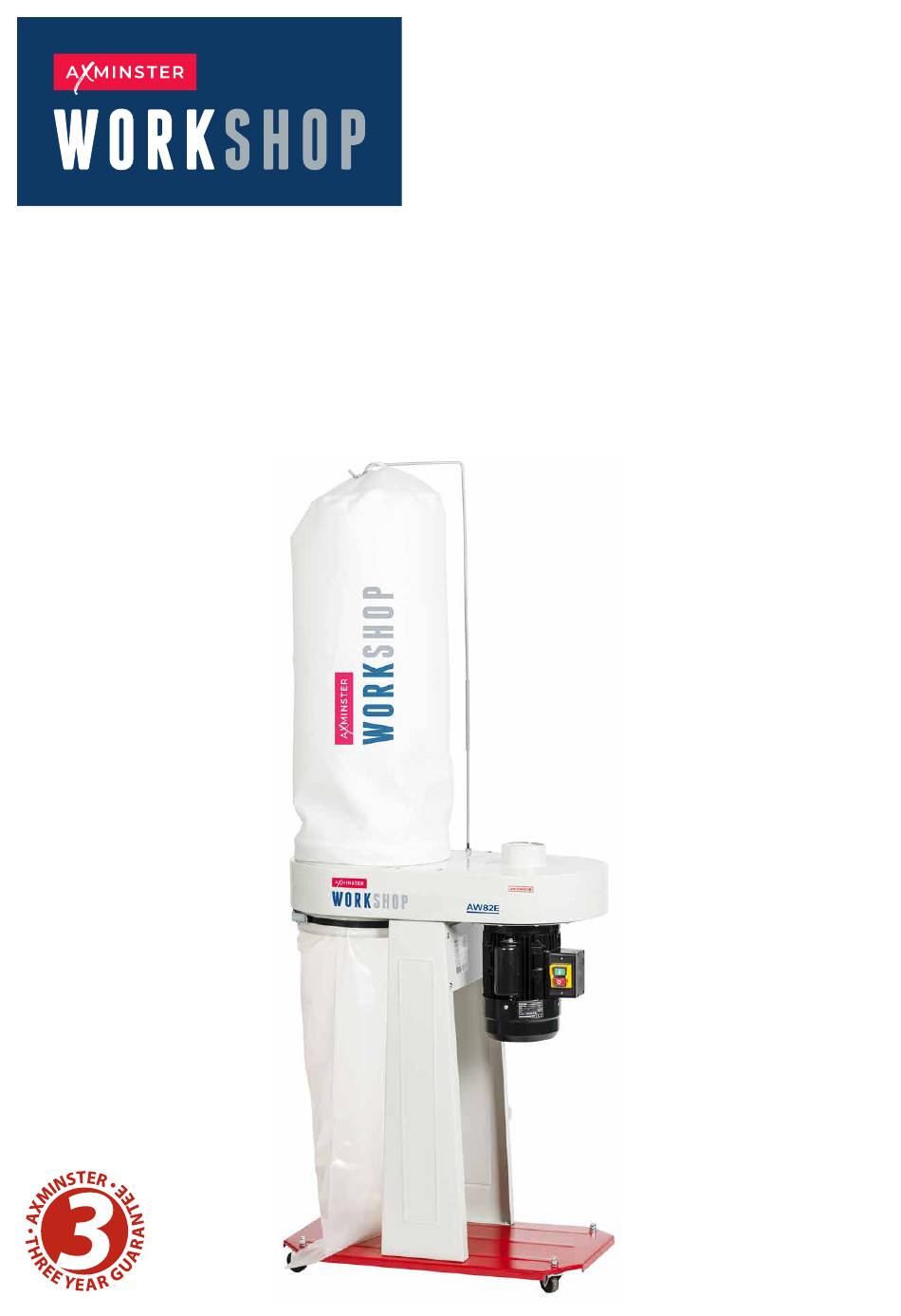

- Page 1 Code 107696 Original Instructions AW82E 1.5HP Dust Extractor AT: 10/02/2022 BOOK VERSION: 3...
-
Page 2: Eu Declaration Of Conformity
Operating Instructions Maintenance Exploded Diagrams/Lists 17-18 Wiring Diagram EU Declaration of Conformity Cert No: FM230L3 EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN 60335-2-69:2012 2014/30EU... -
Page 3: What's Included
What’s Included Quantity Item Part Model Number AW82E Extractor Assembly Base Upright Support Panels Cross Member Panel Filter Bag Hanger Bar Hanger Mounting Bar 30 Micron Filter Bag Dust Collecting Bag Filter and Bag Retaining Belts Castor Wheels Dome Head Hex Screws... -
Page 4: Optional Accessories
Part Axminster Craft Filter Cartridge Code 105187 Air filter cartridge for the AW82E chip extractor. Upgrades the performance of this extractor, able to handle fine sawdust as well as chippings. Simply slots on with a stiff rubber seal. You must use plastic waste sacks with this filter. -
Page 5: General Instructions For 230V Machines
Introduction The AC82E is a compact, well made chip extractor for use As standard, 30 micron filter bag is fitted, along with a in a home workshop. The main body can be mounted plastic waste sack. The filtration can be upgraded with either way up, giving a choice of inlet positions on the top an optional 1 micron cartridge filter. -
Page 6: Specification
ONLY USE DUST EXTRACTION DO NOT PLACE DUST EXTRACTION BAGS WITH THIS MACHINE NOT BAGS OVER THE FILTER ASSEMBLY! DOMESTIC WASTE BAGS! Specification Code 107696 Model AW82E Rating Workshop Power 1.1 kW Air Flow 1,530 m³/hr @ 100 mm Filtration 30 micron... - Page 7 Assembly Mounting hose for upright support panels (C) Continues Over...
- Page 8 Assembly The extractor assembly (A) can be mounted either way up, giving a choice of inlet positions on the top or the bottom of the machine. Mounting holes for panels (C) Centre mounting hole for hanger bar (F) L N P Mounting holes for panels (C) Mounting holes on both sides of extractor assembly...
- Page 9 Assembly • Turn the base assembly, see step 6 over. Line up the holes in the upright support panels (C) with the mounting holes on the extractor (A). Secure using the domed Hex screws (K) you removed earlier with four flat washers (N) and spring washers (P), see step 15-16-17.
- Page 10 Assembly Screw the hanger mounting bar (F) into the extractor assembly (A) Remove screws Hex (K) Tighten the nut to lock the mounting bar (F) in place Polystyrene Use the polystyrene packing to support the extractor (A) when mounting the base assembly the opposite way round. Mounting bar (F) Lower the filter bag hanger bar (E) down into the mounting bar (F), see step 22.
- Page 11 Assembly Filter bag belt pocket...
- Page 12 Assembly Optional Filter Cartridge Code 105187 • Remove the retaining belt (I) and remove the 30 micron filter bag (G), place to one side. Loosen • Locate the filter cartridge (R) and lower the assembly down over the extractors cavity and secure using the retaining belt (I).
-
Page 13: Illustration And Parts Description
Illustration and Parts Description Extractor Set Up 1 Filter bag hanger bar 30 Micron filter bag Hanger mounting bar 100mm Extraction inlet Filter and bag retaining belts Extractor assembly Motor Dust collecting bag Upright suppot panel NVR ON/OFF control switch Base Castor wheel... - Page 14 Illustration and Parts Description Extractor Set Up 2 Extractor Set Up 3 Shaker paddle Filter cartridge Inlet Extractor assembly with the inlet below Extractor assembly with optional filter catridge...
- Page 15 Operating Instructions Testing the Extractor Reduced Suction Performance Connect the extraction hose/s to the extractor’s inlet. After a period of time dust, sawdust and shavings can build up causing blockages and reduced suction performance. Carry out the following checks to keep WARNING! MAKE SURE CHILDREN your extractor working at peak performance.
-
Page 16: Maintenance
Maintenance DISCONNECT THE POWER SUPPLY FROM THE MAINS! ALWAYS WEAR A DUST MASK AND EYE PROTECTION. Daily • Empty the collection bag before it overflows, wear a dust mask whilst removing and emptying the bag. Weekly • Check the inlet and outlet duct and remove any accumulated sawdust. - Page 17 Exploded Diagrams/Lists...
- Page 18 Exploded Diagrams/Lists PART DESCRIPTION MOTOR PLATE SEAL PAD FOR MOTOR HEX-BOLT M8 x 12 WASHER M8 FLAT WASHER M8 TURBO FAN SUPPORT PLATE RING REINFORCE PLATE SCREW HEX M6 x 20 NUT M10 FAN HOUSING FLAT WASHER M10 FILTER BAG BASE PLATE UPPER BAG SUPPORT 1-HEX-BOLT Ml 0...
-
Page 19: Wiring Diagram
Wiring Diagram... - Page 20 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
