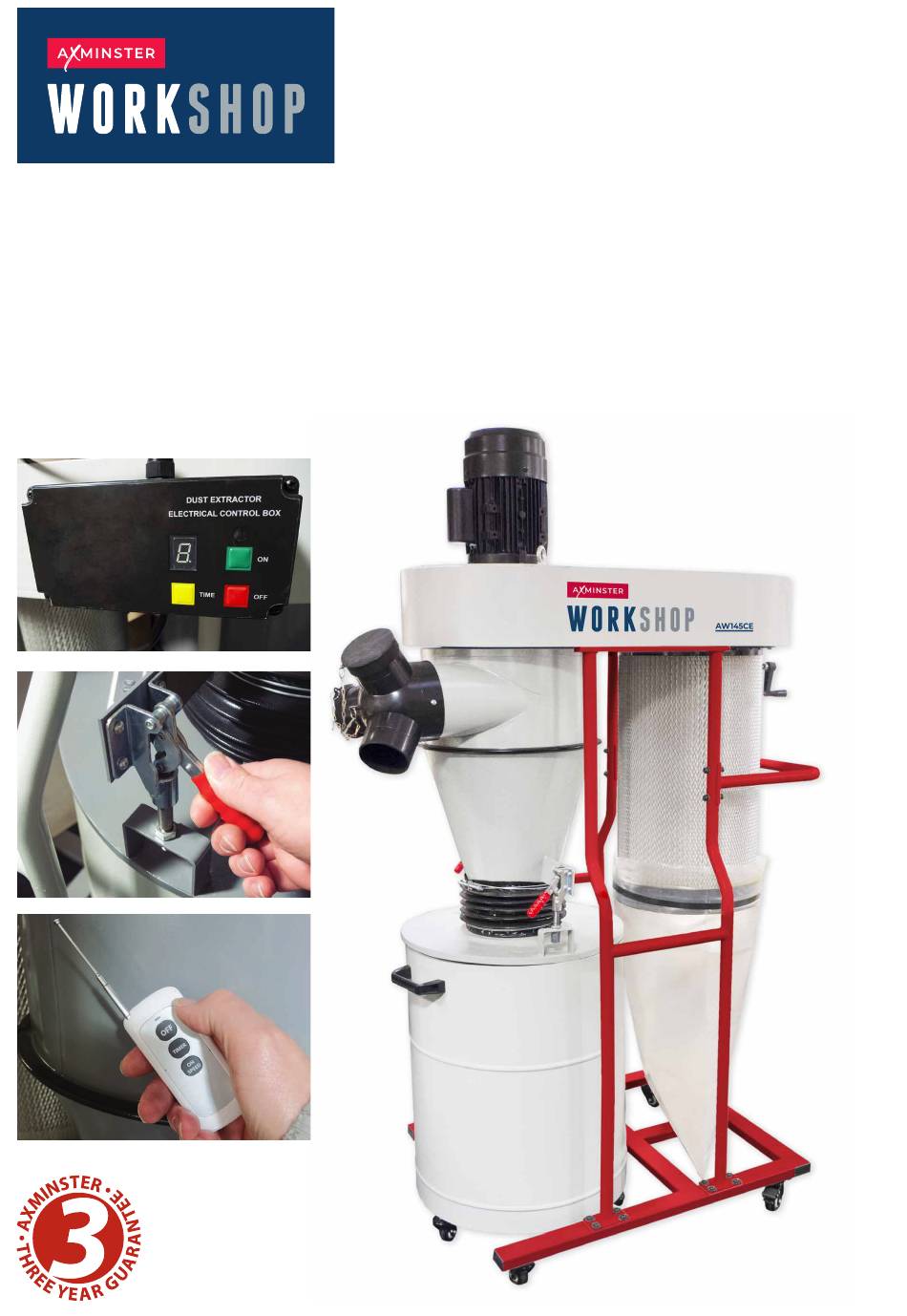

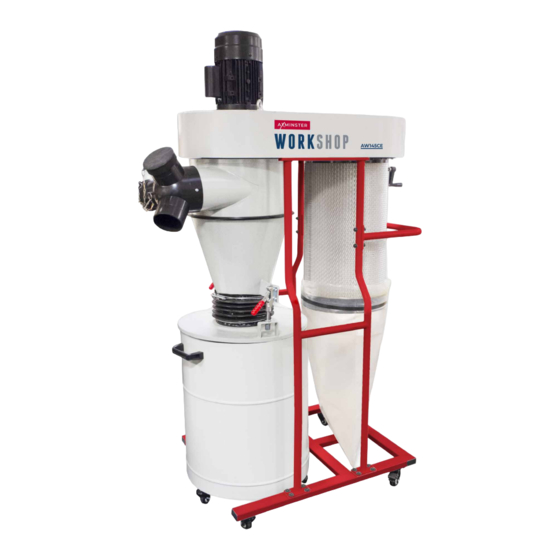

- Page 1 Code 107571 Original Instructions AW145CE Cyclone Extractor AT: 09/02/2022 BOOK VERSION: 01...
- Page 2 Cert No: FM330C-2000H EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN 62233:2008 EN 60335-2-69:2012 declares that the machinery described:- EN 60335-1:2012+A11+A13+A1+A14+A2 Type Cyclone Extractor AW145CE...
-
Page 3: Table Of Contents
Table of contents Preface 1 1. Safety ............................. 2 1.1 Safety instructions for general machinery ................. 2 1.11 Personal protective equipment .................... 3 1.2 Safety instructions for dust collector ..................3 2. Technical Specification ........................ 6 2.1 Specification ..........................6 2.2 Dimensions .......................... -
Page 4: Preface
Preface Before commissioning the machine, please read these operating instructions thoroughly and get familiar with the machine. Please also make sure that all persons operating the machine have read and understood the operating instructions beforehand. Keep these operating instructions in a safety place nearby the machine. Information The operating instructions include indications for safety-relevant and proper installation, operation and maintenance of the machine. -
Page 5: Safety
1. Safety This operating instructions ▲explains the meaning and use of the warning notes included in the operating instructions ▲points out the dangers that might arise for you or others if these instructions are not observed. ▲informs you how to avoid dangers. In addition to these operation instructions, please observe ▲the applicable laws and regulations ▲the statutory provisions for accident prevention... -
Page 6: Personal Protective Equipment
For your own safety, read instruction manual before operating the machine. Learn the machine’s application and limitations as well as the specific hazards peculiar. Always wear approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles everyday. Eyeglasses are not approved safety glasses. - Page 7 This dust collector is only intended for collecting wood dust and chips from woodworking machines. Do not use this dust collector to collect metal, dirt, pebbles, drywall, asbestos, lead paint, silica, INTENDED USE liquids, aerosols, or any flammable, combustible, or hazardous materials.
- Page 8 Plastic dust lines generate high amounts of static electricity as dust chips pass through them. Although rare, sparks caused by static electricity can cause explosions or fire. To reduce this risk, make STATIC ELECTRICITY sure all dust lines are thoroughly grounded by Using a grounding wire.
-
Page 9: Technical Specification
2. Technical Specification The following information represents the dimensions and weight information and the manufacturer‘s approved machine data. 2.1 Specification MODEL NO. FM330C-2000H Motor speed 50Hz (RPM) 2850r/min Motor speed 60Hz (RPM) 3450r/min Impeller size(MM) Φ330mm Inlet hole size(MM) Φ150mm Number of Intake holes(MM) 3XΦ100mm Bag size(MM) -
Page 10: Assembly
3. Assembly The cyclone dust collector is not pre-assembled. After unpacking, the machine must be installed. Transport the dust collector in its packing crate to a place near its final installation site before unpacking it. If the packaging shows signs of possible transport damage, take the necessary precautions not to damage the machine when unpacking. -
Page 11: Assembly
If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory. 3.4 Assembly The machine must be fully assembled before it can be operated. Before beginning the assembly process, gather all listed items. -
Page 12: To Assemble Machine
3.4.2 To assemble machine The machine is heavy. DO NOT over-exert yourself while assemble the machine. 2-3 manpower required to safely assemble it. STEP-1 Install the main bracket. Please refer to the picture. 1.1 Install the wheels to the base by using the hexagon socket head bolt M6x15 and flat washer Φ6. - Page 13 1.3 Fix the bracket to the base by using the hexagon socket head bolt M6x15 and washer Φ6. 1.4 Install the handle to the bracket by using hexagon socket head cap bolt M8X40, washer Φ8 and nut M8. STEP-2 Install the dust collection drum. Please refer to the picture.
- Page 14 2.1 Install the three wheels to the base of the dust collection drum. 2.2 Fix the plexiglass and the rubber pad by head screw M4X12, flat washer Φ4 and nut 2.3 Install the handle bar to the dust collection drum by hexagon socket head bolt M8X20 and flat washer 8, self-locking nut M8.
- Page 15 STEP-3 Fasten the dust collect bag on the canister filter by bag clamp. Please refer to the picture. STEP-4 Final step: Combine the impller housing, machine bracket, cyclone funnel assembly, canister filter together. Please refer to the picture. 4.1 Fasten the impeller housing on the main bracket by bolt M8X20.
- Page 16 4.2 Fasten the cyclone funel assemly on the impeller housing by bolt M8X16. 4.3 Fasten the canister filter on the impeller housing by bolt M8X16. 4.3 Fasten the dust collection drum on the drum cover by two drum lock handles. ...
-
Page 17: Initial Commissioning
3.5 Initial commissioning Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly. If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. -
Page 18: Accessories For Dust Collector
3.6 Optional accessories for dust collector Blast gate Elbow Adaptor Connector Connector Canister filter Flexible hose Hose clamp Bag clamp Dust bag More accessories available, please inquire the local retailer. ... -
Page 19: Operation
4. Operation The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the machine controls/components discussed later in this manual are easier to understand. Due to the generic nature of this overview, it is not intended to be an instructional guide. -
Page 20: Remote Control And Electrical Control Box
4.1 Remote control and electrical control box 4.1.1 Remote control The machines comes with a remote control which is convenient to control the machine at a certain distance. There are three keys on the remote control: The top one is stop button. The middle one is timer, which we could timing the machine to run at 2 hours, 4 hours, 6 hours and 8 horus. -
Page 21: Tips For Optimum Performance
4.2 Tips for optimum performance ▲ Avoid using more than 10' of flexible hose on any ducting line. The ridges inside flexible hose greatly increase static pressure loss, which reduces suction performance. ▲ Keep ducts between the dust collector and machines as short as possible. ▲... -
Page 22: Maintenance
5. Maintenance 5.1 Schedule For optimum performance from this machine, this maintenance schedule must be strictly followed ongoing. To maintain a low risk of injury and proper machine operation, if you ever observe any of the items below, shut down the machine immediately and fix the problem before continuing operations: ▲... -
Page 23: Removing/Replacing Filter Bag
5.4 Removing/Replacing filter bag Remove and replace the filter bag when it is about 1/2 full . To remove & replace filter bag or bags: 1. DISCONNECT MACHINE FROM POWER! 2. Release clamp around bottom of canister filter, then remove filter bag. 3. -
Page 24: Troubleshooting
6. Troubleshooting Review the troubleshooting procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, callb us. Note: Please gather the serial number and manufacture date of your machine before calling. ... - Page 25 Symptom Possible Cause Possible Solution Dust collector does 1. Collection bag full. 1. Empty collection bag. not adequately collect 2. Canister filter clogged/at fault. 2. Clean canister filter; replace canister filter. dust or chips; poor 3. Ducting blocked/restricted. 3. Remove ducting from dust collector inlet and performance.
-
Page 26: Diagram And Part List
7. Diagram and part list 7.1 Diagram... -
Page 27: Part List
7.2 Part list Part No. Description Part No. Description Left bracket Dust collection drum Hexagon screw M8X40 Caster Pull handle Hexagon screw M8X20 Right bracket Handle M8 nut Flat washer 8 Flat washer 8 Self-locking nut M8 Round head screw M6X15 Cross head screw M4X12 Washer 6... -
Page 28: Wiring Diagram
7.3 Wiring diagram 120V/60HZ 230V/50HZ 400V/50HZ ... - Page 30 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
