User's Guide
TPS65988 Evaluation Module
This document is the user guide for the TPS65988 Evaluation Module (TPS65988EVM). The TPS65988EVM
allows for evaluation of the TPS65988 IC as part of a stand-alone testing kit and for development and testing of
USB Type-C and Power Delivery (PD) end products. Out of the box, the TPS65988EVM is configured to emulate
a dual-port laptop computer. Both ports can be used to source or sink power, and both are dual-role ports (DRP)
but only support data as a downstream-facing port (DFP) host. When different configurations are required to test
your system, use the TPS65988 Application Configuration software tool to create a configuration or load a
different configuration template (see
DisplayPort
(DP) and a USB HUB (TUSB8020) to route USB signals to the appropriate port A or port A (port
A/B). The control MUX and USB HUB are connected to a SuperSpeed (SS) MUX (TUSB546) which routes the
appropriate DP lanes and USB 3.0 signals according to cable orientation and Alternate Mode selection.
1-2
highlights these features.
SLVUB62B – JUNE 2017 – REVISED NOVEMBER 2020
Submit Document Feedback
ABSTRACT
Figure
1-1). The TPS65988EVM uses a control MUX (HD3SS3412) to route

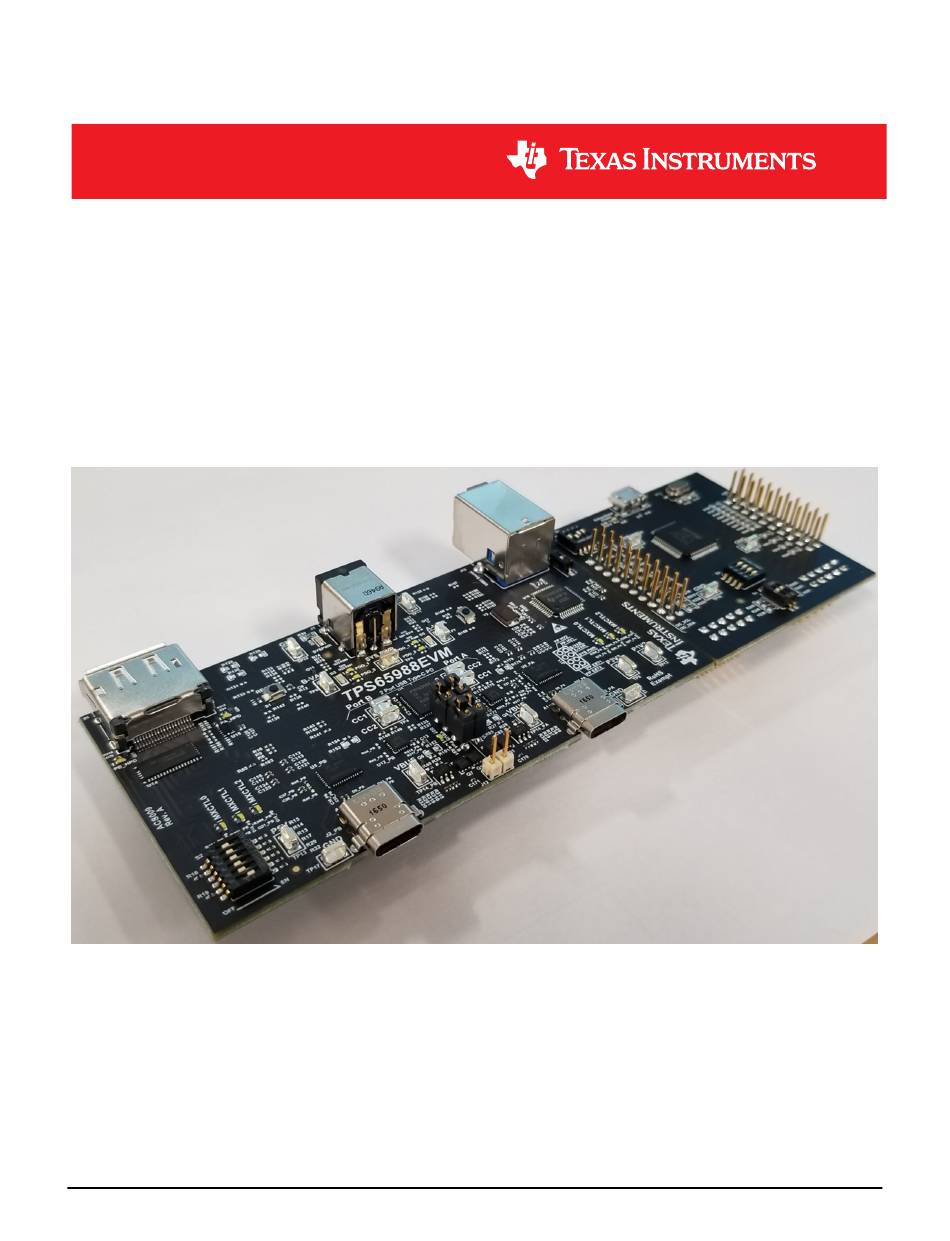

Figure 1-1. TPS65988EVM

Copyright © 2020 Texas Instruments Incorporated
Figure
TPS65988 Evaluation Module
1
