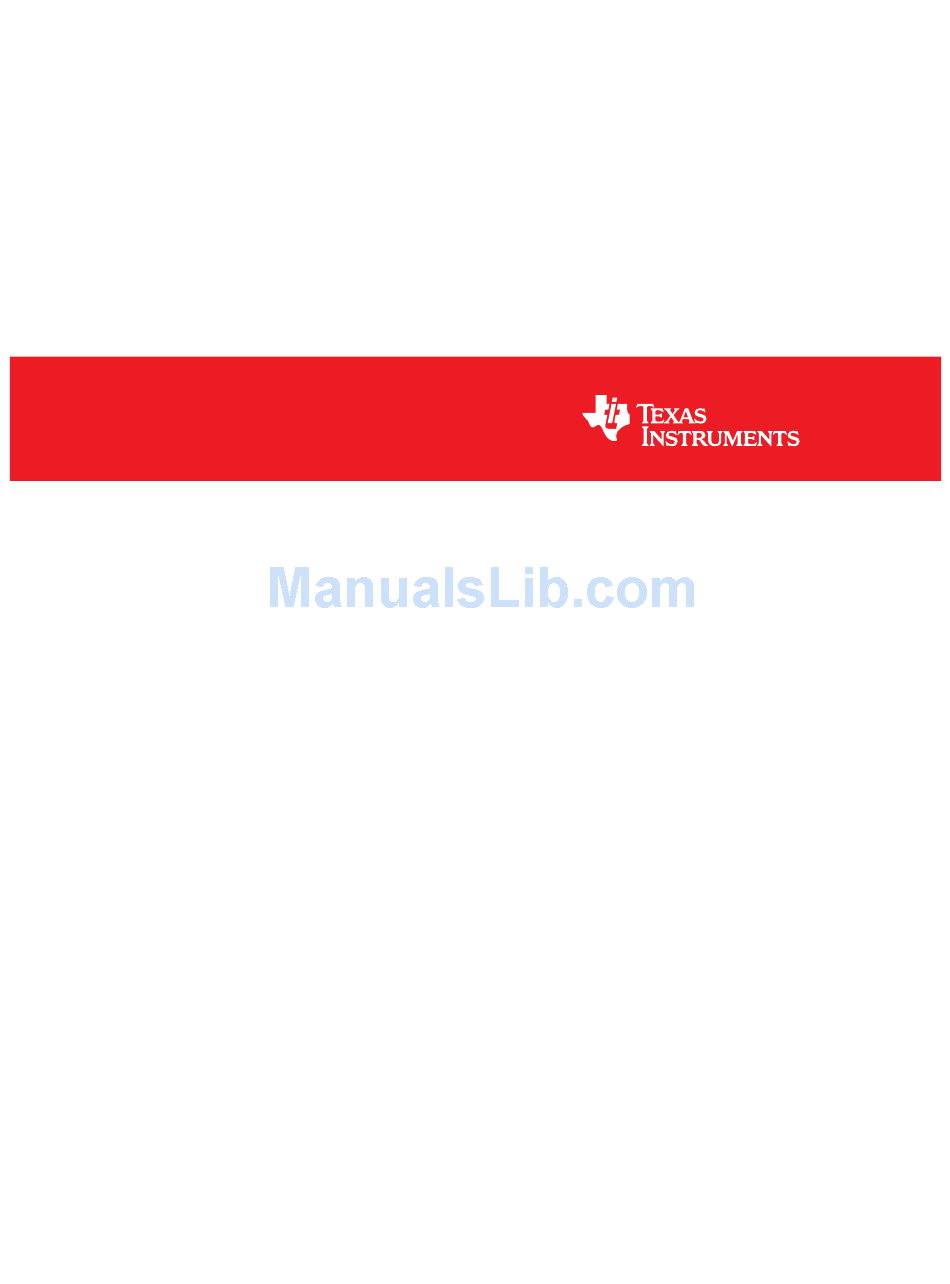

- Page 1 TPS65980EVM User's Guide Literature Number: SLVUA50 April 2014...
-
Page 2: Table Of Contents
..................... Power Supply Inputs ......................Jumper Settings ....................Device Configurations ........................ Test Points ....................Board Assembly and Layout ......................... Schematic ........................Bill of Materials Table of Contents SLVUA50 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 3 High Voltage Input With Higher CBL_OUT Current Limit ......................Top Layer Assembly ..................... Bottom Layer Assembly ......................Top Layer Routing ...................... Bottom Layer Routing ........................Schematic SLVUA50 – April 2014 List of Figures Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 4: Introductions
This section describes the jumpers and connectors on the EVM as well as how to properly connect, set up, and use the TPS65980EVM. Power Supply Inputs Figure 1 shows the connection points needed to fully and correctly interface with the TPS65980EVM. DEV_EN OFF|ON CBL_ILIM HI|LOW Figure 1. -
Page 5: Jumper Settings
DEV_EN Left (TBT_OUT) DEV_OUT Disabled DEV_EN Right (GND) DEV_OUT Enabled CBL_ILIM Left (TBT_OUT) CBL_OUT using higher current limit CBL_ILIM Right (GND) CBL_OUT using lower current limit SLVUA50 – April 2014 TPS65980EVM Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 6: Device Configurations
This is the average output voltage range for normal loads. During light load, the average output voltage from CBL_OUT may reach 3.4 with peaks not exceeding 3.42V. Figure 3. High Voltage Input During Sleep TPS65980EVM SLVUA50 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 7: High Voltage Input With Lower Cbl_Out Current Limit
TBT_OUT and CBL_OUT may reach 3.4 with peaks not exceeding 3.42V The total combined output current from TBT_OUT, CBL_OUT, and DEV_OUT should never exceed 3.5A. Figure 5. High Voltage Input With Higher CBL_OUT Current Limit SLVUA50 – April 2014 TPS65980EVM Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 8: Test Points
Test Point Signal Description DEV_OUT Switching Node BOOT TBT_IN TBT_OUT Compensation Pin TP10 TP11 TP12 Soft Start Pin TP13 RESET_N Signal TP14 HV_OK Signal TP15 TP16 CBL_OUT TPS65980EVM SLVUA50 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 9: Board Assembly And Layout
Board Assembly and Layout www.ti.com Board Assembly and Layout Figure 6 Figure 7 show the top and bottom assembly for the TPS65980EVM. Figure 6. Top Layer Assembly Figure 7. Bottom Layer Assembly SLVUA50 – April 2014 TPS65980EVM Submit Documentation Feedback... -
Page 10: Top Layer Routing
Board Assembly and Layout www.ti.com Figure 8 Figure 9 show the top and bottom layout for the TPS65980EVM. Figure 8. Top Layer Routing Figure 9. Bottom Layer Routing TPS65980EVM SLVUA50 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 11: Schematic
Schematic www.ti.com Schematic The Schematic for the EVM is given in Figure Figure 10. Schematic SLVUA50 – April 2014 TPS65980EVM Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 12: Bill Of Materials
Bill of Materials www.ti.com Bill of Materials This section contains details on the bill of materials for the TPS65980EVM. Unpopulated items have a quantity of 0. Bill of Materials Designator Quantity Value Description Package Reference Part Number Manufacturer Alternate Part... -
Page 13: Important Notice
