This document is the user's guide for the TPS65982 Evaluation Module (TPS65982-EVM). The
TPS65982-EVM allows for evaluation of the TPS65982 IC as part of a stand-alone testing kit and for
development and testing of USB Type-C and Power Delivery (PD) end products.
1
2
3
...................................................................................................................
4
4.1
Using the TPS65986 on the TPS65982-EVM
..........................................................................................................................
5
5.1
Header, Jumper, Switch, Push Button and Test Point Descriptions
5.2
5.3
Getting Started Using the TPS65982-EVM
...................................................................................................................
6
7
8
9
Tiva, Code Composer Studio, Thunderbolt are trademarks of Texas Instruments.
SLVUAF8C - June 2015 - Revised November 2015
Submit Documentation Feedback
............................................................................................................
..............................................................................................
..................................................................................................
................................................................................................................
.............................................................................................................
.......................................................................................................
Copyright © 2015, Texas Instruments Incorporated
SLVUAF8C - June 2015 - Revised November 2015
TPS65982 Evaluation Module
Contents
...............................................................................
...................................................................
...................................................................
User's Guide
.........................................
TPS65982 Evaluation Module
4
4
4
5
5
8
8
10
11
29
31
35
38
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS65986 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TPS65986

Summary of Contents for Texas Instruments TPS65986

  • Page 1: Table Of Contents

    ........................ Board Layout ......................Bill of Materials ....................... Firmware Installation Tiva, Code Composer Studio, Thunderbolt are trademarks of Texas Instruments. SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 2 ......................Configuration ID 9 ......................Configuration ID 10 ......................Configuration ID 11 ......................Configuration ID 12 ......................Configuration ID 13 TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 3 ......................Configuration ID 14 ......................Configuration ID 15 ......................Bill of Materials SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 4: About This Manual

    The following items are recommended for developing firmware for an attached processor to control the TPS65982-EVM: • Tiva C-Series EK-TM4C123GXL LaunchPad • USB standard-A to mini-B cable • Computer with Code Composer Studio™ installed TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 5: Introduction

    EVM J2 and J3 headers and can also be used to control external SuperSpeed and DisplayPort multiplexers. Using the TPS65986 on the TPS65982-EVM The TPS65986 is a pin-to-pin compatible device and is drop-in replaceable with the TPS65982. The following list shows the differences and similarities between the TPS65982 and TPS65986: •...

  • Page 6: Tps65982-Evm (Top View)

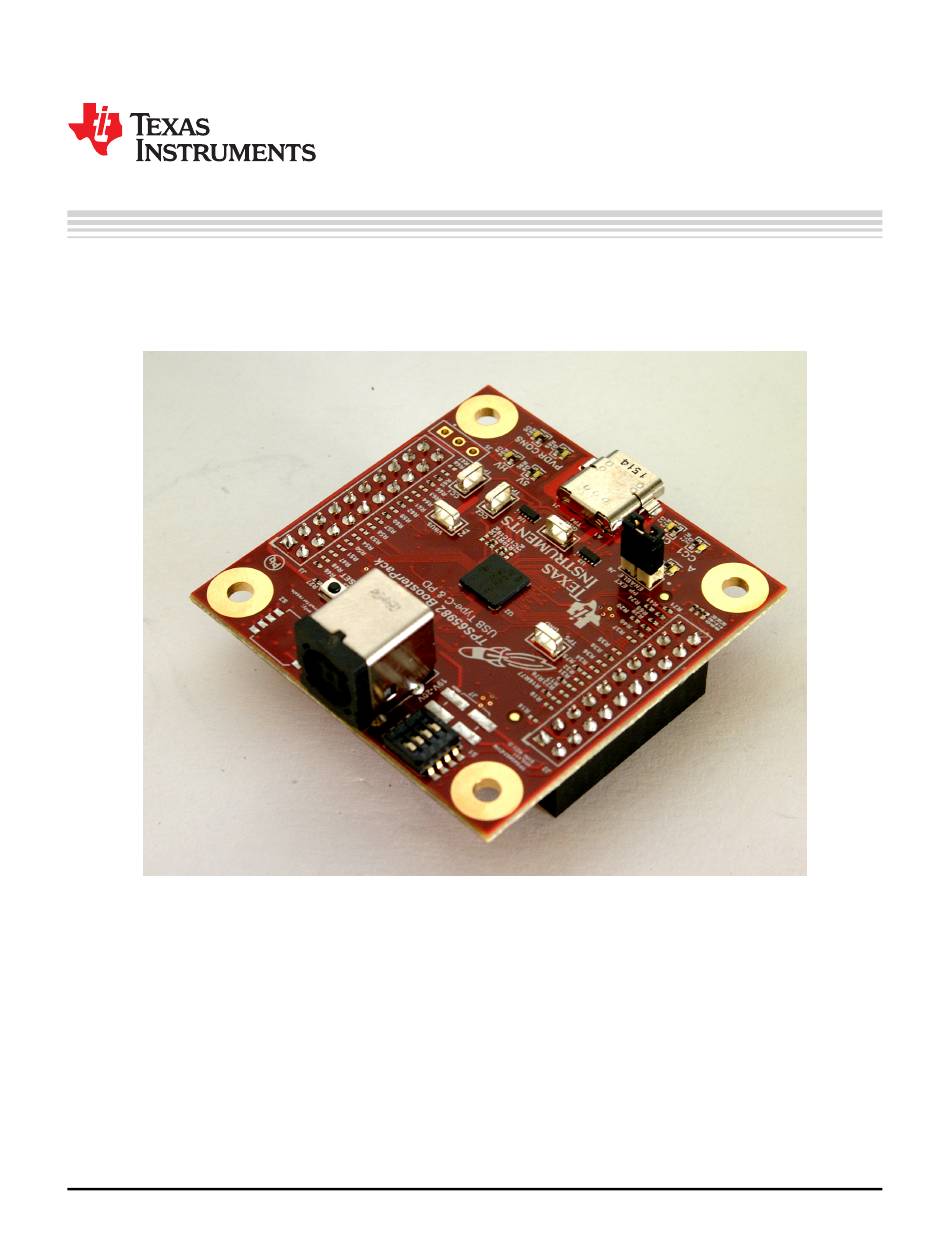

    Introduction www.ti.com Figure 1. TPS65982-EVM (Top View) TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 7: Tps65982-Evm (Bottom View)

    Introduction www.ti.com Figure 2. TPS65982-EVM (Bottom View) SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 8: Setup

    External Power rail TPS65982-EVM. A standard Dell or HP notebook adapter or similar will provide the needed power. For example, the Dell 130W Part Number: 492-BBGP. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 9 J1: USB Type-C Receptacle Receptacle J1 is the USB Type-C port where a USB Type-C cable can be plugged into the TPS65982- EVM. SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 10: Led Descriptions

    12 V as a provider. This indicator will blink ON and OFF when a USB PD contract has been negotiated for 20 V as a provider or consumer. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 11 (CC1) or LED D3 (CC2) will turn ON to indicate that the cable is inserted right-side up (CC1 ON and CC2 OFF) or upside-down (CC2 ON and CC1 OFF). SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 12 When a USB PD contract has been negotiated to enter an alternate mode for Thunderbolt video+data, LED B (D5) will blink On and OFF every 1 second to indicate that this event has occurred. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 13: Tps65982-Evm Configuration Table

    Section 5.3.3.16. Table 2. TPS65982-EVM Configuration Table * Configuration compatible with the TPS65986 NOTE: To achieve 5 A, an active or electronically marked cable is needed. SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback...

  • Page 14: Configuration Id 0

    TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 15: Configuration Id 1

    SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 16: Configuration Id 2

    ID 6. These TPS65982-EVM configurations respectively emulate dock, dongle, and charger-adapter applications and the same performance is expected when connected to actual applications of these products. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 17: Configuration Id 3

    ID 6. These TPS65982-EVM configurations respectively emulate dock, dongle, and charger-adapter applications and the same performance is expected when connected to actual applications of these products. SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 18: Configuration Id 4

    TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 19: Configuration Id 5

    SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 20: Configuration Id 6

    These TPS65982-EVM configurations respectively emulate high-power bus-powered device, notebook, dock, and tablet applications and the same performance is expected when connected to actual applications of these products. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 21: Configuration Id 7

    SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 22: Configuration Id 8

    Thunderbolt Alternate Mode for video+data. This configuration is also compatible with a TPS65982-EVM using configuration ID 4 for providing power and entering DisplayPort alternate mode. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 23: Configuration Id 9

    DisplayPort alternate mode. This configuration is also compatible with a TPS65982-EVM using configuration ID 4 for providing power and entering DisplayPort alternate mode SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 24: Configuration Id 10

    5.3.3.11.5 Ideal Connections This configuration pairs ideally with a TPS65982-EVM using configuration ID 2 and 8 to enter the Thunderbolt alternate mode. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 25: Configuration Id 11

    DisplayPort alternate mode. When acting as a bus-powered dock connecting to configuration ID 3 will power the dock from bus-power and will negotiate DisplayPort alternate mode. SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 26: Configuration Id 12

    USB2.0 and 3.1 mode for data by default. This configuration can be used with any of the other configurations which are capable of sinking power. TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 27: Configuration Id 13

    This configuration is capable of providing Type-C power (5 V at 3 A). 5.3.3.15.3 Sink Capabilities This configuration is not capable of sinking power SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 28 This configuration is capable of providing Type-C power (5 V at 3 A). 5.3.3.16.3 Sink Capabilities This configuration is designed to only sink Type-C power (5 V). TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 29: Schematic

    Con tact: j-o ntive ros@ ti .co m © T exas Ins trument s 2015 Figure 3. TPS65982-EVM Schematic Page 1 SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 30: Tps65982-Evm Schematic

    Con tact: j-o ntive ros@ ti .co m © T exas Ins trument s 2015 Figure 4. TPS65982-EVM Schematic Page 2 TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 31: Board Layout

    PCB layouts of this EVM. Figure 5. PCB Layer 1 (Top Layer) Figure 6. PCB Layer 1 (Component View) SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 32: Pcb Layer 2 (Gnd Plane)

    Board Layout www.ti.com Figure 7. PCB Layer 2 (GND Plane) Figure 8. PCB Layer 3 (Inner Signal Layer 1) TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 33: Pcb Layer 4 (Gnd Plane)

    Board Layout www.ti.com Figure 9. PCB Layer 4 (GND Plane) Figure 10. PCB Layer 5 (Inner Signal Layer 2) SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 34: Pcb Layer 6 (Bottom Layer)

    Board Layout www.ti.com Figure 11. PCB Layer 6 (Bottom Layer) Figure 12. PCB Layer 6 (Component View) TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 35: Bill Of Materials

    Transistor, NPN, 50 V, 0.05 A, SOT-323 SOT-323 Q8, Q9, Q10 0.01 WSL0805R0100FEA18 Vishay-Dale RES, 0.01 ohm, 1%, 0.25W, 0805 0805 SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 36 Receptacle, 100mil, 3x1, Gold, TH Receptacle, 3x1, 2.54mm, TH 15-91-2040 Molex Header, 100mil, 2x2, Tin, SMT 2x2 100mil Tin Header TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 37 CRCW040243K2FKED Vishay-Dale RES, 43.2 k, 1%, 0.063 W, 0402 0402 TDA04H0SB1 C&K Components DIP Switch, SPST 4Pos, Slide, SMT 6.2x2.0x6.2mm SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 38: Firmware Installation

    In the following seven steps there are images indicating additional information. Please use the legend in Figure 13 to understand what image corresponds to what action. Figure 13. Legend TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 39: Wire Aardvark To Spi Pins For Flash On The Tps65982-Evm Board

    Next, boot up the Flash Center software (Figure 15) from the directory location you previously installed it. Figure 15. Flash Center GUI SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 40: Add Adapter

    NOTE: It should automatically detect the Aardvark when adding the adapter; if however, it does not download the Aardvark drivers from Total Phase and follow the installation prompts. Figure 18. Adapter Detection TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 41: Choose Target (Device Type)

    Click the “Choose Target” button to select the Target Device type in this case: SPI Flash → Winbond/NexFlash → W25Q80 as shown in Figure Figure 19. Select Target Device SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 42: Load Binary File

    Flash Center should be full of values. See the screen shots in Figure 20 for examples. Figure 20. Loading Data Section of Flash Center TPS65982 Evaluation Module SLVUAF8C – June 2015 – Revised November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 43: Program Tps65982-Evm

    To confirm if the loaded binary image matches the firmware installed on the TPS65982-EVM, click the verify button and see if it reports a success. Figure 22. Verifying Binary Image SLVUAF8C – June 2015 – Revised November 2015 TPS65982 Evaluation Module Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 44 Changes from B Revision (August 2015) to C Revision ....................Page ..............• Added Using the TPS65986 on the TPS65982-EVM section......• Changed TPS65982-EVM Configuration Table Overview section, added many new subsections. NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
  • Page 45 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
  • Page 46 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 47 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
  • Page 48 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
  • Page 49 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
