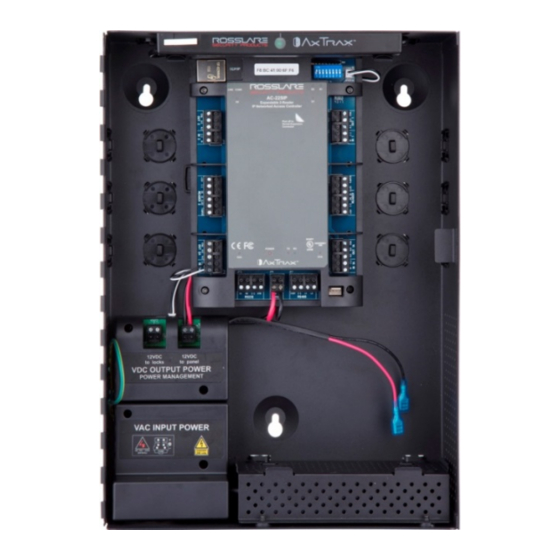

Related Manuals for Rosslare AC-225-BU
Summarization of Contents
1. Introduction
1.1 AxTraxNG
Overview of the AxTraxNG software system for managing access control panel networks.
2. Technical Specifications
2.1 AC-225x-DIN
Details electrical, environmental, and communication specifications for the AC-225x-DIN model.
2.2 AC-225x-B Installed in ME-1015
Covers technical specifications for the AC-225x-B when integrated with the ME-1015 enclosure.
3. AC-225x-B Panel Setup
3.1 Inputs Wiring – Non-Supervised Inputs
Illustrates wiring for non-supervised inputs on the AC-225x-B panel.
3.2 Inputs Wiring – Supervised Inputs
Explains wiring for supervised inputs, including resistor placement.
3.3 Outputs Wiring
Details wiring for 12 VDC electrical release mechanisms and voltage-free relay contacts.
3.4 Power Supply
Shows power wiring between PM-10 and AC-225x-B, recommending backup battery.
3.5 AC-225x-B Wiring Communications
Provides a detailed view of the panel's wiring for all communication interfaces.
3.6 Reader
Discusses reader wiring and maximum cable length for connecting readers.
3.7 MD-IO84B
Details the MD-IO84B expansion board and its connection.
3.8 MD-D02B
Explains the MD-D02B expansion board and its attachment.
4. Input and Output Connections
4.1 Input Types
Describes input types: Normally Open, Normally Closed, and supervised resistor configurations.
4.2 Inputs Description
Details the function and configuration of various inputs like REX, Door Monitor, and General Purpose.
4.3 Outputs
Recommends suppression diodes for outputs activating inductive loads and defines door lock output configurations.
4.4 Card Readers and Keypads
Explains connecting readers and keypads, including different reader types and their configurations.
5. AC-225x-B Hardware Settings
5.1 DIP Switch Configuration
Explains how DIP switches set baud rate, panel type, and network address.
5.2 Access Control Panel Baud Rate
Details setting the serial port baud rate for PC communication via DIP switches.
5.3 Access Control Panel Type
Describes how the third DIP switch defines panel type (readers per door) affecting door control.
5.4 Access Control Panel Addressing
Explains using DIP switches 4-8 to set the panel's binary network address.
6. Communications
6.1 Serial Network Connection
Details serial connection modes (RS-232, RS-485) for panel-computer communication.
6.2 TCP/IP Network Connection
Explains TCP/IP connectivity for AC-225IP models, including LAN/WAN requirements.
