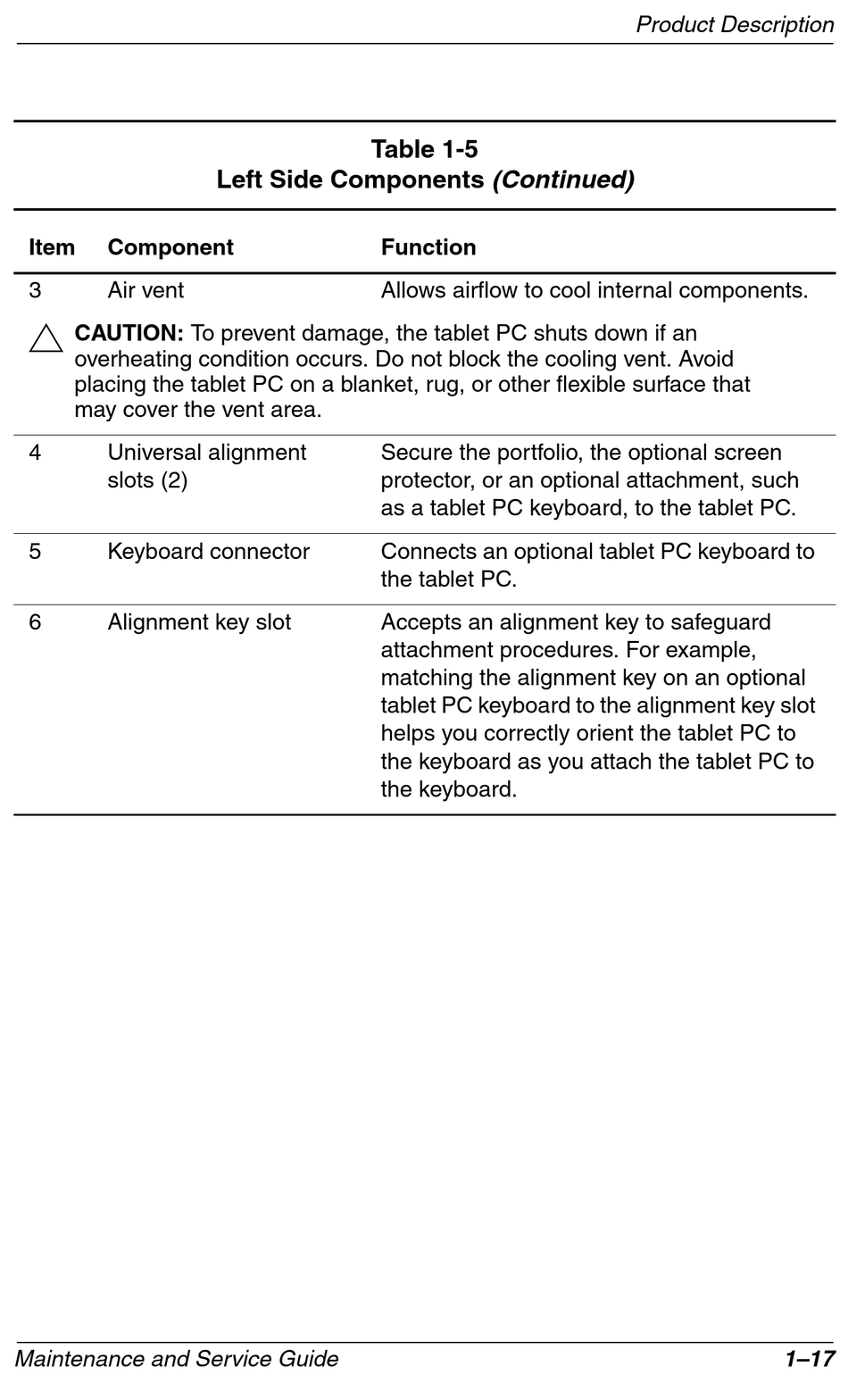

Item Component
3 Air vent
Ä
CAUTION: To prevent damage, the tablet PC shuts down if an
overheating condition occurs. Do not block the cooling vent. Avoid
placing the tablet PC on a blanket, rug, or other flexible surface that
may cover the vent area.
4 Universal alignment
slots (2)
5 Keyboard connector
6 Alignment key slot
Maintenance and Service Guide
Table 1-5
Left Side Components (Continued)
Function
Allows airflow to cool internal components.
Secure the portfolio, the optional screen
protector, or an optional attachment, such
as a tablet PC keyboard, to the tablet PC.
Connects an optional tablet PC keyboard to
the tablet PC.
Accepts an alignment key to safeguard
attachment procedures. For example,
matching the alignment key on an optional
tablet PC keyboard to the alignment key slot
helps you correctly orient the tablet PC to
the keyboard as you attach the tablet PC to
the keyboard.
