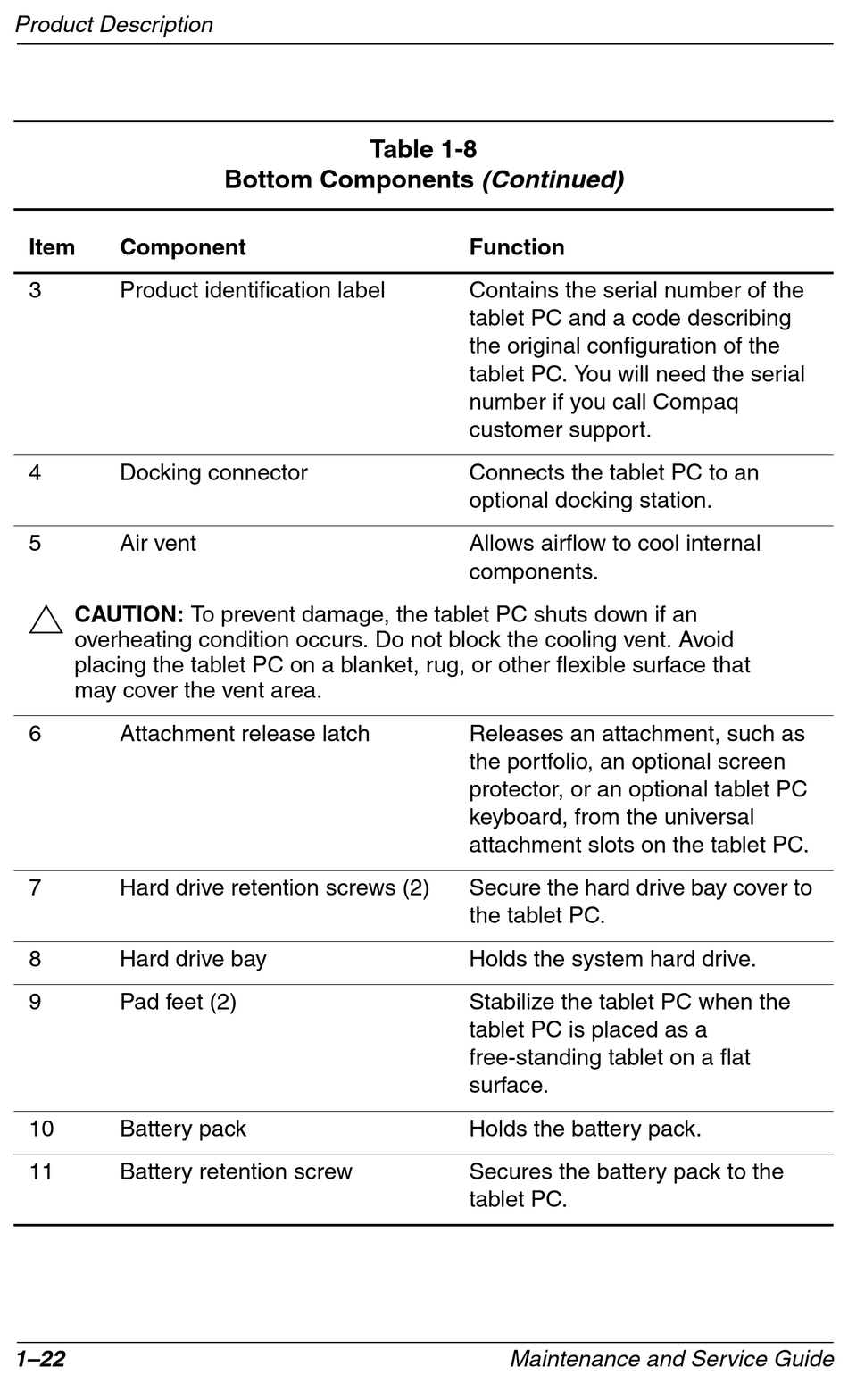

Product Description
Item Component
3 Product identification label
4 Docking connector
5 Air vent
Ä
CAUTION: To prevent damage, the tablet PC shuts down if an
overheating condition occurs. Do not block the cooling vent. Avoid
placing the tablet PC on a blanket, rug, or other flexible surface that
may cover the vent area.
6 Attachment release latch
7 Hard drive retention screws (2)
8 Hard drive bay
9 Pad feet (2)
10 Battery pack
11 Battery retention screw
1–22
Table 1-8
Bottom Components (Continued)
Function
Contains the serial number of the
tablet PC and a code describing
the original configuration of the
tablet PC. You will need the serial
number if you call Compaq
customer support.
Connects the tablet PC to an
optional docking station.
Allows airflow to cool internal
components.
Releases an attachment, such as
the portfolio, an optional screen
protector, or an optional tablet PC
keyboard, from the universal
attachment slots on the tablet PC.
Secure the hard drive bay cover to
the tablet PC.
Holds the system hard drive.
Stabilize the tablet PC when the
tablet PC is placed as a
free-standing tablet on a flat
surface.
Holds the battery pack.
Secures the battery pack to the
tablet PC.
Maintenance and Service Guide
