15. Disconnect the inverter board cable
(Figure 5-13).
16. Release the ZIF connector
cable is attached and disconnect the cable
17. Remove the tape
back of the display panel.

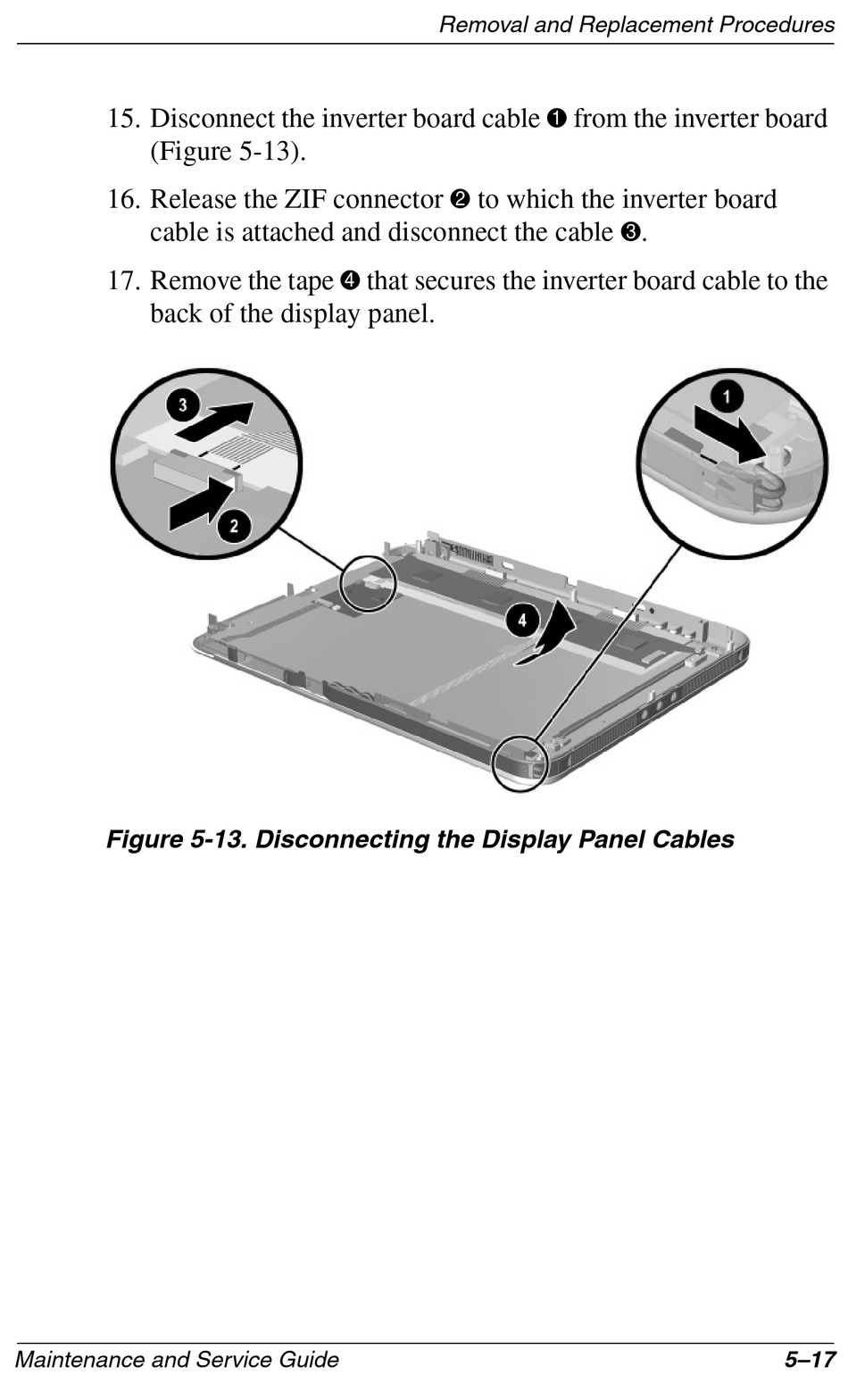

Figure 5-13. Disconnecting the Display Panel Cables
Maintenance and Service Guide
Removal and Replacement Procedures
2 to which the inverter board
4 that secures the inverter board cable to the
from the inverter board
1
3 .
5–17
