Intel Mobile Pentium
II processor
®
up to 400 MHz
AGP (Accelerated Graphics Port)
implementation
– 66-MHz graphics bus
– 4-MB SGRAM
64-MB SDRAM
–Expandable up to 256 MB
56K V.90
Modem
1
Up to a 28-GB
storage in
2
portable with second 14-GB
Hard
2
Drive
Integrated AC adapter
Convenient MultiBay design
3 spindle support with Armada
7400/7800 External Diskette Drive
option
Software:
–Choice of MS Windows 95 or MS
Windows NT Workstation 4.0
(SP3)
–Intelligent Manageability
–MS Internet Browser
Compaq Services, including a
three-year, Worldwide Limited
Warranty
with second business
3
day
expedited pick-up and repair
4
in North America
Q
S
UICK
PECS

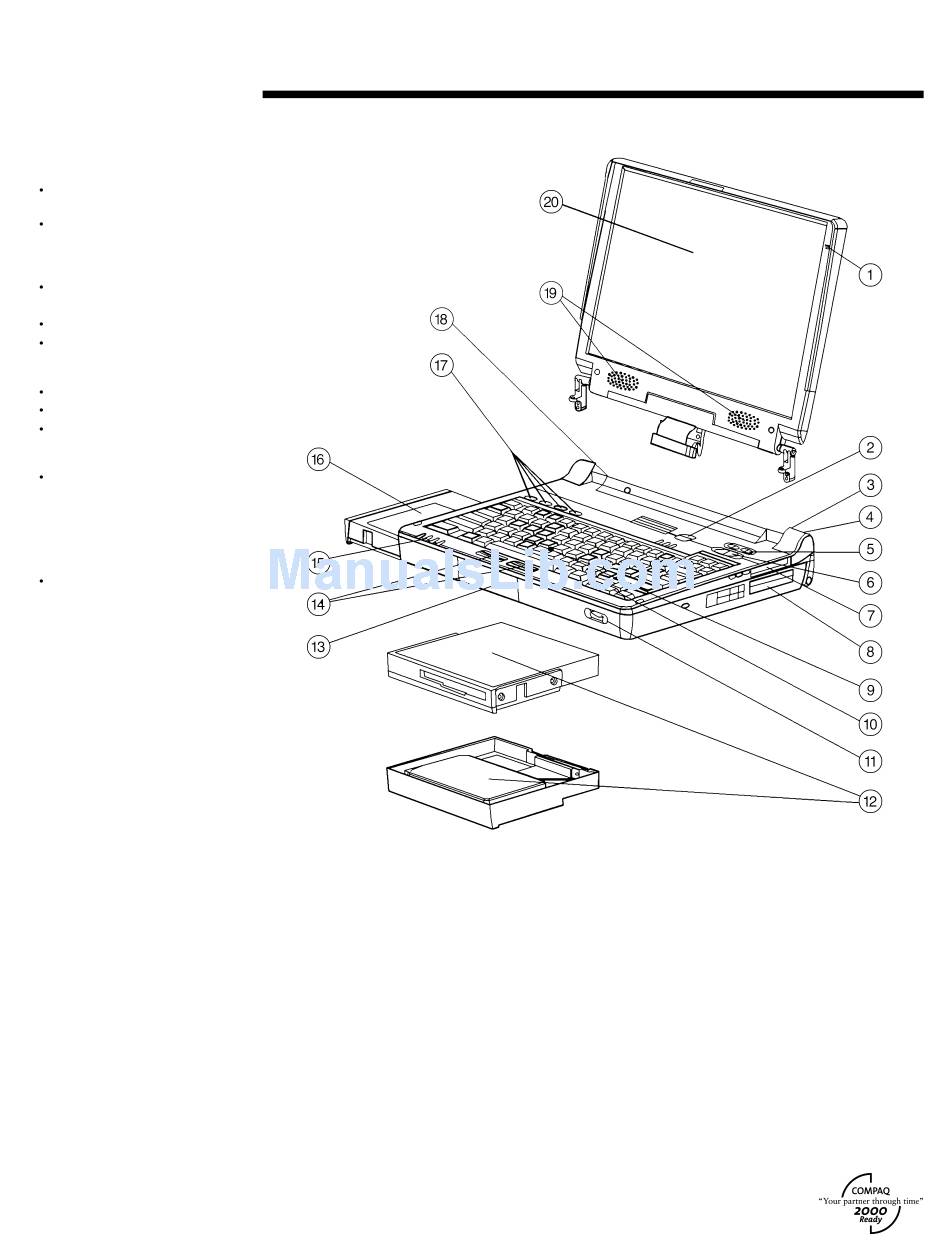

Overview
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
1. Microphone
. .
. .
2. Standby Button
. .
. .
3. RJ-11 Connector for integrated 56K
. .
. .
data/14.4 fax modem (modem model only)
. .
. .
4. USB Port
. .
. .
5. Volume Control and Mute Buttons
. .
. .
. .
6. Power Switch
. .
. .
7. 25-pin International DAA/Cellular Phone Connector
. .
. .
(modem models only/model dependent)
. .
. .
8. Two Type II/One Type III PC Card Slot(s) (zoomed
. .
. .
video in bottom slot); CardBus-capable
. .
. .
9. EasyPoint III Pointing Device
. .
. .
10. Keyboard with Dedicated Home, End, Page-up and
. .
. .
Page-down Keys and Inverted-T Cursor Keys
. .
. .
. .
. .
. .
. .
. .
1
DA-10016-01-003 — 12.03.1999
11. MultiBay DVD-ROM Drive
Drive ships standard with all models
12. Other MultiBay devices (Diskette Drive, second
or 33.6 Kb/s
5
Hard Drive are shown, also available second
Battery, SuperDisk LS-120 Drive and CD-ROM
Drive)
13. Removable SMART Hard Drive up to 14 GB
14. Pointing Device Buttons
15. Suspend/Power, Battery, Hard Drive and
MultiBay Status LEDs
16. Li-Ion Battery Pack
6
17. Four User-programmable Keys
18. Integrated AC Adapter (connector on back)
19. Stereo Speakers
20. 14.1-in Color TFT Display
Compaq Armada 7800
