SuperServer SYS-2029U-T Series User's Manual

Chassis Rear

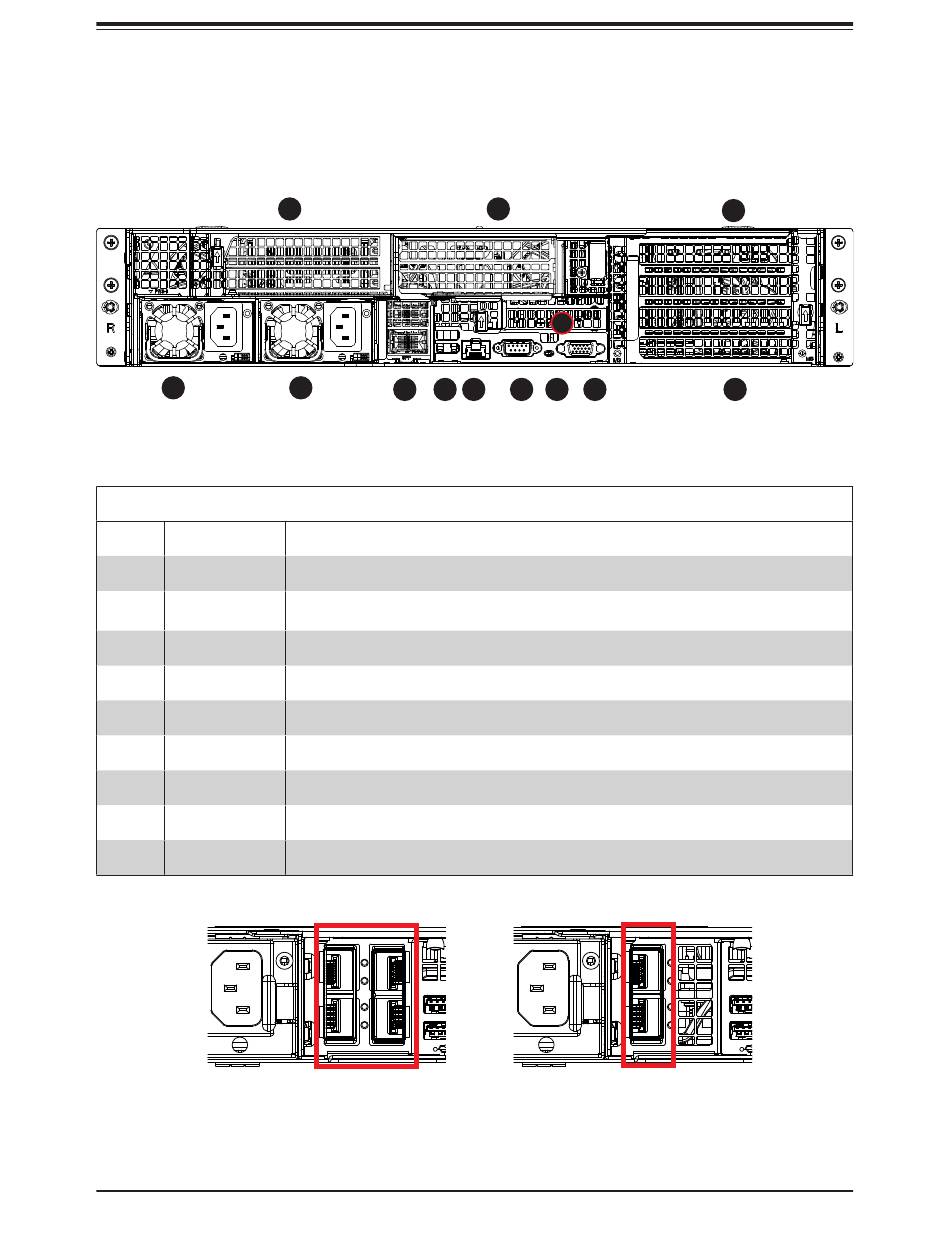

The illustration below shows the features included on the rear of the chassis. Power supply
modules display status lights.
1
Item Features
1 Power Supply
2 LAN
3 USB
4 BMC LAN
5 COM
6 UID
7 VGA
8 PCI
9 PCI
Two or four 1G/10G LAN Ports
9
1
2 3
Figure 1-4. Rear View
Chassis Rear Features
Description
Two redundant power supply modules, PWS1 on the left, PWS2 on the right
Two or four LAN ports, depending on your Ultra riser card (see Section 1.1
Overview for details; also see LAN numbering description below)
Two USB 3.0 ports
Dedicated LAN port for
Serial port
UID indicator and button to toggle the UID indicators
Video port
One PCIe low-profile slot
Six PCIe full-height slots
3 4
1 2
Figure 1-5. LAN Numbering
9
8
4 5 6 7
2
1
Two 25G LAN Ports
12
9
9
