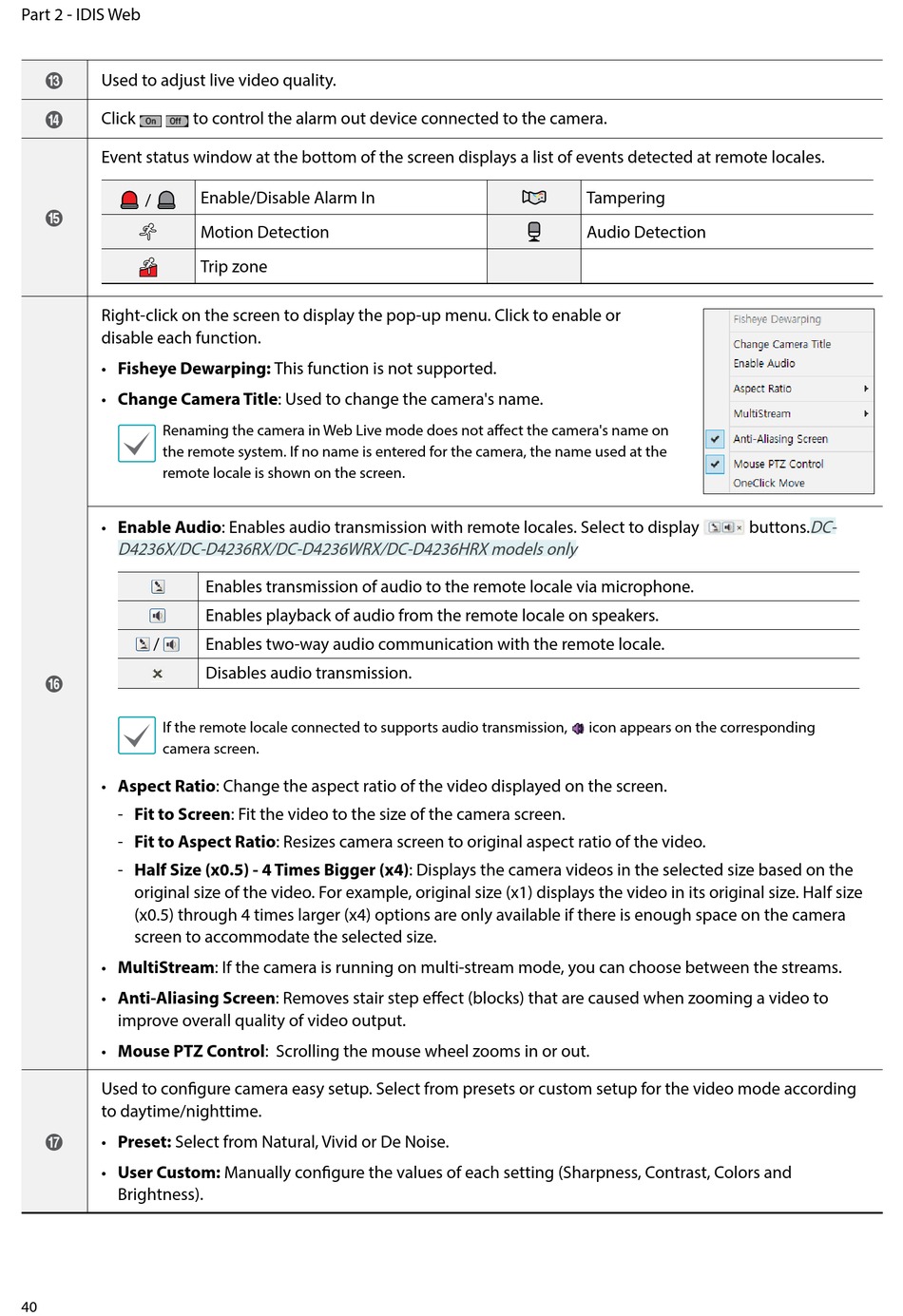

Direct IP Idis DC-D4236WRX Operation Manual page 40

Part 2 - IDIS Web
Used to adjust live video quality.
#
Click
$
Event status window at the bottom of the screen displays a list of events detected at remote locales.
TYPE 1 TYPE 1
/
%
Right-click on the screen to display the pop-up menu. Click to enable or
disable each function.
• Fisheye Dewarping: This function is not supported.
• Change Camera Title: Used to change the camera's name.
Renaming the camera in Web Live mode does not affect the camera's name on
the remote system. If no name is entered for the camera, the name used at the
remote locale is shown on the screen.
• Enable Audio: Enables audio transmission with remote locales. Select to display
D4236X/DC-D4236RX/DC-D4236WRX/DC-D4236HRX models only
/
^
If the remote locale connected to supports audio transmission,
camera screen.
• Aspect Ratio: Change the aspect ratio of the video displayed on the screen.
- Fit to Screen: Fit the video to the size of the camera screen.
- Fit to Aspect Ratio: Resizes camera screen to original aspect ratio of the video.
- Half Size (x0.5) - 4 Times Bigger (x4): Displays the camera videos in the selected size based on the
original size of the video. For example, original size (x1) displays the video in its original size. Half size
(x0.5) through 4 times larger (x4) options are only available if there is enough space on the camera
screen to accommodate the selected size.
• MultiStream: If the camera is running on multi-stream mode, you can choose between the streams.
• Anti-Aliasing Screen: Removes stair step effect (blocks) that are caused when zooming a video to
improve overall quality of video output.
• Mouse PTZ Control: Scrolling the mouse wheel zooms in or out.
Used to configure camera easy setup. Select from presets or custom setup for the video mode according
to daytime/nighttime.
• Preset: Select from Natural, Vivid or De Noise.
&
• User Custom: Manually configure the values of each setting (Sharpness, Contrast, Colors and
Brightness).
40
to control the alarm out device connected to the camera.
Enable/Disable Alarm In
Motion Detection
Trip zone
Enables transmission of audio to the remote locale via microphone.
Enables playback of audio from the remote locale on speakers.
Enables two-way audio communication with the remote locale.
Disables audio transmission.
TYPE 1
Tampering
Audio Detection
buttons.
icon appears on the corresponding
DC-
