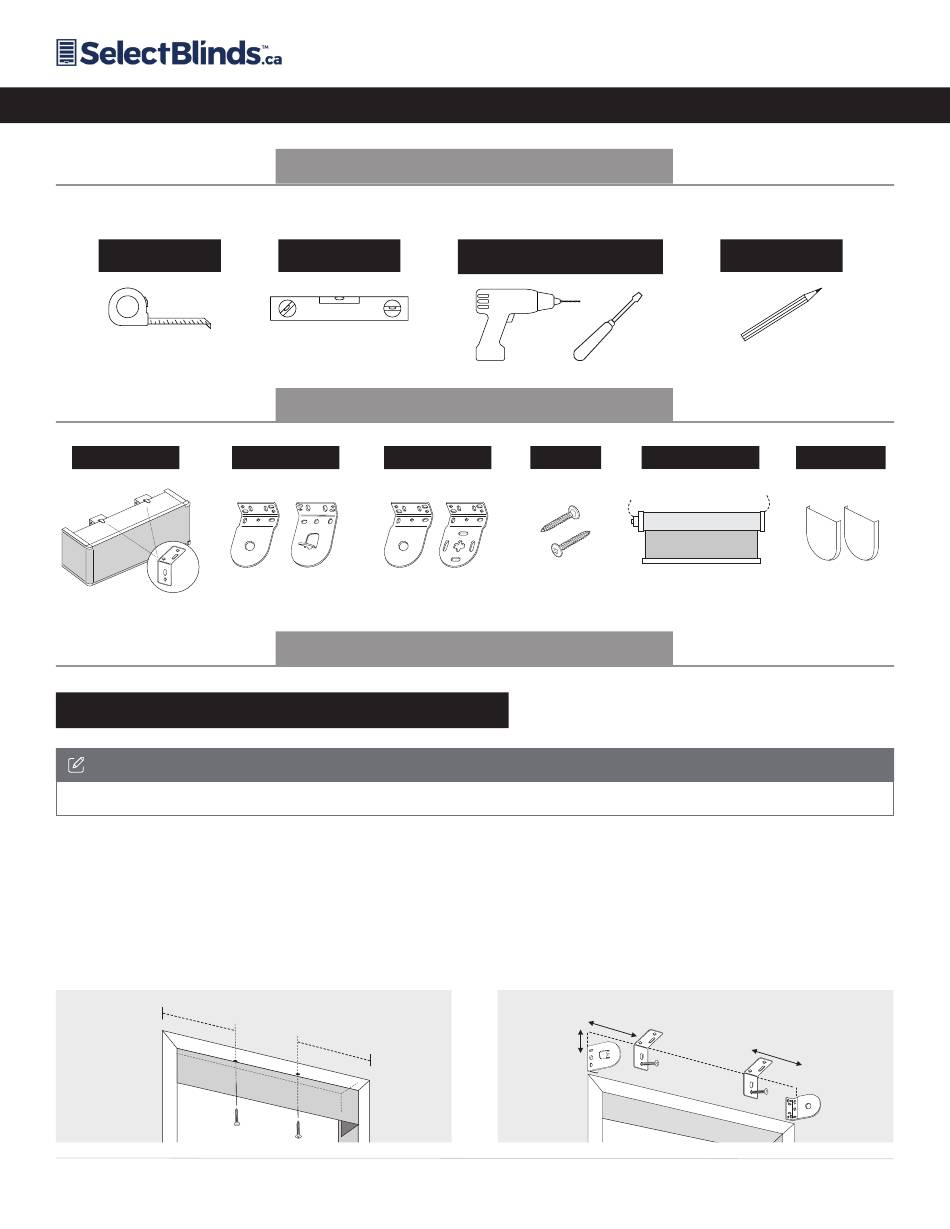

SelectBlinds OPEN ROLL Z-125 Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Tape Measure
Valance
If Ordered
SpringDrive | WandControl | E-Touch
x2
Idler-end
Bracket
*Note: Valance Returns are
optional
STEP 1 - VALANCE INSTALLATION (If Ordered)
NOTES
Valance must be installed as a first step before the Roller Shade. If you didn't order a Valance proceed to Step 2.
•
A - For INSIDE mount, divide valance width into
thirds and mark 2 screw holes on the underside
of the valance. Drill through cover to secure the
valance in place.
1/3
distance
©2022 Select Blinds
REQUIRED TOOLS FOR INSTALLATION
OPEN ROLL, MODELS Z-125 | Z-150
Level
COMES WITH YOUR ORDER
Shade Brackets
Shade Brackets
ChainGuard
Control-end
Idler-end
Bracket
Bracket
Bracket
ROLLER SHADE INSTRUCTIONS
1/3
distance
Power Drill / Screwdriver
Screws
Clutch-end
Bracket
B - For OUTSIDE mount, mark the location of the
shade mounting brackets with a pencil (see step 2),
and measure 1/2" from the top of the bracket to note
the location of the Valance bracket. Valance brackets
should be installed 5"-8" from each end of the valance.
Additional bracket(s) may be necessary and should
be evenly spaced between the two ends brackets if
required.
5"-8"
1/2"
Open Roll Installation Instructions
Pencil
Roller Shade
Idler side
Control Side
5"-8"
Open Roll Installation Instructions
End Caps
If Ordered
|
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPEN ROLL Z-125 and is the answer not in the manual?

Questions and answers

Related Manuals for SelectBlinds OPEN ROLL Z-125

Summary of Contents for SelectBlinds OPEN ROLL Z-125

  • Page 1 Open Roll Installation Instructions REQUIRED TOOLS FOR INSTALLATION OPEN ROLL, MODELS Z-125 | Z-150 Tape Measure Level Pencil Power Drill / Screwdriver COMES WITH YOUR ORDER Valance Shade Brackets Shade Brackets Screws Roller Shade End Caps If Ordered SpringDrive | WandControl | E-Touch ChainGuard If Ordered Idler side...

  • Page 2: Step 2 - Bracket Installation

    Open Roll Installation Instructions STEP 2 - BRACKET INSTALLATION NOTES • Before fully installing your brackets, note the difference Ordered Shade Width between the control and idler brackets. • In order to ensure the shade does not fall out of the brackets, it is critical that the idler pin is securely compressed by at least 1/4”...
  • Page 3 Open Roll Installation Instructions NOTES • Ensure fabric rolls in the direction you specified (regular or reverse roll) • Your control side depends on what you specified in your order Regular Roll Reverse Roll Fabric rolls off the back of the Fabric rolls off the front of tube, closest to the window the tube, into the room.
  • Page 4 Open Roll Installation Instructions STEP 4 - APPLIES TO CHAIN OPERATION ONLY CHILD/SAFETY CHAIN TENSIONER INSTALLATION This device MUST be properly installed in accordance with Health Canada regulations on corded window covering products. Fasten P-Clip against the window frame or wall. Position the P-Clip so it does not interfere with the travel of the shade.
  • Page 5 Cassette Installation Instructions REQUIRED TOOLS FOR INSTALLATION CASSETTE, MODELS S-300 | S-325 | V-80 | V-90 Tape Measure Level Pencil Power Drill / Screwdriver COMES WITH YOUR ORDER S-300 Brackets S-325 / V-80 / V-90 Brackets Screws Applications Roller Shades High-Lite Shades Sheer Horizontal Shade Width (“) # of Brackets Supplied...
  • Page 6 Cassette Installation Instructions S-300 Cassette S-325 Cassette V-80 Cassette V-90 Cassette 2 7/8” H x 3 1/8” W 3 1/8” H x 3 1/2” W 3 3/8” H x 3 1/8” W 5” H x 3 7/16” W STEP 2 - MOUNTING THE SHADE (S-300 | S-325) STEP 2 - MOUNTING THE SHADE (V-80 | V-90) Snap in Snap in...
  • Page 7 Cassette Installation Instructions STEP 4 - APPLIES TO CHAINGUARD ONLY CHILD/SAFETY CHAIN TENSIONER INSTALLATION This device MUST be properly installed in accordance with Health Canada regulations on corded window covering products. Fasten P-Clip against the window frame or wall. Position the P-Clip so it does not interfere with the travel of the shade.

  • Page 8: How To Operate

    Cordless Operating Instructions HOW TO OPERATE CAUTION: Do not lower the shade past the ordered length because damage may occur to the shade. SPRINGDRIVE To lower your shade, grasp the bottom bar (handle) from the centre-point and gently pull the shade down to desired position.
  • Page 9 Cordless Operating Instructions HOW TO OPERATE WANDCONTROL To operate your shade, gently pull down on the wand repeatedly until shade reaches desired position. If the shade operates in the opposite direction, securely dock the wand into the housing and twist the handle clockwise or counterclockwise until you hear a click. The click indicates change in direction.

  • Page 12: Smart Controller

    SMART CONTROLLER ENGLISH SETUP CODE System requirements CODE DE CONFIGURATION • A strong WiFi signal (3 bars or more) in the location where you will setup your Smart Controller. • The Smart Controller only supports 2.4GHz WiFi (IEEE 802 11b/g/n), not 5GHz. WiFi security needs to be set to WPA-PSK or L2019 WPA2-PSK.
