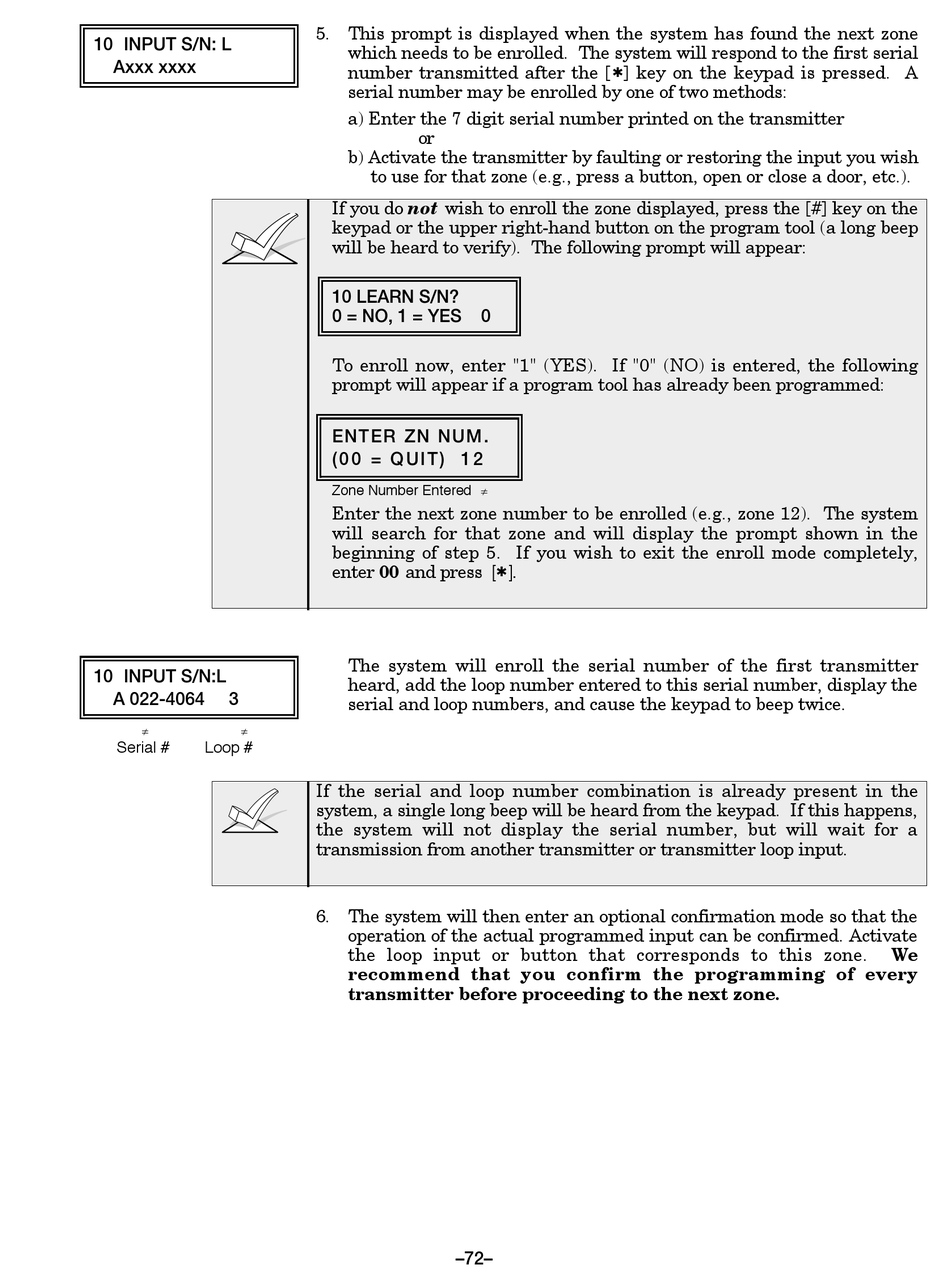

First Alert FA162C Installation Instructions Manual page 72

10 INPUT S/N: L
Axxx xxxx
10 INPUT S/N:L
A 022-4064 3
- -
Serial # Loop #
5. This prompt is displayed when the system has found the next zone
which needs to be enrolled. The system will respond to the first serial
number transmitted after the [ ] key on the keypad is pressed. A
serial number may be enrolled by one of two methods:
a) Enter the 7 digit serial number printed on the transmitter
or
b) Activate the transmitter by faulting or restoring the input you wish
to use for that zone (e.g., press a button, open or close a door, etc.).
If you do not wish to enroll the zone displayed, press the [#] key on the
keypad or the upper right-hand button on the program tool (a long beep
will be heard to verify). The following prompt will appear:
10 LEARN S/N?
0 = NO, 1 = YES 0
To enroll now, enter "1" (YES). If "0" (NO) is entered, the following
prompt will appear if a program tool has already been programmed:
ENT ER ZN NUM .
( 0 0 = Q UI T ) 1 2
Zone Number Entered -
Enter the next zone number to be enrolled (e.g., zone 12). The system
will search for that zone and will display the prompt shown in the
beginning of step 5. If you wish to exit the enroll mode completely,
enter 00 and press [ ].
The system will enroll the serial number of the first transmitter
heard, add the loop number entered to this serial number, display the
serial and loop numbers, and cause the keypad to beep twice.
If the serial and loop number combination is already present in the
system, a single long beep will be heard from the keypad. If this happens,
the system will not display the serial number, but will wait for a
transmission from another transmitter or transmitter loop input.
6. The system will then enter an optional confirmation mode so that the
operation of the actual programmed input can be confirmed. Activate
the loop input or button that corresponds to this zone.
recommend that you confirm the programming of every
transmitter before proceeding to the next zone.
–72–
We
