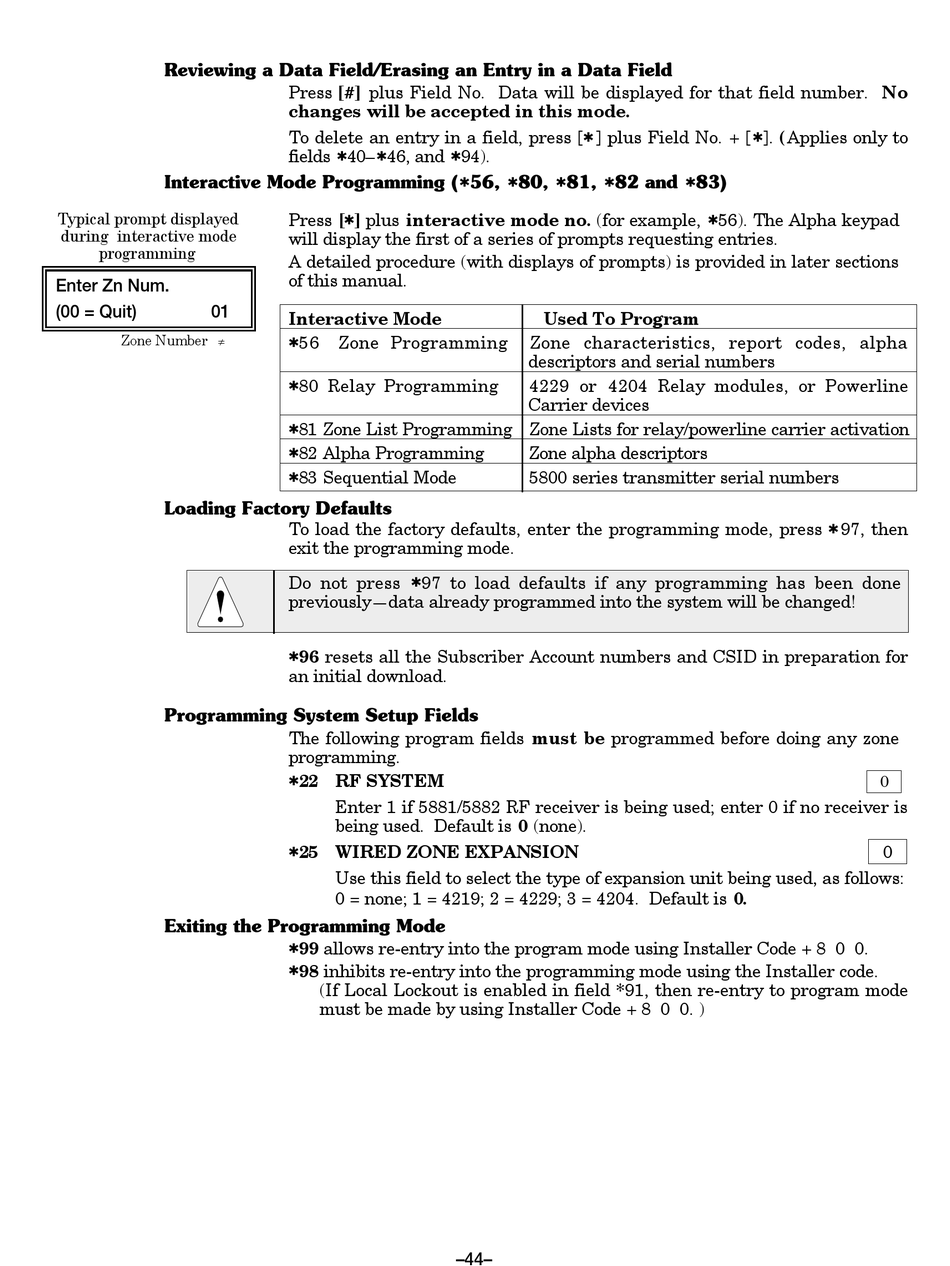

Reviewing a Data Field/Erasing an Entry in a Data Field

Interactive Mode Programming ( 56, 80, 81, 82 and 83)
Typical prompt displayed
during interactive mode
programming
Enter Zn Num.
(00 = Quit) 01
ÊZone Number -

Loading Factory Defaults

Programming System Setup Fields

Exiting the Programming Mode

Press [#] plus Field No. Data will be displayed for that field number. No
changes will be accepted in this mode.
To delete an entry in a field, press [ ] plus Field No. + [ ]. (Applies only to
fields 40Ð 46, and 94).
Press [ ] plus interactive mode no. (for example, 56). The Alpha keypad
will display the first of a series of prompts requesting entries.
A detailed procedure (with displays of prompts) is provided in later sections
of this manual.
Interactive Mode
56 Zone Programming
80 Relay Programming
81 Zone List Programming Zone Lists for relay/powerline carrier activation
82 Alpha Programming
83 Sequential Mode
To load the factory defaults, enter the programming mode, press
exit the programming mode.
Do not press 97 to load defaults if any programming has been done
previouslyÑdata already programmed into the system will be changed!
96 resets all the Subscriber Account numbers and CSID in preparation for
an initial download.
The following program fields must be programmed before doing any zone
programming.
22 RF SYSTEM
Enter 1 if 5881/5882 RF receiver is being used; enter 0 if no receiver is
being used. Default is 0 (none).
25 WIRED ZONE EXPANSION
Use this field to select the type of expansion unit being used, as follows:
0 = none; 1 = 4219; 2 = 4229; 3 = 4204. Default is 0.
99 allows re-entry into the program mode using Installer Code + 8 0 0.
98 inhibits re-entry into the programming mode using the Installer code.
(If Local Lockout is enabled in field *91, then re-entry to program mode
must be made by using Installer Code + 8 0 0. )
–44–
Used To Program
Zone characteristics, report codes, alpha
descriptors and serial numbers
4229 or 4204 Relay modules, or Powerline
Carrier devices
Zone alpha descriptors
5800 series transmitter serial numbers
97, then
ÊÊ0ÊÊ Ê
ÊÊ0ÊÊ
