Wiring Connections

4300 TRANSFORMER/INTERFACE
TERMINALS
ON CONTROL
BOARD
Programming Relay Outputs
1. Splice one end of a 3-conductor cable to the wire ends of the 4142TR cable
supplied with the 4300 transformer.
2. Connect the 4142TR cable plug to the 9-pin connector on the control (see
SUMMARY OF CONNECTIONS diagram for location of the 9-pin
connector).
3. Connect the other end of the 3-conductor cable to the 4300 transformer, as
indicated in the table below and in the diagram that follows.
4300 TRANSFORMER WIRE CONNECTIONS
4300 Terminal
1Ê(AC)
2Ê(Ground)
3Ê(AC)
4300 Terminal
4Ê(Sync)
5Ê(Data)
6Ê(Com)
Earth
AC Ground AC Sync Data Com
1 2 4
3 5 6
1 25 2

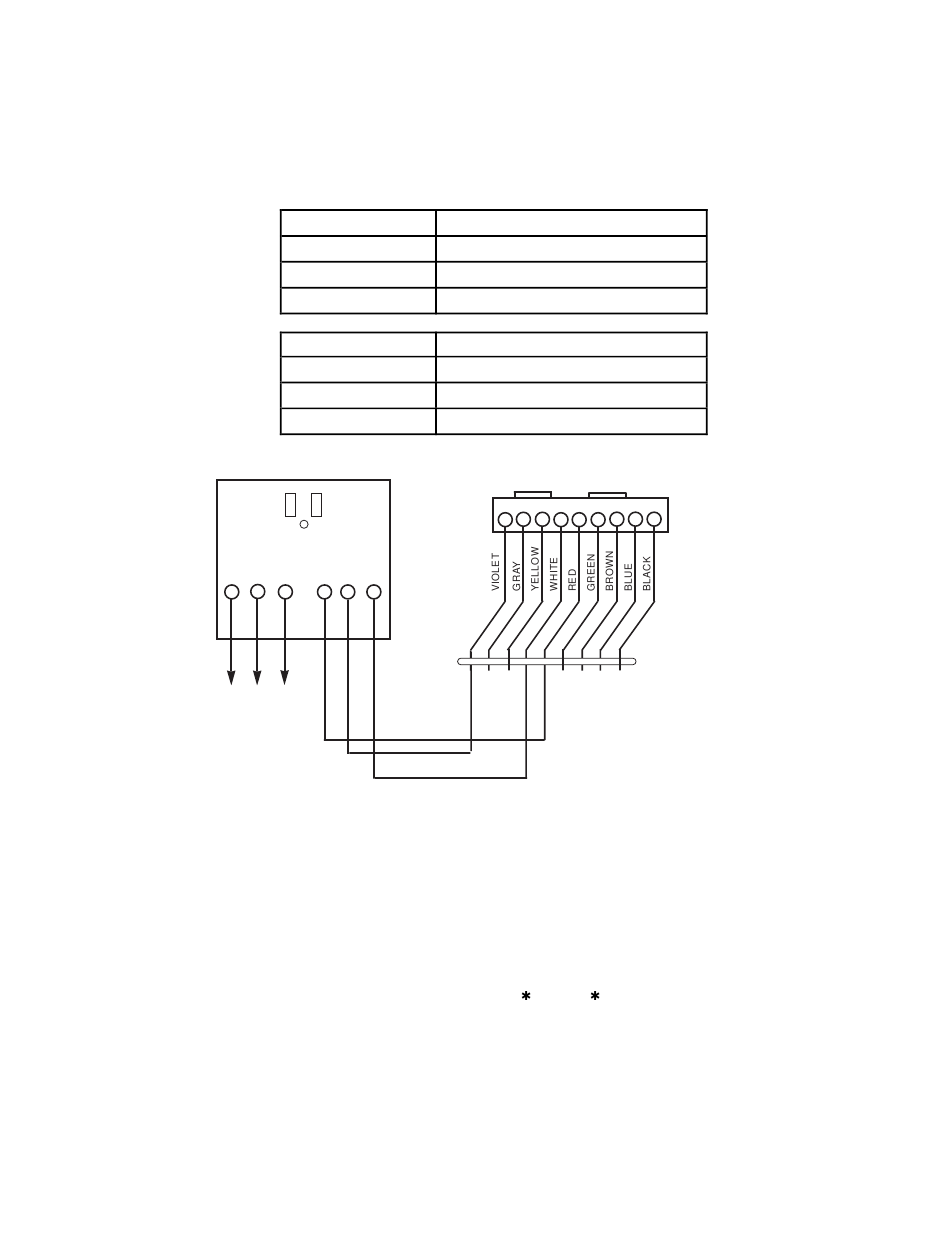

Figure 15. 4300 Transformer Wiring Connections
In this system, each device must be programmed as to how to act (ACTION),
when to activate (START), and when to deactivate (STOP). Refer to the
programming procedures for 80 and 81 interactive modes that are provided
in the programming sections of this manual for specific programming details.
To Terminal On Control
1ÊÊ(16.5V AC in)
25ÊEarth Ground terminal
2ÊÊ(16.5V AC in)
4142TR Cable Wire
RED (Pin 5 of 9-pin connector)
VIOLET (Pin 1 of 9-pin connector)
WHITE (Pin 4 of 9-pin connector)
1 2 3 4 5 6 7
THESE WIRES (7, 8, 9) NOT USED,
UNLESS 4146 KEYSWITCH
IS ALSO USED
–31–
8 9
9-PIN CONNECTOR
ON CONTROL BOARD
4142TR CABLE
