Powerline Carrier Devices; Figure 13.Êê4229 Connections To Control; Figure 14.Êê4204 Connections To Control - First Alert FA162C Installation Instructions Manual

RELAY
CONNECTOR
RLY
2
RELAYS

Powerline Carrier devices

U L
RELAY
2
}
RELAY
1
NO C NC
}
TAMPER JUMPER POSITION
4229 IN CABINET
(NOT TAMPERED)
4229 REMOTE
(TAMPER PROTECTED)
1 2
RLY
REED
1
(TAMPER)
SWITCH
"OFF"
1K
A
ZONES:

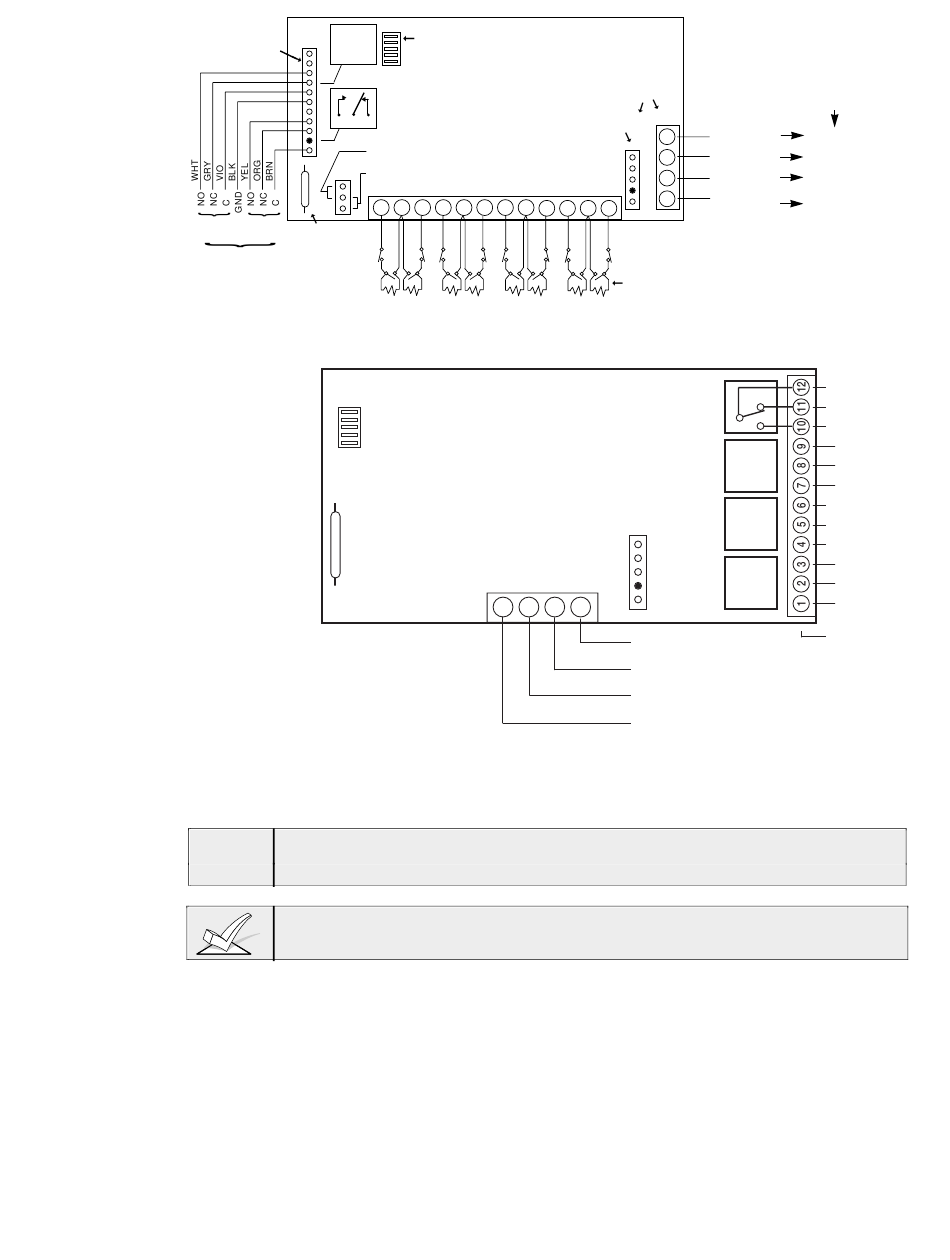

Figure 13. 4229 Connections to Control
4204
DIP SWITCH
FOR SETTING DEVICE ADDRESS
AND ENABLING/DISABLING TAMPER
COVER TAMPER (REED) SWITCH
Powerline Carrier devices and the 4300 transformer are not UL Listed for
fire or burglary functions and are intended for home automation.
When using Powerline Carrier devices, you must use a 4300 transformer
instead of the 1321 transformer.
The 4300 transformer provides AC power to the control panel, and also
supplies signals from the control panel through the premises AC wiring to the
Powerline Carrier devices (which are plugged into AC outlets). Devices
plugged into Powerline Carrier devices can then be made to perform various
functions in response to commands entered at the keypads in the security
system.
DIP SWITCH
FOR SETTING ADDRESS
AND ZONE "A" RESPONSE
EITHER OR BOTH CAN BE USED
4-PIN CONSOLE PLUG
TB1
3 4 5 6 7 8 9 10 11 12
B C D E F G
4-PIN CONSOLE PLUG
EITHER OR BOTH
CAN BE USED
TB1
13 14 15 16
YEL
BLK
GRN
RED
Figure 14. 4204 Connections to Control
–30–
4229
TB2
GRN DATA OUT
4
TO CONTROL
BLK
(–) GROUND
4 3
3
RED
(+) 12V
2
2
YEL DATA IN
1
1
FROM
CONTROL
TERMINATE EACH
PROGRAMMED ZONE
WITH 1000 OHM (1K)
END-OF-LINE RESISTOR
(EACH ZONE'S MAX.
LOOP RESISTANCE:
300 OHMS + E.O.L.)
H
RELAY 4
TYPICAL
(SHOWN "OFF")
RELAY
3
RELAY
2
RELAY
1
DATA IN
FROM CONTROL
(–) GROUND
DATA OUT
TO CONTROL
(+) 12V
TERMINALS ON
CONTROL PANEL
(TERM 6)
(TERM 4)
(TERM 5)
(TERM 7)
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
TB2
