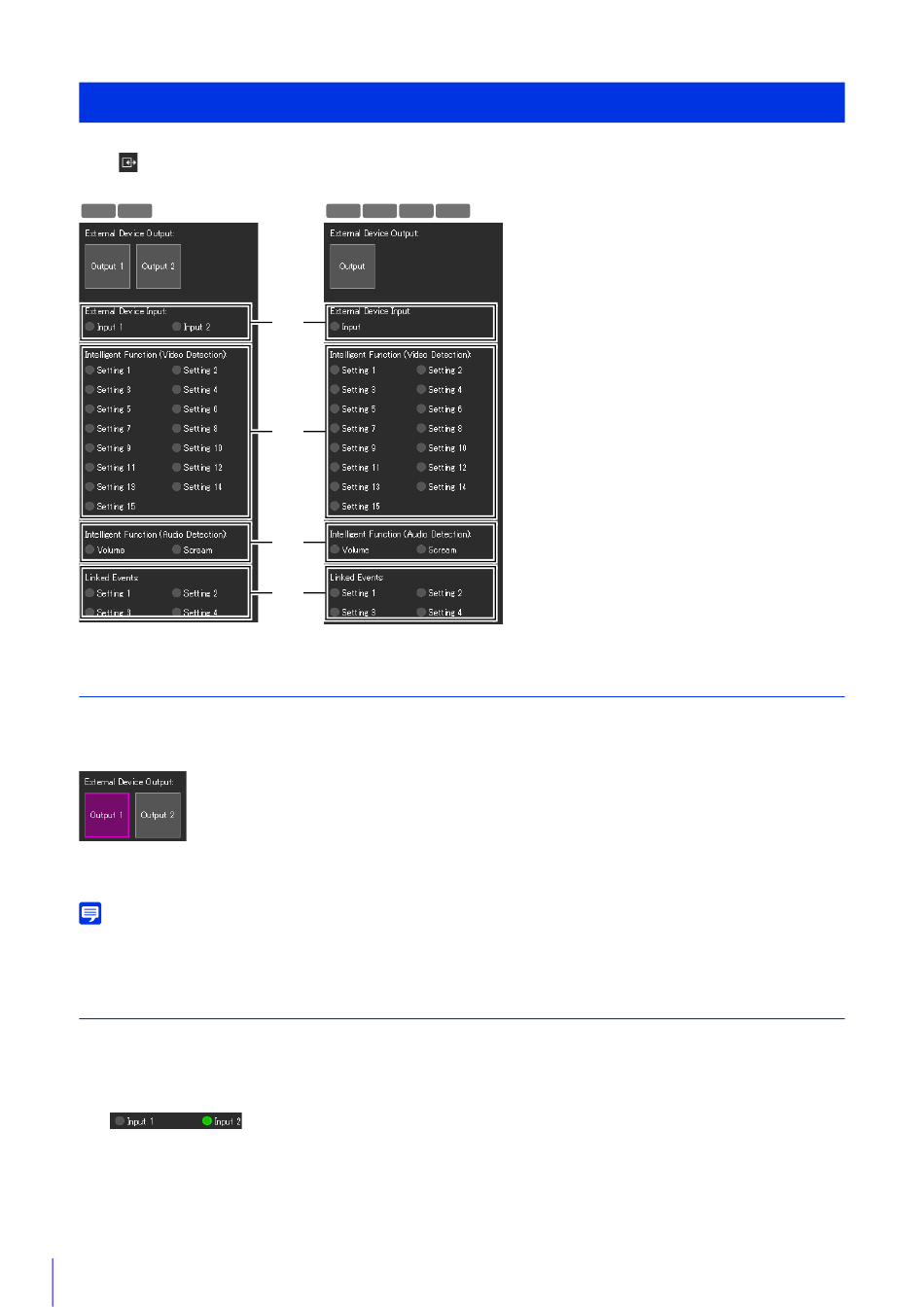

Checking the Status of Event Detection

In the [Event and Input/Output] menu, you can operate the output of an external device and check the status of input of
the external device, detection of intelligent functions, and occurrence of linked events.
HM4x H730

Operating External Device Output

You can operate output for the external device set in [Event] > [External Device] (P. 149) on the Setting Page.
Click the icon to switch between the active (purple)/inactive (gray) status.
Example:
Output 1: Output active
Output 2: Output inactive
Note
To operate [External Device Output] output, it is necessary to obtain camera control privileges.
Checking the Status of Event Detection
(1) [External Device Input]
Displays the input status of the external device set in [Event] > [External Device] (P. 150) on the Setting Page.
When a contact input signal is received from an external device, input will be activated and the icon becomes green.
Example:
Input 1: Input inactive
Input 2: Input active
72
S30 S31 S80x S90x
(1)
(2)
(3)
(4)
