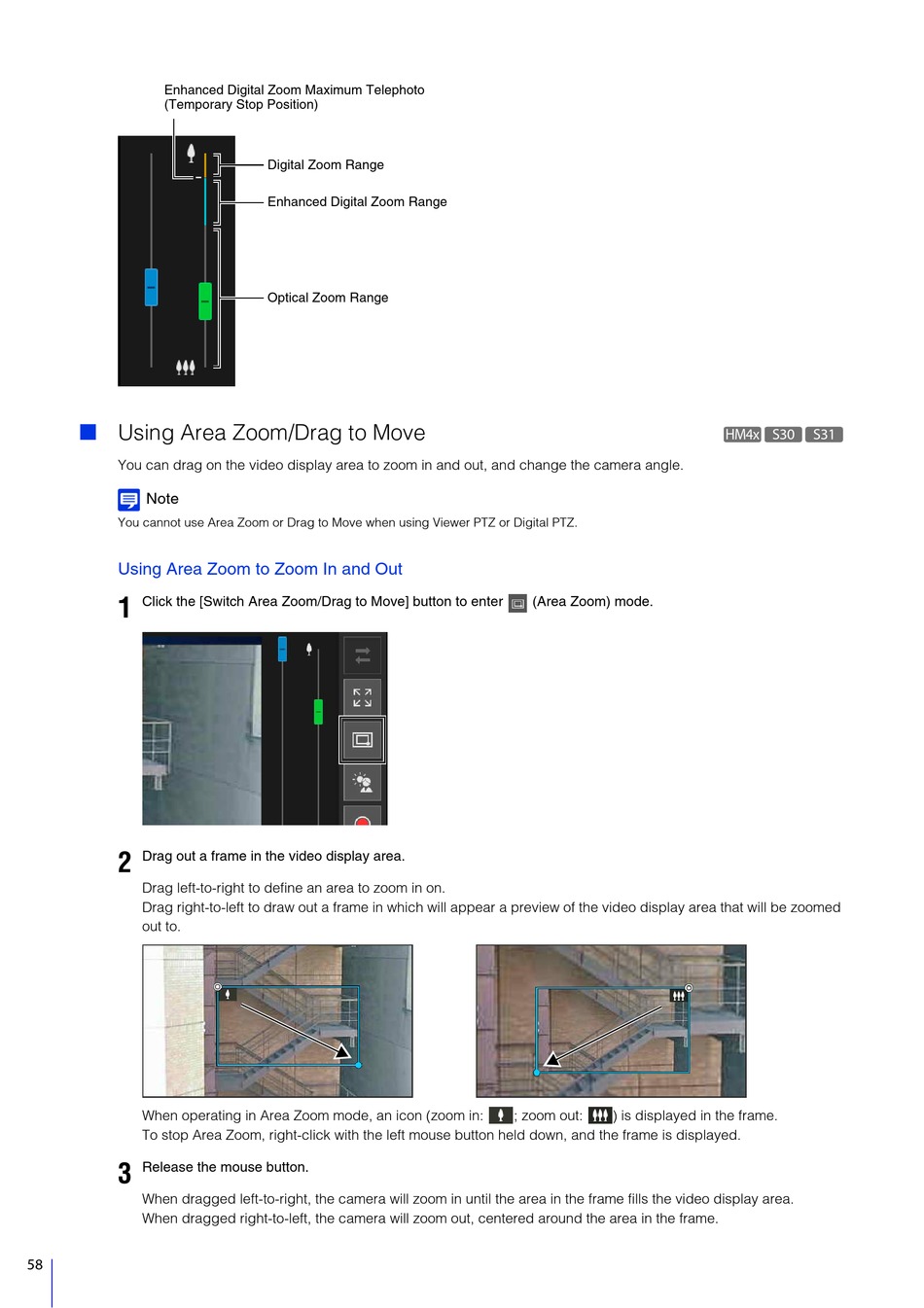

Canon VB-R13VE H2 Manual page 76

Enhanced Digital Zoom Maximum Telephoto
(Temporary Stop Position)

Using Area Zoom/Drag to Move
You can drag on the video display area to zoom in and out, and change the camera angle.
Note
You cannot use Area Zoom or Drag to Move when using Viewer PTZ or Digital PTZ.
Using Area Zoom to Zoom In and Out
Click the [Switch Area Zoom/Drag to Move] button to enter
1
Drag out a frame in the video display area.
2
Drag left-to-right to define an area to zoom in on.
Drag right-to-left to draw out a frame in which will appear a preview of the video display area that will be zoomed
out to.
When operating in Area Zoom mode, an icon (zoom in:
To stop Area Zoom, right-click with the left mouse button held down, and the frame is displayed.
3 Release the mouse button.
When dragged left-to-right, the camera will zoom in until the area in the frame fills the video display area.
When dragged right-to-left, the camera will zoom out, centered around the area in the frame.
58
Digital Zoom Range
Enhanced Digital Zoom Range
Optical Zoom Range
(Area Zoom) mode.
; zoom out: ) is displayed in the frame.
