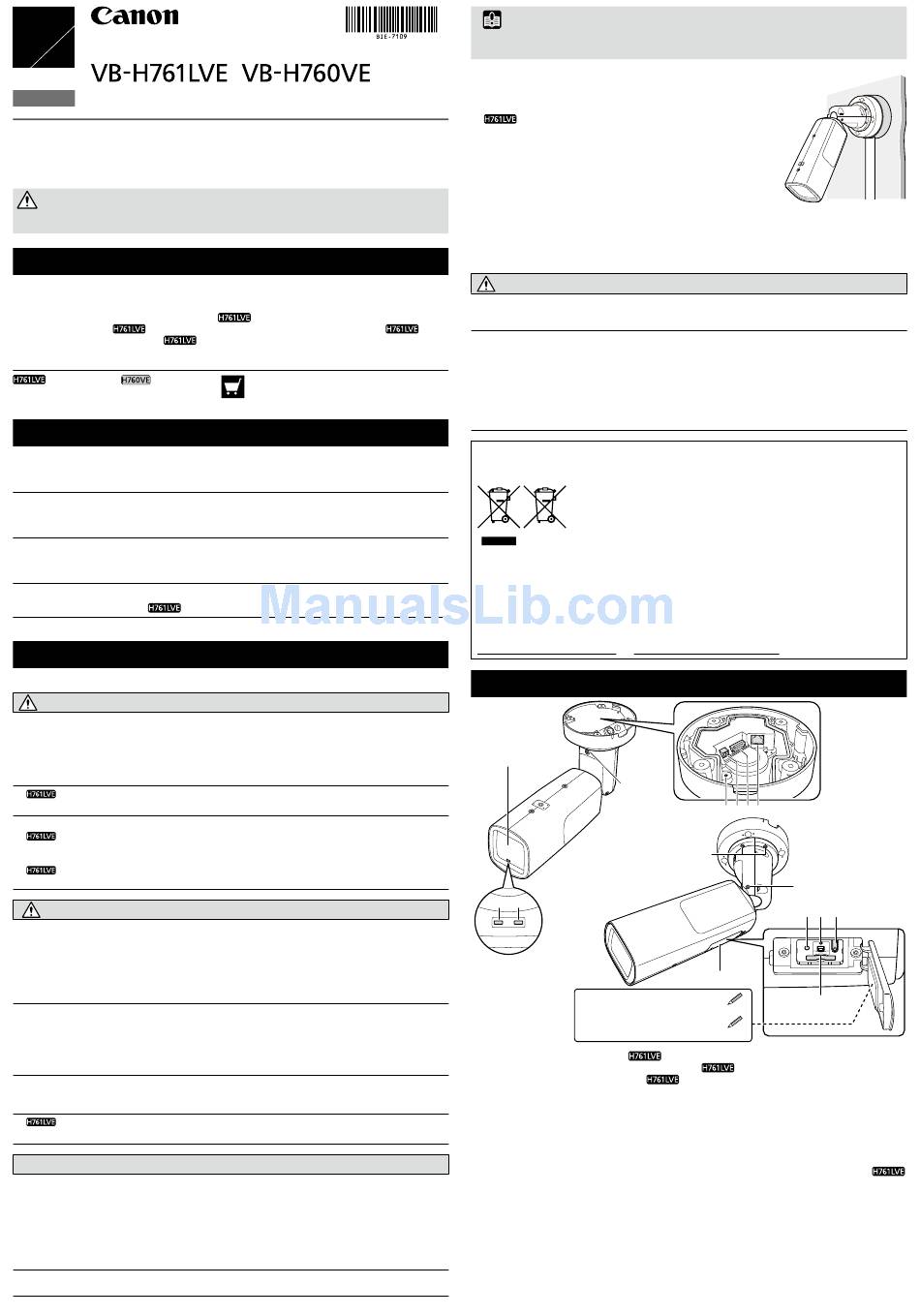

Installation Guide

ENGLISH
This Installation Guide is comprised of pages [1/2] and [2/2]. Please be sure to read the
"Safety Precautions" section for correct use. After reading this Installation Guide, keep it
in a readily accessible location for future reference.
* Some cameras are not available in certain countries or regions.
Caution
Request a professional installer for all installation work. Never try to install
the camera yourself. Doing so may result in unforeseen accidents such as
dropping the camera or electric shock.
Check Included Items
Camera, Screws (M4) x 4
Template
Setup CD-ROM
Warranty Card
Waterproof packing
Safety Wire, Screws (M3) x 1
I/O & Audio Interface Cable (BK2-0057-000)
GND Screw (M3) x 1
LAN Cable Cap
Waterproofing explanation sheet
Symbols used in this Installation Guide
: VB-H761LVE
: VB-H760VE
Accessories
The following accessories can be purchased separately as necessary. Some accessories are
not available in certain countries or regions.
Conduit Box CB740-VB
Dedicated accessory used to protect wiring cables that cannot be stored above the ceiling.
This can be attached to the composite pipe.
Pendant Mounting Kit PC640-VB
Dedicated accessory used to install the camera to the end of pipe that extends from high ceilings,
such as in big-box stores.
Weather Shield WS700-VB
Dedicated accessory to protect the main camera from rain.
Canon AC Adapter PA-V18
Dedicated AC adapter for this camera.
Safety Precautions

Installation Precautions

Warning
Failure to follow the instructions may result in death or serious injury.
Do not install in the following places:
• Places in strong direct sunlight, near heat-generating objects, or locations subject to high temperatures
• Places near fire sources or flammable solvents (alcohol, thinner, fuel, etc.)
• Places subject to oily smoke or steam
• Confined or enclosed places
Failure to do so may result in fire or electric shock.
Insulate the ends of cables you are not using.
Failure to insulate may result in fire or electric shock.
Notes on Power Supply
Only use the dedicated AC adapter (sold separately) for AC power.
• Do not set any heavy objects on the power cable (or the LAN cable for a PoE+/PoE power supply).
• Do not pull, forcibly bend, scratch, or modify the power cable (or the LAN cable for a PoE+/PoE power supply).
Do not cover or wrap the AC adapter (sold separately) with cloth or blankets.
Failure to do so may result in fire or electric shock.
Caution
Failure to follow the instructions may result in injury.
For installation or inspection of this camera, consult the dealer where you purchased the product.
• This installation should be made by a qualified service person and should conform to all local codes.
• When installing, make sure the surface is capable of withstanding the total weight of the camera and
accessories, and sufficiently reinforce if necessary.
• Be sure to use installation screws designed for the type of surface the camera is to be installed.
• Periodically check the parts and screws for rust and loosening, in order to prevent injuries and
equipment damage due to falling items.
• Do not install in unstable places, places subject to significant vibration or impact, or places subject to
salt damage or corrosive gas.
• Do not install in places subject to strong winds.
• Do not install where snow can accumulate directly on the camera.
• Be sure to attach the safety wire when installing the camera.
Failure to do so may result in the camera falling or other accidents.
• Do not touch the edges of metal parts with bare hands.
• Be careful not to get your fingers caught when installing.
Failure to do so may result in injuries.
Avoid looking directly at the infrared illumination at close distances for long periods of time.
Intense infrared illumination can cause eye damage.
Caution
Failure to follow the instructions may result in property damage.
• Do not install on an unstable surface.
• To maximize shock resistant specifications, do not install on insufficiently strong surfaces or surfaces
subject to significant vibration.
• After turning off the power, do not turn the power on again for at least five seconds.
• Take measures to remove static electricity before performing any procedures.
• If there is condensation, please wait to power on, until the condensation dissipates.
• Please waterproof and dust-proof camera, when installing outdoors.
Failure to do so may result in malfunctions.
• Take care not to damage wiring or piping.
Failure to do so may result in damage to peripheral items.
The contents of this guide are subject to change without any prior notice.
/
Installation Guide (This document)
Ceiling Plate
Dedicated wrench
Waterproofing Tape
Zip Tie (for LAN cable)
Parts indicated in the Installation Guide
[2/2] with this icon are not included with the
camera, and should be provided by the user.
Important
We recommend the installation of a lightning arrester (a surge protection device) as a measure against
failures caused by lightning strikes. Please refer to our website for details.
Precautions for Installing the Camera Outdoors
When installing the camera outdoors, observe the following
precautions to retain waterproof/dustproof capabilities.
Completely wrap the cable connections and the ends
of cables you are not using, including the connectors, with
waterproof tape up to the cable jacket, so as not to allow water
to enter. Please refer to the waterproofing explanation sheet for
details on how to wrap the waterproofing tape.
• When mounting the camera onto a wall or other upright surface,
make sure that the cables and composite pipe are facing down
to prevent rain infiltration.
• If wiring by connecting the camera to the composite pipe, bridge the gap using the conduit
box (sold separately). When connecting the conduit box and the pipe, apply silicon sealant
to seal it tightly after attaching the pipe to prevent water getting in as necessary.

Precautions for Use

Warning
Failure to follow the instructions may result in death or serious injury.
• If you discover defective conditions such as smoke, strange sounds, heat or strange odors,
immediately stop using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
• If thunder starts, stop installation or inspection etc. and do not touch the camera or continue connecting the cable.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable.
• Do not insert foreign objects such as water or metal into the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables, external power supply, or the power connector for the AC adapter (sold
separately) connected when the camera is not in use for long periods.
• Do not use flammable solvents such as alcohol, paint thinner or benzine when cleaning the camera.
Failure to do so may result in fire or electric shock.
Only for European Union and EEA (Norway, Iceland and Liechtenstein)
These symbols indicate that this product is not to be disposed of with your household waste,
according to the WEEE Directive (2012/19/EU), the Battery Directive
(2006/66/EC) and/or national legislation implementing those Directives.
If a chemical symbol is printed beneath the symbol shown above, in accordance
with the Battery Directive, this indicates that a heavy metal (Hg = Mercury,
Cd = Cadmium, Pb = Lead) is present in this battery or accumulator at a
concentration above an applicable threshold specified in the Battery Directive.
This product should be handed over to a designated collection point, e.g., on an authorized one-
for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper
handling of this type of waste could have a possible impact on the environment and human health
due to potentially hazardous substances that are generally associated with EEE. Your cooperation
in the correct disposal of this product will contribute to the effective usage of natural resources.
For more information about the recycling of this product, please contact your local city
office, waste authority, approved scheme or your household waste disposal service or visit
www.canon-europe.com/weee, or www.canon-europe.com/battery.
Part Names
1
4
2
3
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
1. Lens protector / 2. LED (Orange
5. GND screw hole / 6. Power connection terminal
7. I/O & Audio combination connector
9. Pan (P) lock screw / 10. Tilt (T)/Rotation (R) lock screw / 11. Memory card cover /
12. Reboot switch / 13. LED (Blue)*
/ 14. Reset switch*
1
*
On: when powered on, during reboot, during normal use / Off: when [Turn Off] is selected
1
(please refer to the "Operation Guide")
*
Please refer to the "Operation Guide" for the method to reset the camera.
2
When the temperature within the camera is low (heater activated)
When the unit is powered by a 24 V AC/ PoE+ power source, the heater unit can be used.
The heater unit's orange LED will automatically turn on. This LED near the camera's lens will
continue to be lit up, until the camera has warmed up enough to start transferring video.
Once the temperature within the camera has reached the level where it can transfer the video
once again, the orange LED will turn off.
When there is condensation on the lens protector after being turned on
Condensation can occur on the inside of the lens protector, when the power has been turned on
for the first time after installation, or after not being turned on for a long time. The condensation
will dissipate after the power has been left on a while (this may take more than a day at the
longest), please wait to use the camera until you can confirm that the image is correctly visible.
5
6
7
8
9
10
12 13 14
11
15
) / 3. LED (Blue)*
1
/ 4. PTR lock screw /
/
/ 8. 100Base-TX LAN connector /
/ 15. Memory card slot
2
