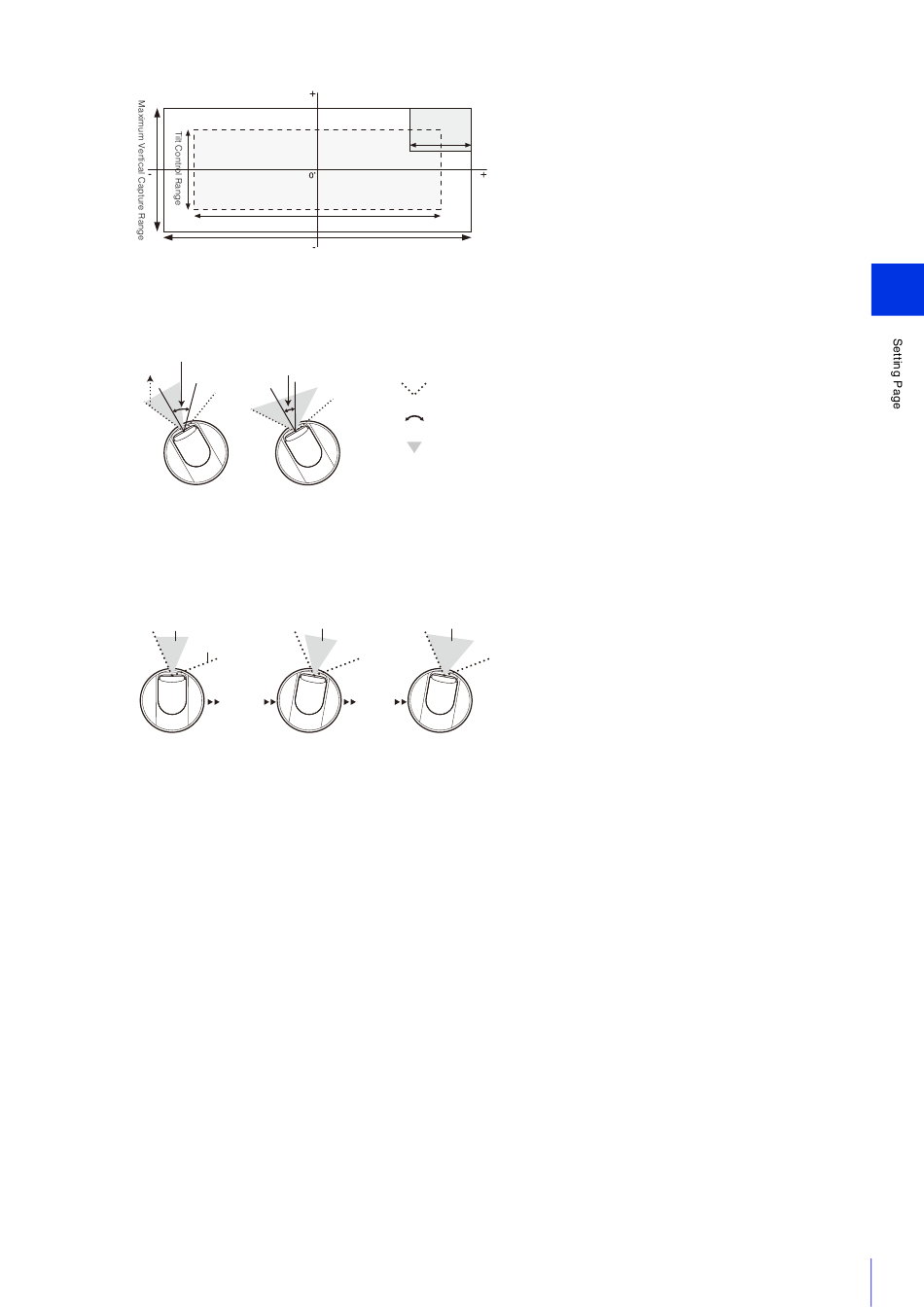

Pan Control Range
Maximum Horizontal Capture Range
• The pan and tilt ranges vary depending on the zoom ratio (view angle).
Setting view restrictions When using wide-angle, the camera
automatically restricts operating angle would allow capture outside
the camera operating the view restrictions if the angle remained the
angle. same. Therefore, it is narrowed automatically.
Camera
• If the view restriction will be exceeded as a result of zooming toward wide-angle, the camera will first pan and tilt to a position
where the maximum wide-angle zoom will be within the viewing restriction area. Wide-angle zoom control will then be enabled
within the view restriction area.
First, the center of the
maximum wide-angle
zoom is panned and
Captured video
tilted.
Restricted view angle
Zoom
out
• Narrowing the view restriction may also reduce the zoom range.
Maximum Wide-angle Viewing Angle
Restricted view angle
Camera operating angle
Captured video range
After panning and
tilting, wide-angle
zoom control is
enabled within the
view restriction.
Zoom
out
