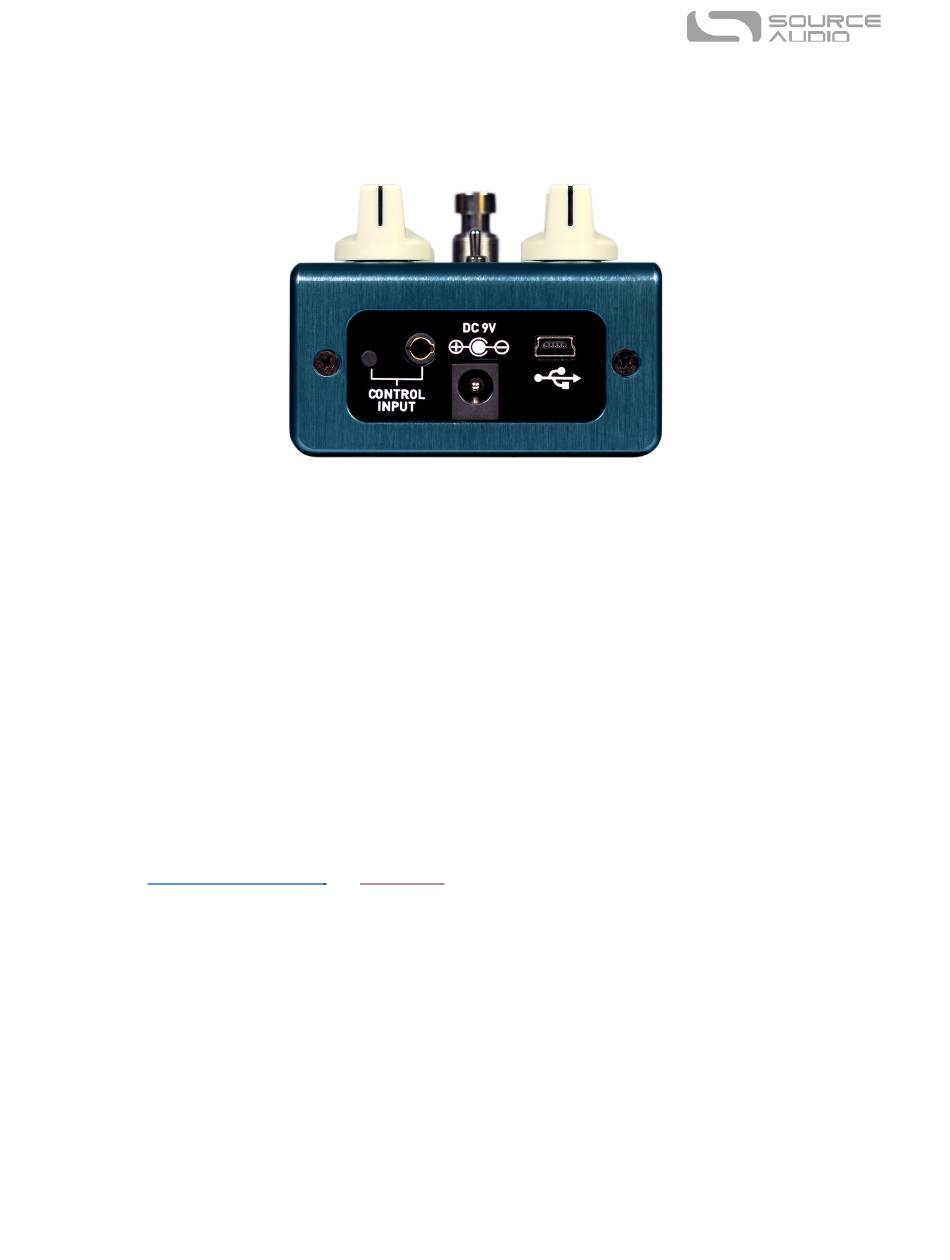

Power and Control Connections
DC 9V (Power)
Connect to the included 9 Volt DC power supply. If you would like to use a 3
power supply must be regulated at 9 Volts DC (direct current), able to source at least 160 mA
(milliamps) of current, and the plug should have a tip-negative, barrel-positive polarity.
USB
Connect to your computer (Windows or Mac) or mobile device (Android or iOS) to the Atlas's USB
port (denoted by the icon) using a standard USB mini-B cable. The Atlas is a class compliant USB
device, meaning that it does not require any custom drivers.
CONTROL INPUT
The 3.5 mm CONTROL INPUT port connects to external control devices such as the Source Audio Tap
Tempo Switch, Source Audio Dual Expression Pedal, and the Neuro Hub. For more information, refer
to the
Expression Pedal Input
SA252
and
Neuro Hub
sections of the User's Guide.
Atlas Compressor User Guide
-party supply, the
rd
7
