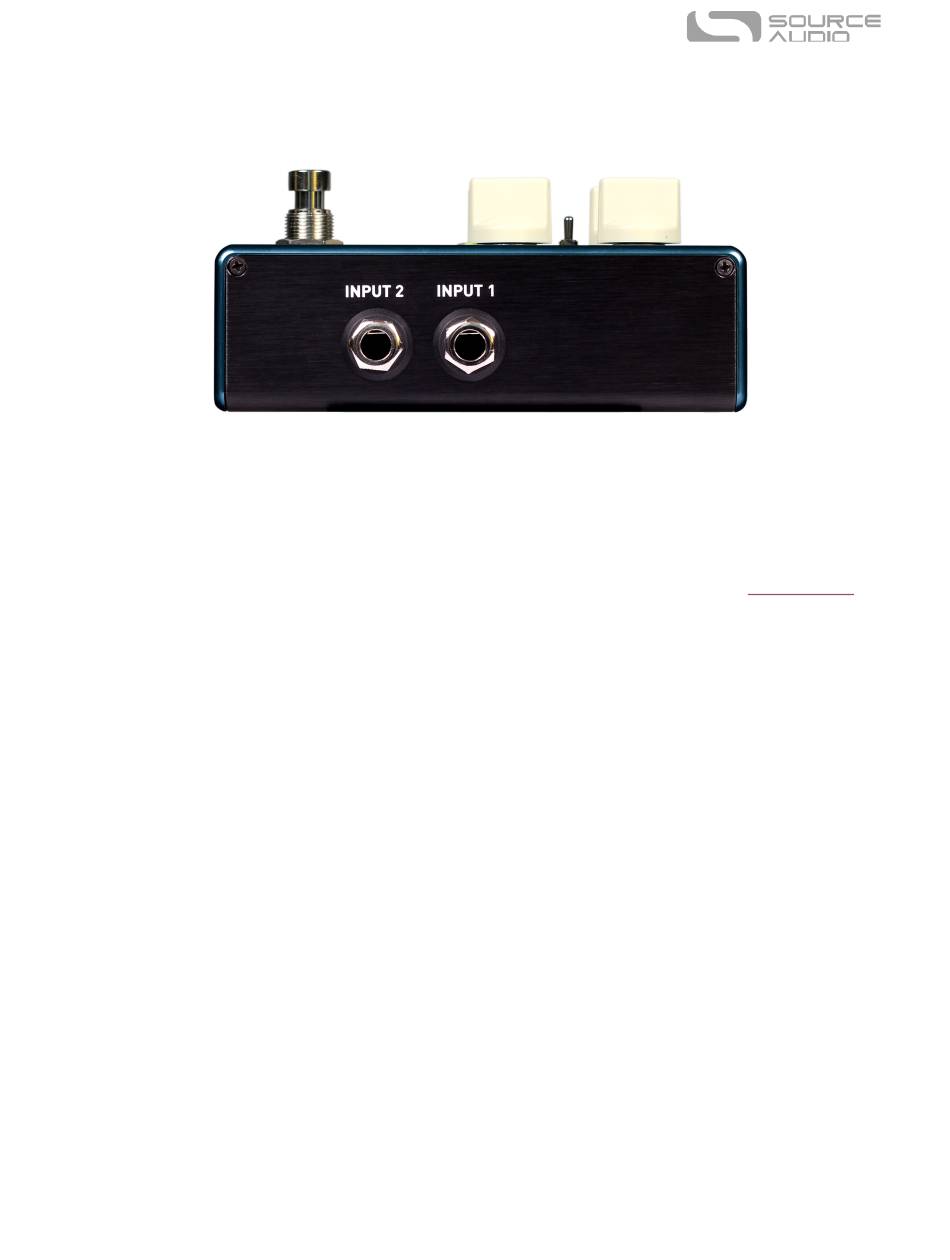

Input Side Connections
INPUT 1
I 1 is the primary input for guitar, bass, or other instruments. It can also accept line-level inputs
NPUT
and will work in your amp's effect loop. Connect it to your instrument or other audio source using a
mono (TS) 1/4" cable. Details about the appropriate signal levels are available in the
section.
INPUT 2
Use the secondary audio input for stereo sources or as the data connection to your mobile device
when using the Neuro App.
•
INPUT 2 as an Audio Input:
or other instruments. Connect your instrument (or the previous effect in the signal chain) using
a mono (TS) ¼" cable. The Atlas will automatically configure itself for stereo audio input. Other
routing options are available using the Neuro App. For more information about stereo routing,
refer to the Stereo Operation
•
INPUT 2 as a Neuro App Data Input:
Neuro Mobile App. The Neuro App sends data to the pedal using your mobile device's
headphone jack. Connect it to your mobile device using the included stereo (TRS) 1/8" to 1/4"
cable. It can also accept daisy-chained Neuro data from another Neuro-compatible pedal in the
chain, provided that a TRS cable is used. The audio signal (if applicable) will be on the tip contact
of the plug, and the Neuro App data will be on the ring contact. This allows audio and Neuro
data to flow on the same cable.
SA252
The tip contact on I
NPUT
section.
The ring contact on I
Atlas Compressor User Guide
2 acts as a secondary input for guitar, bass,
2 acts as a data connection for the
NPUT
Specifications
