Valve - Whirlpool AWV6200 Service Manual

8.4.

Valve

Valve is an electrical and mechanical component which is designed to take water from the network
system into the washine machine. It is operated by PCB card.
8.4.1. Technical Features
Nominal voltage
Nominal power
Frequency
Rated flow:
Operating water pressure
8.4.2. Checking of Component

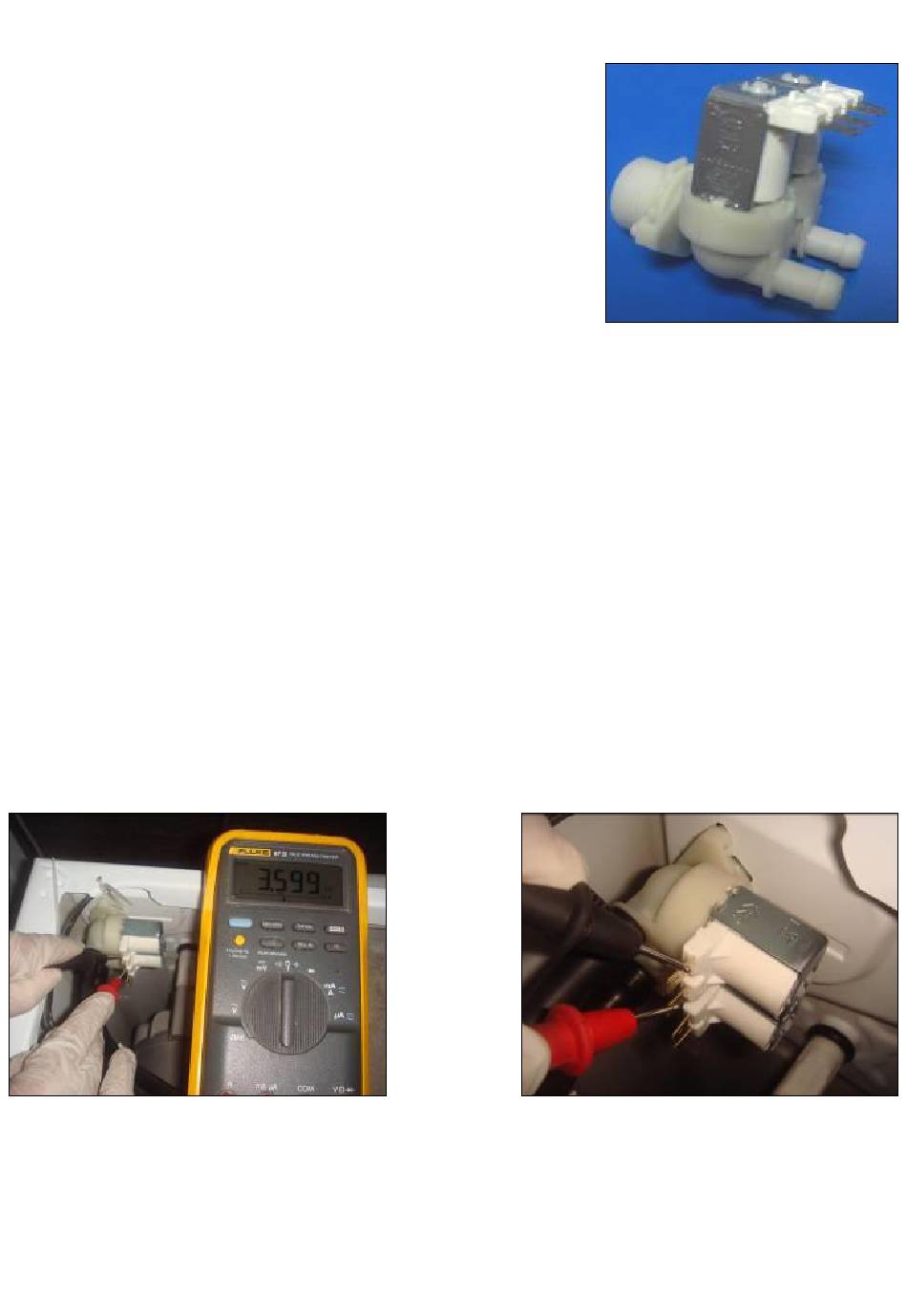

Check the resistance value on the component with multimeter as shown in below pictures.
Valve water flow rate should be between 6 lt/min - 8 lt/min.
Each valve bobbin resistance values should be between 3,3 - 4.2 kohm .
220 – 240 V
8 VA
50-60 Hz
7 lt/min (±15 %)
0.0,3 – 1 Mpa
Checking the component
