8.5.

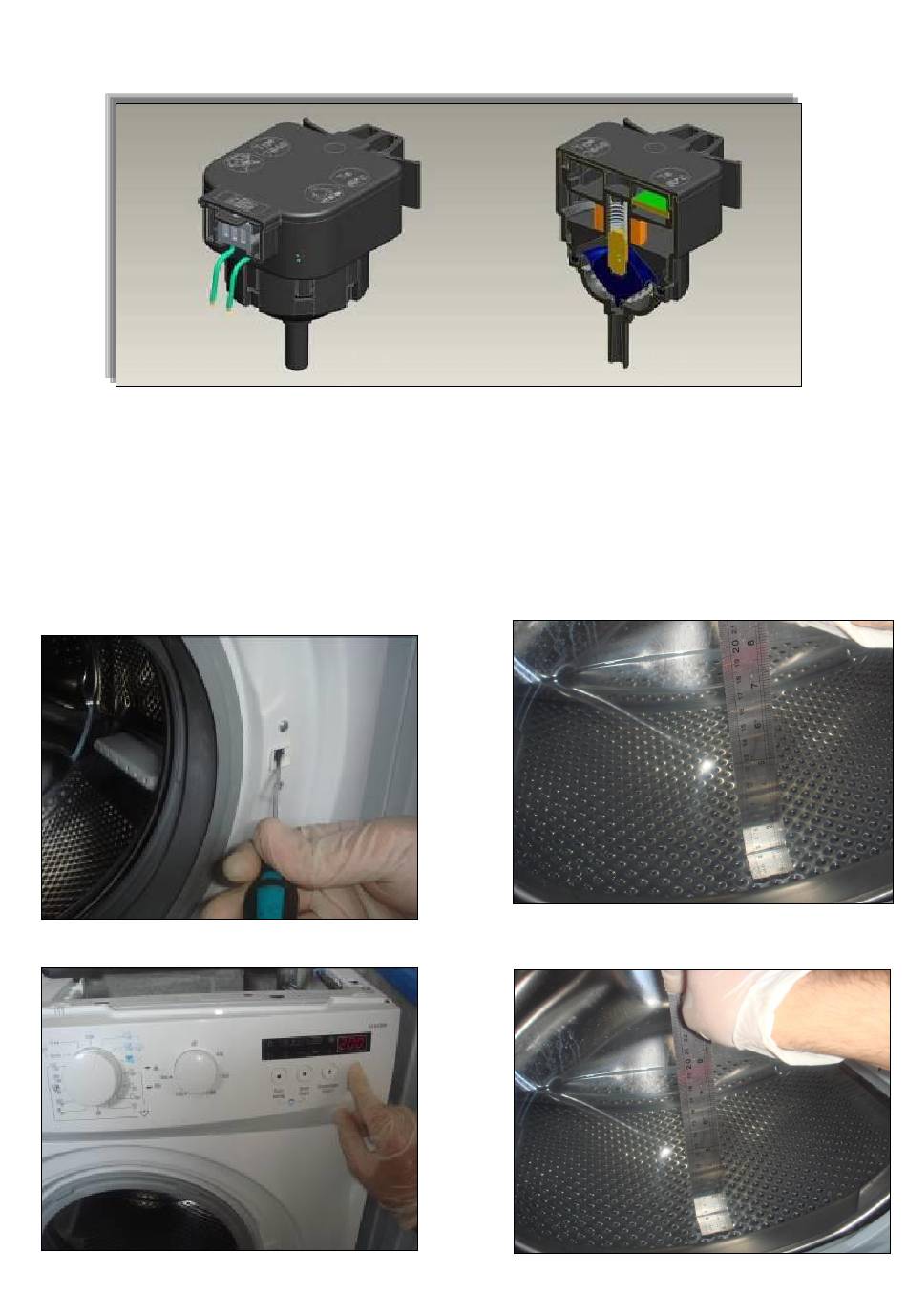

Electronic Pressure Switch (EPS)

8.5.1. Technical Features
Electromagnetic field occurs as a result of the vibration of the membrane which is under pressure in the coil. The nucleus part is moved up and down by
the electromagnetic field. The water level is regulated by the frequency which is controlled by the PCB and changes according to the movement of the
nucleus part.
8.5.2. Checking of Component
1. Push the door lock slider with screwdriver.
5. Select the 1st program and start the machine.
6. Cut off the energy input when the water intake finishes and
drum begins to rotate.
7. Check the water level inside the drum with ruler. It should be
10 cm ±1.
35
