8.2.

Resistance

Heating element (Resistance) is a component which is desingned to regulate
temperature of water inside the drum. It has three connections: Phase, notral and
ground connections.
8.2.1. Technical Features
Kind of heating
Nominal voltage
Nominal power
Resistance
Thermal fuse
8.2.2. Checking of Component

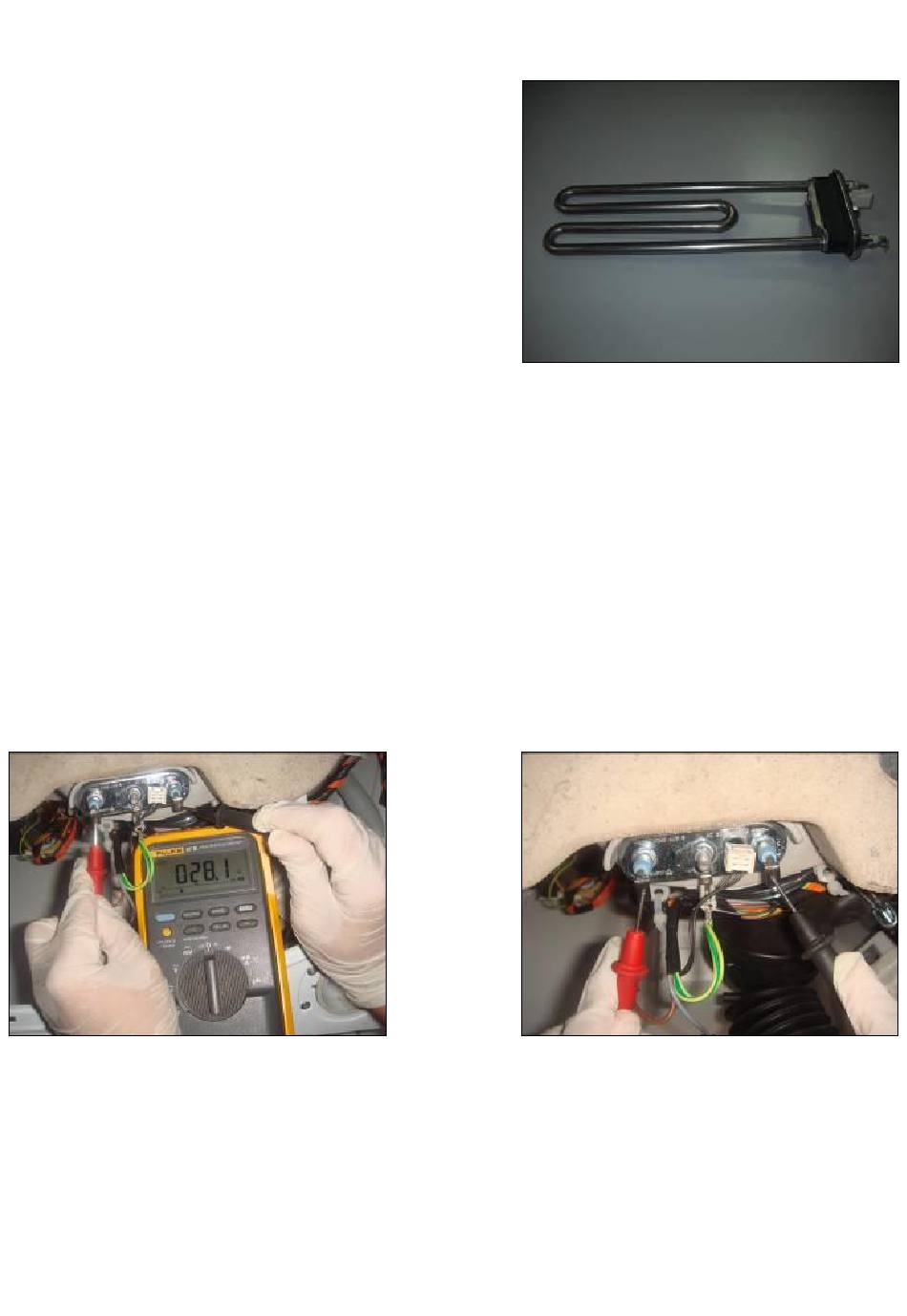

Check the resistance value on the component with multimeter as shown in below pictures.
Tubular heating element with NTC – sensor
230 V
2000 W (±5%)
24,8 ±5% Ω (for NA-127VB3 and NA-147VB3)
2 – sided
Checking the component
31
