R/C Flugmodell
TIGER MOTH
Anleitung / Instructions
TECHNISCHE DATEN
Spannweite ...................................1400mm
Lange ............................................1180mm
Elektroantrieb.................................... 750W
Verbrennerantrieb ...............7.45cc - 11.5cc
Fluggewicht .......................................3,5Kg
Fernsteuerung ........ 5 Kanal / 4 .. 5 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

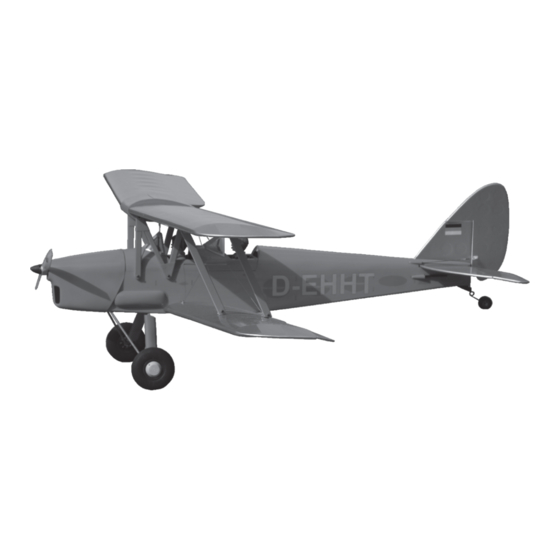

R/C Airplane Model
DH-82
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
SPECIFICATIONS
Wingspan:......................................1400mm
Length:...........................................1180mm
Electric Motor:....................................750W
Glow Engine:.................... .46 2-T / .70 4-T
RTF Weight: 3.Kg (will vary with equipment
use)
Radio:....................5 Channel / 4-5 Servos
Function: Ailerons-Elevator-Rudder-Throttle
VQ No: VQA139R/Y/DK
Advertisement
Table of Contents
Related Manuals for H-KING TIGER MOTH DH-82
Summary of Contents for H-KING TIGER MOTH DH-82
- Page 1 R/C Flugmodell R/C Airplane Model TIGER MOTH DH-82 ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY Anleitung / Instructions VQ No: VQA139R/Y/DK SPECIFICATIONS TECHNISCHE DATEN Wingspan:........1400mm Spannweite ........1400mm Length:...........1180mm Lange ..........1180mm Electric Motor:........750W Elektroantrieb........750W Glow Engine:.....46 2-T / .70 4-T Verbrennerantrieb ....7.45cc - 11.5cc RTF Weight: 3.Kg (will vary with equipment Fluggewicht ........3,5Kg...
- Page 2 Für den Betrieb erforderlich / Items needed Luftschraube 12x5 (Holz), # C9714 ‚ Servokabelverlängerung x2, # C2036 Propeller 12x5 (Wooden) Servo Extensionwire Servokabelverlängerung x2, # C1393 Servo Extensionwire Fernsteuerung GigaProp 6 # C8802 Radio Set GigaProp 6 Brushless Power Set BOOST 40 # C9109 MASTER SERVO LiPo Akku 4500 - 11,1V # C9421...
-
Page 3: Engine Installation
1- Engine installation LEFT RIGHT B’ Engine mounts Front-view B=B’ Using a pencil or felt tipped pen, mark the fire wall where the four holes are to be drilled ! Engine thrust on balk head ! Align the mark on both mounts is already adjust at factory with the mark on the fuselage Remove the engine mount and drill... - Page 4 2- Engine installation Reposition the engine mounts on to the fire-wall 4x25mm screw - washer and secure them with four 4x25mm screw....4 3x25mm screw - washer ....4 Reposition the engine on to the engine mounts so the distance from the prop hub to the fire wall is 130mm.
-
Page 5: Electric Motor Installation
3- Electric Motor installation Using a wooden motor mounting plate as a template, mark the fire-wall where the four holes are to be drilled. Using a aluminum motor mounting plate as a template, mark the plywood motor mounting plate where the four holes are to be drilled. -
Page 6: Horizontal Stabilizer
4- Horizontal Stabilizer Full the elevator out of the horizontal stabilizer. Cut away only the covering both side Trial fit the horizontal stabilizer in place. Check the alignment of the horizontal stabilizer. If the parts will join, but with a gaps, sand or the rectangular hole on the fuselage a little at a time until the parts meet exactly with no gaps. -
Page 7: Front View
5- Horizontal Stabilizer Install the horizontal stabilizer into the fuselage and adust the alignment as described in steep Horizontal stabilizer B=B’ B’ Aluminum tube When you are satisfied with the alignment, with the thin CA glue around the top and Thin CA FRONT VIEW bottom of the stabilizer where it meets the... -
Page 8: Vertical Stabilizer
6- Vertical Stabilizer Carefully, push the vertical fin into the Pull the rudder out of the vertical fin. slot on the fuselage as shown . Trial fit the vertical fin in position. Using a 90 degree triangle, ensure that the vertical stabilizer is perpendicular to the horizontal stabilizer . - Page 9 7- Tail wheel and Rudder Without using glue yet, push the rudder and its hinges into the hinge slots in the trailing edge of the vertical stabilizer. There should be a minimal hinge gap and the bottom edge of the rudder should not rub against the vertical stabilizer.
-
Page 10: Control Horn
8- Control horn Plastic control horn ....3 Note: the rectangular holes for the control horn installation are pre-cut at factory. -
Page 11: Main Landing Gear
9- Main landing gear cut along the drinking straws * WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA or similar cement. This will ensure the covering remain tight. cut away only the covering 3mm landing gear Drinking straws... - Page 12 10- Main landing gear 2mm ID collar ..2 1.5mm screws set Connector 11- Servo and linkages Connector ...2 ...1 IN CASE OF GLOW ENGINE USING Rudder servo Fuel tank area Throttle servo Elevator servo FUSELAGE - TOP VIEW IN CASE OF ELECTRIC MOTOR USING Rudder servo Li-po battery area...
- Page 13 12- Wing Strut 3x25mm screw ..8...
-
Page 14: Aileron Servo
13- Aileron servo Remove the aileron hatch cut away the covering only LOW WING - BOTTOM-VIEW... - Page 15 14- Low Wing wooden dowel thin CA wooden dowel thin CA TOP OF THE LOW-WING Two holes are ready mark ....4 ....4 ..4 ....2 0.5mm dia. x 180cm Cable ...1 roll 2mm metal tube .....6 The hole is ready mark Do not cut the excess cable at this time.
- Page 16 15- High Wing BOTTOM OF THE HIGH-WING Two holes are ready mark Do not cut the excess cable at this time. The hole is ready mark ....4 ....4 0.5mm dia. x 180cm Cable ...1 roll ..4 2mm metal tube ....2 .....6 16- Rod exit guide Rod exit guide...
-
Page 17: Wing Installation
17- Wing Installation Remove the magnetic hatch 12x318mm aluminium tube 6x25mm nylon bolt ....4 12x318mm aluminium tube 6x25mm nylon bolt 6x25mm nylon bolt... - Page 18 18- Cable and wing brace...
- Page 19 19- Fiberglass Cowl ..4...
-
Page 20: Control Surface
20- Balance Der ideale Schwerpunkt befindet sich 106 - 112mm hinter der Nasenleiste CG= 106 - 112mm der oberen Tragfläche THE CENTER OF GRAVITY IS LOCATED 106 - 112mm BACK FROM THE LEADING EDGE OF THE UPPER WING, AT THE FUSELAGE. 1- Mount the wing to the fuselage.
