H-KING
1042mm PARKJET with pre-installed 70mm fan,
motor, ESC and servos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLYCAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for H-KING FLYCAT

Summary of Contents for H-KING FLYCAT

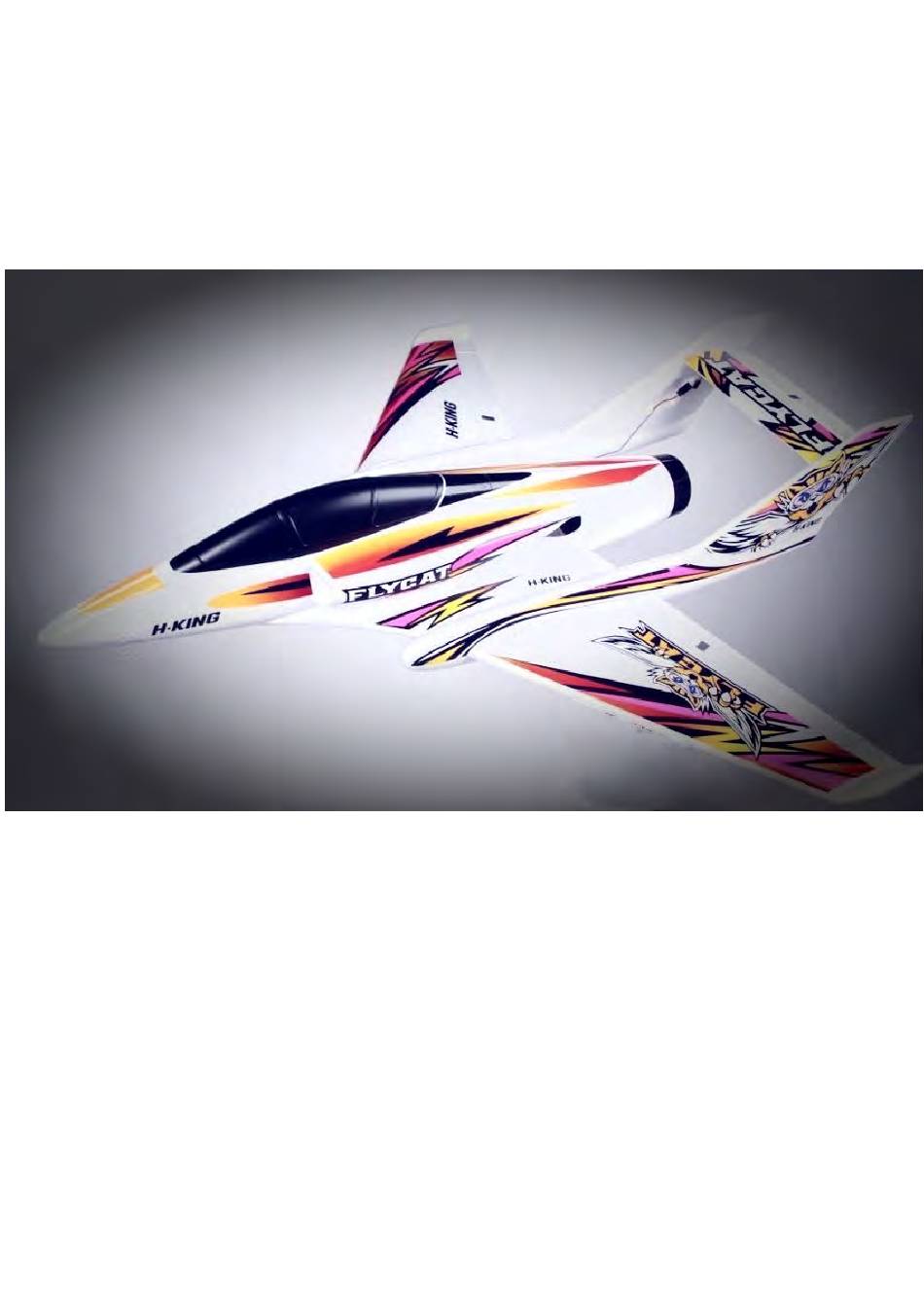

  • Page 1 H-KING FLYCAT 1042mm PARKJET with pre-installed 70mm fan, motor, ESC and servos...
  • Page 2 FLYCAT MANUAL CONTENTS Description and Specifications -------------------- 2 Using and charging Lipoly batteries ----------- 3 Safety Notes ------------------------------------------------ 4 Assembly ----------------------------------------------- 5 to 16 Center of Gravity ------------------------------------------- 17 Set-Up ---------------------------------------------------------- 18 Flying Tips ---------------------------------------------------- 19 Recommended Accessories -------------------- 20 to 22...
  • Page 3 The brief was to design a low cost 70mm Parkjet to replace the popular Flycat, it was to have no frills, look similar and to have no landing gear. The result is a similar outline to the original Flycat but it is bigger 1042mm as opposed to 640mm and it has an internal 70mm fan unit rather than an EDF unit sitting on top.
  • Page 4 FLYCAT Warning on the use of lipoly batteries and their chargers. Warnings and Safety notes...
  • Page 5 SAFETY INSTRUCTIONS Please read this manual carefully and follow the instructions before you use this product. This airplane is not a toy, due to it's advanced flying qualities it is only suitable for pilots with intermediate or higher experience. If you are a novice then please only operate with the assistance of an experienced pilot.
  • Page 6 FLYCAT Kit Components 1. Fuselage 2. Wings 3. Tail Booms 4. Tailplane 5. Fin Servo Connector Cover 6. Wing Retaining Parts and Screws...
  • Page 7 FLYCAT General Assembly 1. Using slow cure CA or a similar glue apply the glue to the area of the fuselage where one of the plywood wing retaining tongues is located. 2. Glue into place the plywood tongue as shown.
  • Page 8 3. Repeat this process with the other 3 plywood tongues. 4. Glue into place the 4 foam in fills on top of the plywood tongues.
  • Page 9 FLYCAT 5. This picture shows all 4 foam in fills in place. 6. Apply some slow setting CA or similar glue into the recess on fuselage side of the tail boom that does not have the cut out in the fin.
  • Page 10 7. Slide the tail boom over the wing root of the fuselage as shown and glue into place. 8. Prior to gluing the 2nd tail boom into place ensure you feed the elevator servo extension lead into the cut out slot in the boom (see following pictures).
  • Page 11 FLYCAT 9. Apply a small amount of glue into the slot in the wing root and press the lead into the slot. 10. Do the same along the boom and up to the cut out in the fin.
  • Page 12 FLYCAT 10. Ensure the elevator servo extension lead connector is positioned in the area of the cut out in the vertical stabilizer. 11. Apply some slow setting CA or similar glue into the recesses on both vertical stabilizers where the tailplane slots into as shown.
  • Page 13 12. Slot the tailplane into position and leave for the glue to set. ensuring the elevator servo lead is positioned correctly as shown below. 13. Connect the elevator servo lead to the elevator extension lead.
  • Page 14 FLYCAT 14. Apply some glue to the recess in the fin for the servo connector cover. 15. Press the servo connector cover into the recess and leave for the glue to set.
  • Page 15 16. Connect the aileron servo extension lead from one wing panel to the corresponding connector that exits the wing root in the fuselage/tailboom. 17. Slide the wing tube into the pre-installed tube in the fuselage/tailboom wing root.
  • Page 16 FLYCAT 18. Slide the wing assembly fully home onto the plywood tongues until the fixing screw holes align (see below picture).
  • Page 17 19. Screw the supplied PK screws through the plastic wing fixings and into the plywood tongue. Repeat this whole operation with the other wing. 20. Install your chosen receiver and tuck it into the recess at the rear of the battery compartment.
  • Page 18 21. Install a 6S 3000mah lipoly battery into the battery compartment C of G should be 510mm ± 5mm from the nose of the Flycat. As shown this position is in the vicinity of the rear of the front wing fixing.
  • Page 19 C of G Position Adjust the position of the battery to achieve the correct balance --------------------------------------------------------------------------------- The following pictures show the recommended set-up.
  • Page 20 22. Set the aileron travel to 15mm each way and we recommend you use between 20~30% exponential travel. 23. Set the elevator travel to 30mm each way and we recommend you use between 20~30% exponential travel.
  • Page 21 If your plane is not flying correctly land and adjust your radio or the Flycat's linkages where necessary. Once you have your Flycat flying well it will perform as if it is on rails, it's fast, smooth and manoeuvrable. You will be able to fly all the usual jet like aerobatics with ease and it looks really great in the sky.
  • Page 22 FLYCAT Recommended Accessories FrSky Taranis Q X7 Digital Telemetry FrSky 2.4GHz ACCST TARANIS X9D Radio System 2.4GHz ACCST (White- PLUS Digital Telemetry Transmitter no plugs) (Mode 2) (EU) SKU: 236000106-3 SKU: 236000062-0 OrangeRx Tx6i Full Range Turnigy TGY-i6 AFHDS Transmitter and 2.4GHz DSM2/DSMX compatible...
  • Page 23 Turnigy 3000mAh 6S 40C Turnigy 3000mAh 6S 30C Lipo Pack Lipo Pack w/XT-60 w/XT-60 SKU: 9067000256-0 SKU: 9067000255-0 Turnigy Graphene Panther 3000mAh ZIPPY Compact 3300mAh 6S 75C Battery Pack 6s 60c Lipo Pack SKU: 9067000376-0 SKU: 9067000040-0 Turnigy Nano-Tech Plus HXT 4mm to XT-60 Battery Adapter 3000mAh 6S 70C Lipo Pack (2pcs/bag)
  • Page 24 FLYCAT Turnigy Reaktor 250W 10A 1-6S Balance Turnigy Accucel-6 80W 10A Balancer/ Charger Charger LiHV Capable SKU: 9466000004-0 SKU: 9052000071-0 Turnigy P403 LiPoly / LiFe AC/DC Turnigy Reaktor 120 DUO 2x120W Battery Charger (240W) Balance Charger AC/DC SKU: 9070000039-1 (EU Plug)
  • Page 25 As shown in the following pictures the foam has been pre-cut to allow for the installation of retracts. There is not a bespoke set of retracts made for the Flycat. They is a good selection on HobbyKing.Com or you may even...
  • Page 26 FLYCAT If you do not intend to fit retracts to start with then we recommend you tack glue the foam blanking parts into the model. This is so they can be easily removed at a later date if you wish.
  • Page 27 H•KING H•KING...
