H-9593

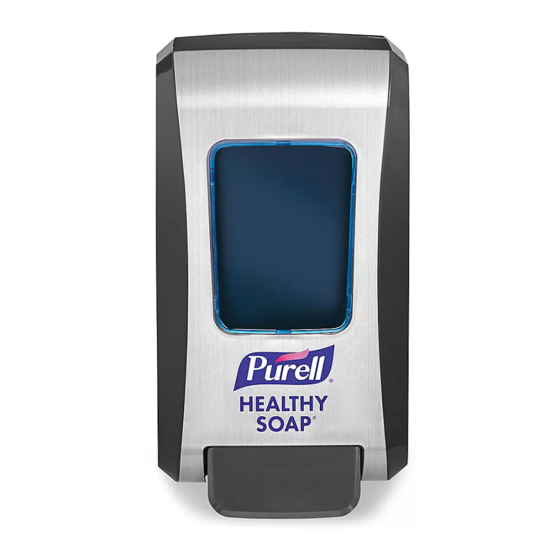

PURELL
HEALTHY SOAP
®
FMX-20 DISPENSER
TOOL NEEDED
Drill
(Optional)
NOTE: Install dispenser at least 10" above
countertop.
INSTALLING WITH TAPE
1. Clean installation surface with an alcohol pad.
Allow surface to dry for 60 seconds. Peel paper off
installation tape and press firmly against installation
surface for 30 seconds. For maximum adhesion, wait
24 hours before loading refill or using dispenser.
(See Figure 1)

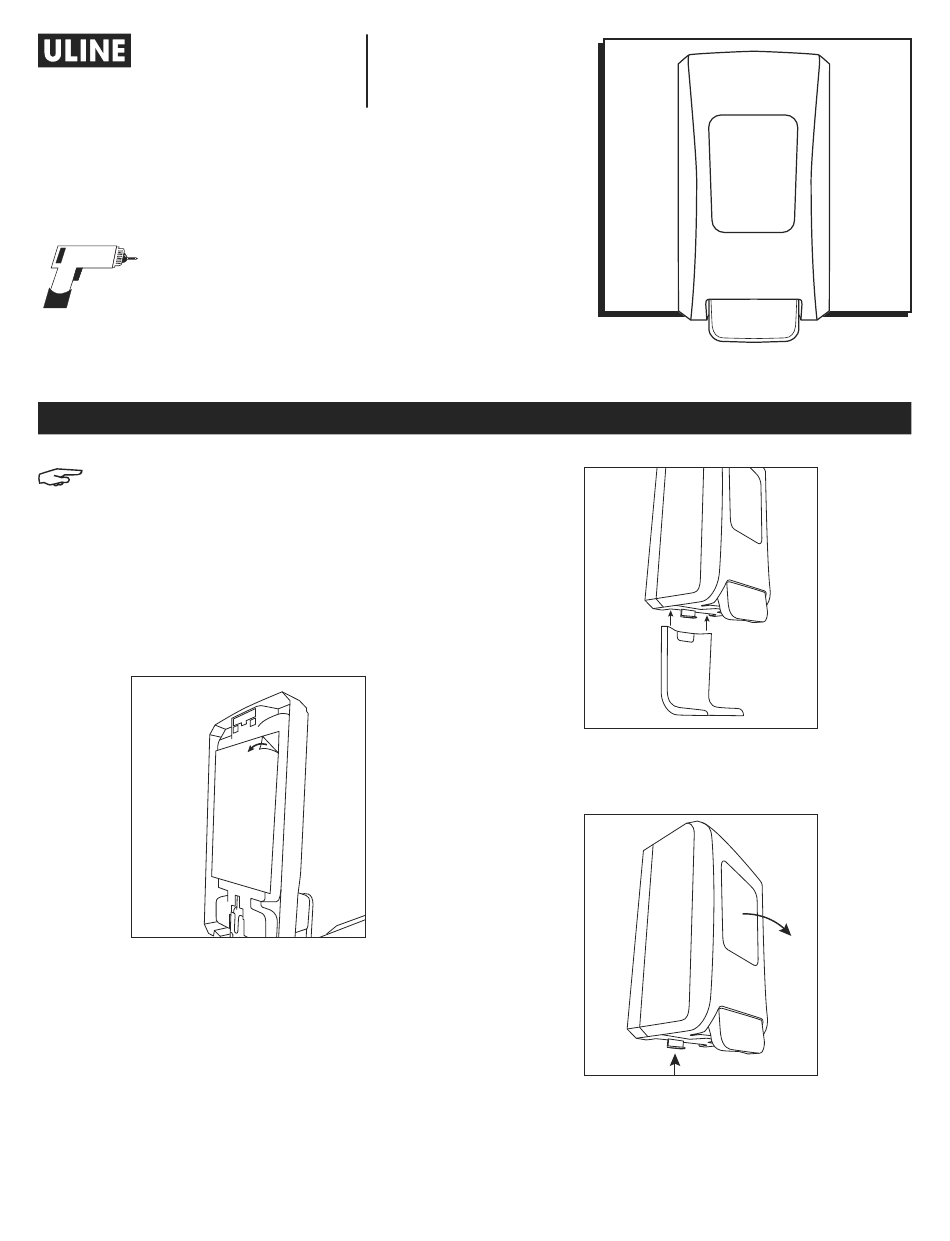

Figure 1
2. Close dispenser cover.
3. Install floor and wall protector into bottom of
dispenser by aligning plastic tabs on protector
with slots on dispenser. Slide up until tabs snap into
place. (See Figure 2)
PAGE 1 OF 6
1-800-295-5510
uline.com
®
INSTALLATION
4. Open dispenser by pressing release button on
Pour le français, consulter les pages 5-6.
Figure 2
bottom and allow front cover to descend forward.
(See Figure 3)
Figure 3
Para Español, vea páginas 3-4.
0921 IH-9593
