Hanging the Fan
9 8
1. Secure safety cable to structure.
14

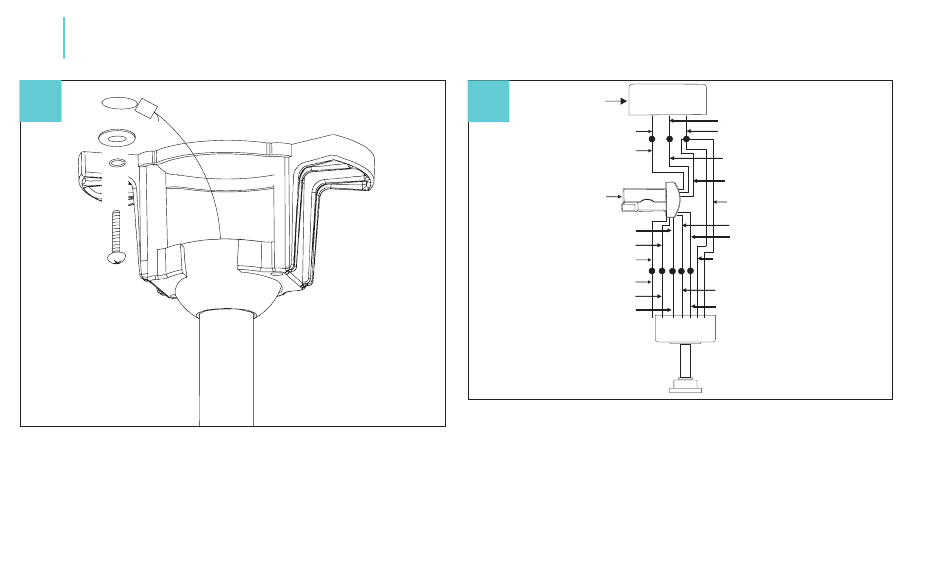

Making the Electrical Connections

9
Outlet Box
Black (hot)
Black ("AC IN L")
Receiver
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)
1. Connect the wires from fan to the corresponding wires on the receiver.
2. Connect the wires from the outlet box to the corresponding wires
on the receiver.
NOTE: Follow wiring diagram found on the receiver hardware.
After making electrical connections, spliced connectors should be turned
upward and pushed carefully up into the outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded connector on
the other side of the outlet box.
White (neutral)
Green (ground)
White ("AC IN N")
Green (ground)
To Hanger Ball
Green (ground)
To Hanger Bracket
White (for light)
Blue (for light)
Green (ground)
White (for light)
Black (for light)
