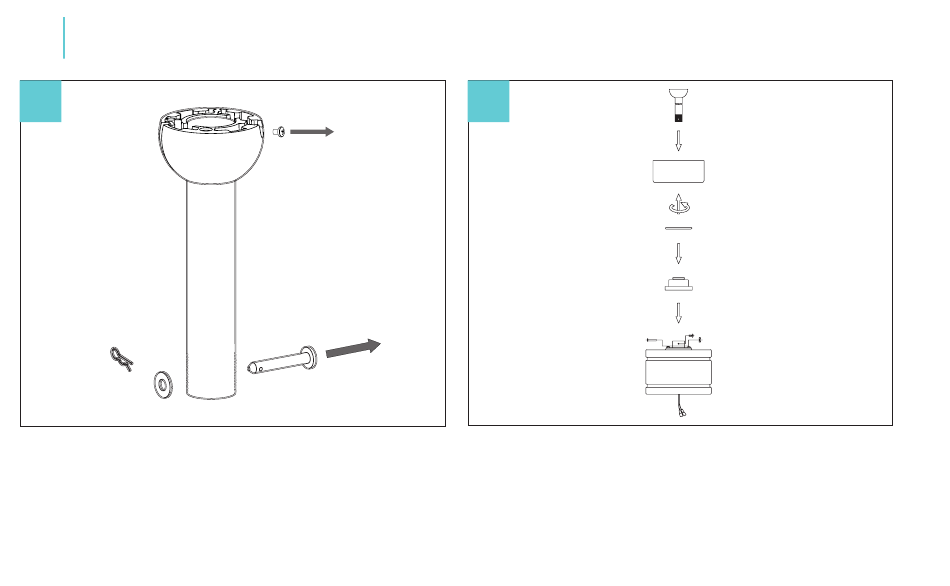

Hanging the Fan

4

1. Remove screw from hanger ball. Remove hanger ball and cross pin.

2. Loosen 2 screws, clevis pin and cotter pin.

12

5

1. Install coupling cover, canopy screw ring, canopy and downrod

assembly into motor housing as shown.

F R -W 200 1
