  • Page 1 Renegade Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE F R - W 2 0 0 1 Renegade Instructions...
  • Page 3 General Inquiries For all questions about your ceiling fan please read all included instructions, installation procedures, troubleshooting guidelines and warranty information before starting installation. For missing parts or general inquiries call our trained technical staff at: 1-866-810-6615 option 0 MON-FRI 8AM-8PM EST Email: customerservice@modernforms.com Or live chat at modernforms.com...
  • Page 4 Safety Rules For operation, maintenance, and troubleshooting information, visit http://modernforms.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70”...
  • Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
  • Page 6 Get Smart... works with the Integrates Google Assistant seamlessly with: devices you already own Wet Location-listed to the strictest UL/cUL safety regulations. Finished and rated for interior and exterior use Premium smart Wi-Fi and Bluetooth enabled features: for flexible control complement high quality materials Quiet, reliable, and up to 70% more efficient than AC fans...

  • Page 7: Table Of Contents

    Contents 1. Mounting Options 2. Installing the Mounting Bracket 3. Attaching the Fan Blade/Arms 3A. Attaching the Brush Nickel Blade/Arms 4. Hanging the Fan 5. Making the Electrical Connections 6. Installing the Wall Control (Optional) 7. Finishing the Installation 8. Installing the Luminaire Module 9.

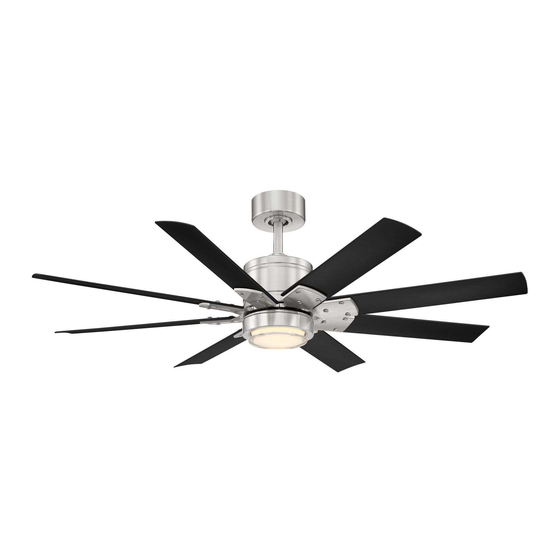

  • Page 8 Package Contents Blade Set of 8 Adapter Plate RPL-F2001-*-BD-** 8. Luminaire Module 2. Blade Arms Set of 8 F4IN-120V-R1-30 RPL-F-2001-BARM-** 9. Luminiare Cover RPL-F-2001-BARM2-** RPL-F2001-COVER-** 3. Downrod Assembly 10. Luminiare Glass Mounting Bracket RPL-F2001-GLA RPL-HGR-ASM-6-** 11. Control Receiver 4. Canopy & Canopy w/Hardware Screw Ring F-R3-2001-0**...
  • Page 9 Hanging Weight: 35 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. 24x Decorative screw nuts come with Brushed Nickel finishes located in the hardware bag FR- W200 1 Renegade Instructions 9...

  • Page 10: Mounting Options

    1. Mounting Options CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the following instructions. Secure the outlet box directly to the building structure.
  • Page 11 Support Brace 2. Outer Box 3. Joist Outer Box Support Ceiling Max 30° Angle Support Brace 2. Mounting Bracket 3. Recess Outlet Box Outlet Box FR- W 2 00 1 Renegade Instructions 11...

  • Page 12: Installing The Mounting Bracket

    2. Installing the Mounting Bracket Remember to disconnect the power at the circuit breaker. Remove 1 of 2 screws from the bottom of the mounting bracket and save for use in section 11. Loosen the other screw (Fig. 2). 2. Pass the 120-volt supply wires through the center hole in the mounting bracket as shown (Fig.
  • Page 13 To Switch (Ground) (HOT) *Bare or Green (Neutral) To Switch (No Neutral) (Ground) (HOT)/ *Bare or Green Switch Mounting Bracket cUL Listed Electrical Box 2. Screw 2. Mounting Screws (outlet box screws not included) 3. 120V Wires Decorative Wire Nuts For Brushed Nickel version FR- W 2 00 1 Renegade Instructions 13...

  • Page 14: Hanging The Fan

    4. Hanging the Fan Remove screw from hanger ball. Remove hanger ball and cross pin. 2. Loosen 2 screws, clevis pin and cotter pin (Fig. 4A). 3. Install coupling cover, canopy screw ring, canopy and downrod assembly into motor housing as shown (Fig. 4). 4.
  • Page 15 FR- W 2 00 1 Renegade Instructions 15...

  • Page 16: Making The Electrical Connections

    5. Making the Electrical Connections WARNING: Installation of this fan requires that a three-conductor cable (including ground wire) which should run between ceiling and wall outlet box. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire.
  • Page 17 Mounting Bracket 2. Receiver Outlet GREEN(Ground) Black(Hot) WHITE(Neutral) can be RED from Switch leg WHITE(Line in N) GREEN(GND Must Use) Black(Line in H) GREEN(Hanger Bracket Ground) Hanger Receiver Bracket GREY(to Motor) BLUE (to Light) WHITE(to Light) YELLOW(to Motor) GREEN(Hanger Bracket Ground) RED(to Motor) RED(to Motor) WHITE(Neutral)

  • Page 18: Installing The Wall Control (Optional)

    6. Installing the Wall Control (Optional) NOTE: Wall Control not included. A bluetooth wall control accessory can be purchased separately. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker –...
  • Page 19 Wall Outlet 2. Wall Control 3. Wall Mounting Plate 4. Mounting Plate Screws 5. Wall Plate Multi-location wiring Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 25. If Applicable Wall Controller 1 Wall controller 2 Wall Controller 3 Line/Hot...

  • Page 20: Finishing The Installation

    7. Finishing the Installation Secure wire connectors with supplied wire ties. 2. Install canopy to mounting bracket with the screw removed in section 4 (Fig. 7). 3. Install canopy screw ring as shown (Fig. 7). 8. Installing the Luminaire Module Installation of the Luminaire (Glass/Cover) is optional.
  • Page 21 FR- W200 1 Renegade Instructions 21...

  • Page 22: Controlling The Fan

    9. Controlling the Fan Your fan was delivered to you with the included control paired to your fan. A: Light On/Off, Bright/Dim B: Fan On/Off, Speed Up/Down C: Season (Summer/Winter) Air-Gap Switch: Pull tab to power off in case of emergency. Not necessary for normal fan operation (only included with wall control).
  • Page 23 Air-Gap Switch* Summer Mode Winter Mode Wall Control Remote (Counter-Clockwise) (Clockwise) Control * Air-Gap Switch only included with wall control Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds.

  • Page 24: Factory Reset

    (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play. Open the app to create your account. You can also log in using your Facebook or Google account.
  • Page 25 Pairing Unpairing Fan Wi-Fi Reset Press and hold buttons To purge, press and hold Press and hold for 10 seconds until for 10-15 seconds. buttons for 4 seconds. LED blinks green and receiver emits 2 long beeps Factory Reset Receiver Factory Reset Press the reset button on the receiver Press and hold buttons for 10 seconds until the receiver beeps...

  • Page 26: Accessories

    13. Accessories personalize your experience Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White F R - W 2 0 0 1 Renegade Instructions...
  • Page 27 Sloped Ceiling Kit Designed to accommodate buildings with steeper sloped ceilings up to 45° or 12/12 pitch (Downrod Only) XF-SCK Coupler Connects two downrods (Downrod Only) XF-I Downrod XF-12 - 12” Downrod | XF-18 - 18” Downrod XF-24 - 24” Downrod | XF-36 - 36”...

  • Page 28: Troubleshooting

    14. Troubleshooting My Fan Will Not Start CAUTION: Make sure the main power is turned off! Check main and branch circuit fuses or circuit breakers. 2. Check line wire connections to fan and switch wire connections in the switch housings. My Fan Is Noisy Allow for 24-hour break-in period.
  • Page 29 My Fan Is Not Producing Enough Air Movement If possible, please consider using a longer than included downrod. My Remote Or Wall Control Is Not Controlling My Fan Verify that the fan is receiving power by power cycling the fan. To Do This: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 30 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
  • Page 31 What Is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 32 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
  • Page 33 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
  • Page 34 F R - W 2 0 0 1 Renegade Instructions...
  • Page 35 FR- W 2 00 1 Renegade Instructions 35...
  • Page 36 FR- W 2 00 1 modernforms.com...
