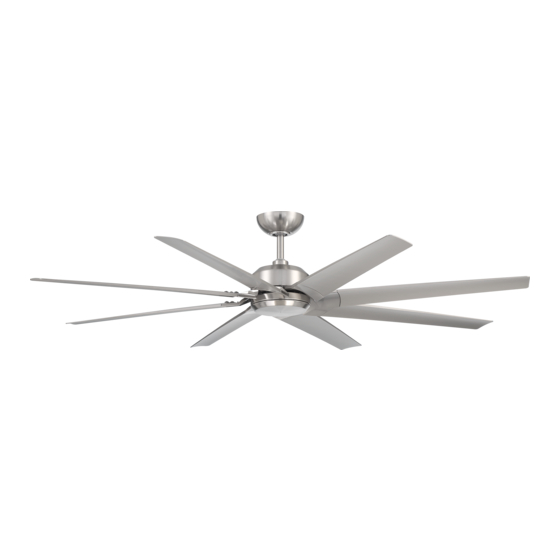

Roboto XL
Installation Instructions
works with the
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roboto XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Modern Forms Roboto XL

Summary of Contents for Modern Forms Roboto XL

  • Page 1 Roboto XL Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE FR- W 2 3 0 1 Roboto XL Instructions...
  • Page 3 For fast service have the following information below when you call: Model Name and Number 2. Part Number and Part Description 3. Date Of Purchase and Purchase Location 1-866-810-6615 option 1 MON-FRI 8AM-8PM EST Email: fansupport@modernforms.com FR-W 2 30 1 Roboto XL Instructions 3...
  • Page 4 All set screws must be checked and re-tightened where necessary before installation. FR- W 2 1 0 1 FR- W 2 3 0 1 Wynd XL Instructions Roboto XL Instructions...
  • Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
  • Page 6 Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White FR - W 2 1 0 1 FR - W 2 3 0 1 Wynd XL Instructions Roboto XL Instructions...

  • Page 7: Table Of Contents

    8. Installing the Optional Wall Control 8. Installing the Optional Wall Control 9. Controlling the Fan 10. Reset 11. Breeze Mode 12. Application 13. Accessories 14. Troubleshooting 30-32 14. Troubleshooting cont. Tools Required FR -W 2 30 1 Roboto XL Instructions 7...
  • Page 8 (Included with receiver) Before discarding packaging materials be certain all parts have been removed. Place the parts from the hardware bag into a small container to keep them from being lost. FR - W 2 3 0 1 Roboto XL Instructions...
  • Page 9 Hanging Weight: 35 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. *LED and Luminaire Kit comes with FR-W2301-70L (luminiare version) only FR - W 2 30 1 Roboto XL Instructions 9...

  • Page 10: Mounting Options

    45° (Fig. 1B). NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling (Fig. 1B). FR- W 2 1 0 1 FR- W 2 3 0 1 Wynd XL Instructions Roboto XL Instructions...
  • Page 11 Support Brace 2. Outlet Box 3. Joist Outlet Box Support Ceiling Max 30° Angle Support Brace 2. Mounting Bracket 3. Recess Outlet Box Outlet Box FR-W 2 30 1 Roboto XL Instructions 11...

  • Page 12: Installing The Mounting Bracket

    Refer to Hardware C. NOTE: You can also attach the blades to the blade arms first. This is a matter of preference. FR - W 21 0 1 FR - W 2 30 1 Wynd XL Instructions Roboto XL Instructions...
  • Page 13 (outlet box screws not included) 3. 120V Wires Blade 2. Blade Arms 3. Screws with Lock Washers for Blade Arms 4. Screws with Rubber Washers for Blades Refer to Hardware B & C FR -W 2 30 1 Roboto XL Instructions...

  • Page 14: Assembling The Fan

    7. Tighten all 3 until snuggly secured. (Fig. 4C) (Fig. 4C) 8. Twist on the shade and make sure it is on tight. FR - W2 1 0 1 FR - W2 3 0 1 Wynd XL Instructions Roboto XL Instructions...
  • Page 15 3 screws for adapter plate FR-W 2301 Roboto XL Instructions 15...

  • Page 16: Hanging The Fan

    Canada. Safety cable is required for ceiling fan and light (combo) installations over 35 lbs. in both flush and downrod models in the United States. FR - W 2 1 01 FR - W 2 3 0 1 Wynd XL Instructions Roboto XL Instructions...
  • Page 17 Canopy 2. Canopy Ring 3. Coupling Cover 4. Clevis Pin 5. Cotter Pin Motor Housing Screws 7. Wood Screw 8. Safety Cable FR -W 2 30 1 Roboto XL Instructions 17...

  • Page 18: Making The Electrical Connections

    L” from the receiver. 8. Connect the white (neutral) wire from the ceiling to the white wire marked “AC in N” from the receiver. FR - W 2 1 01 FR - W 2 3 0 1 Wynd XL Instructions Roboto XL Instructions...
  • Page 19 Follow the steps above to connect the fan to your household wiring. Use the plastic wire nuts with your fan. Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections. FR-W 2 30 1 Roboto XL Instructions 19...

  • Page 20: Finishing The Installation

    3. Install canopy screw ring as shown (Fig. 7). Outlet Box 2. Hanger Bracket 3. Screws 4. Canopy 5. Canopy Screw Cover FR - W 2 1 01 FR - W 2 3 0 1 Wynd XL Instructions Roboto XL Instructions...

  • Page 21: Installing The Optional Wall Control

    (Hot In) (Neutral) (Neutral) (Neutral) (Copper/Ground) (Ground) (Ground) *Bare or Green Fan Switch leg (Hot out to Fan) From Breaker From Breaker * Home Wiring may vary *Home wiring may vary FR -W 2 30 1 Roboto XL Instructions 21...
  • Page 22 If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3 Wall Control 1 Wall Control 2 Line/Hot Green (Green or Bare) Neutral/White FR - W 2 10 1 FR - W 2 3 01 Wynd XL Instructions Roboto XL Instructions...

  • Page 23: Installing The Optional Wall Control

    NOTE: Traveller wiring to fan is strictly for power and allows for emergency shut off via Modern Forms wall control. Signal is wireless from wall control to receiver. Replacing Pre-Existing Switch (Hot out to fan)

  • Page 24: Controlling The Fan

    If you are controlling multiple fans with one controller, fans/lights may be synced by referring to Fig. 9B and instructions on the next page. FR- W 2 1 0 1 FR- W 2 3 0 1 Wynd XL Instructions Roboto XL Instructions...
  • Page 25 All fans will be set to summer mode (CCW rotation). This will bring all fans controlled by the remote into sync. FR-W 2 30 1 Roboto XL Instructions 25...

  • Page 26: Reset

    In addition to the included remote control, you can control your fan with a wall control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play.
  • Page 27 Press the reset button on the receiver until the fan emits 3 beeps indicating the reset receiver emits 3 beeps indicating the reset For support videos on installation and smart home device intergration FR -W 2 30 1 Roboto XL Instructions 27...

  • Page 28: Accessories

    Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White FR- W 2 1 0 1 FR- W 2 1 0 1 FR- W 2 3 0 1 Wynd XL Instructions Wynd XL Instructions Roboto XL Instructions...
  • Page 29 Downrod XF-12 - 12” Downrod | XF-18 - 18” Downrod XF-24 - 24” Downrod | XF-36 - 36” Downrod XF-48 - 48” Downrod | XF-60 - 60” Downrod XF-72 - 72” Downrod FR-W 2 30 1 Roboto XL Instructions 29...

  • Page 30: Troubleshooting

    FR- W 2 1 0 1 FR- W 2 1 0 1 FR- W 2 3 0 1 Wynd XL Instructions Wynd XL Instructions Roboto XL Instructions...
  • Page 31 Confirm your network is compatible by checking your router settings or contact your router manufacturer. 2. Make sure your network’s SSID is not hidden. 3. Your fan does not support 5 GHz network connectivity. connection. FR -W 2 30 1 Roboto XL Instructions 31...

  • Page 32: Troubleshooting Cont

    10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
  • Page 33 What is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 34 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
  • Page 35 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
  • Page 36 FR-W 2 3 01 modernforms.com...
