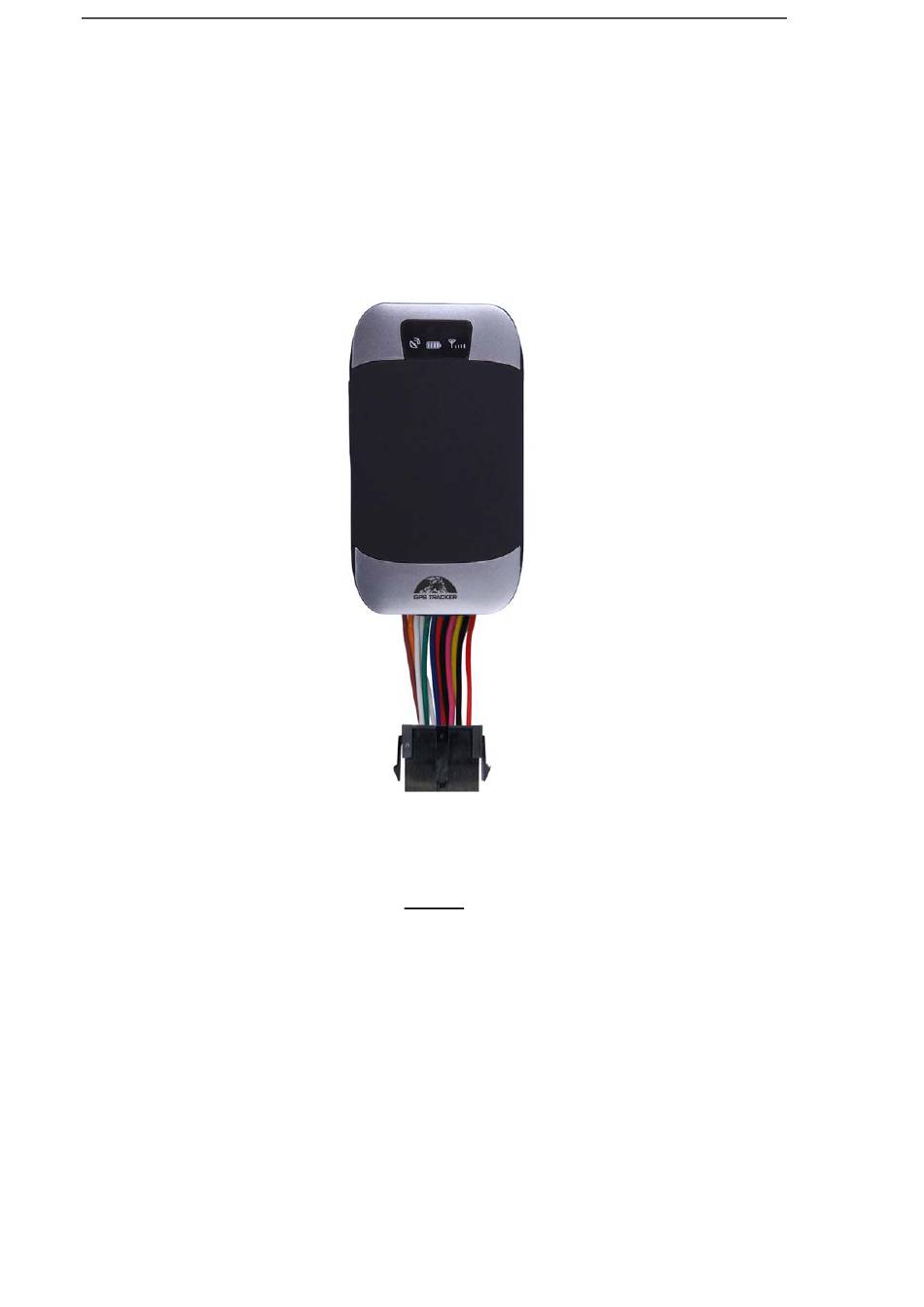

User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and
correctly. Make sure to read this manual carefully before using this product. Please note that specification
and information are subject to changes without prior notice in this manual. Any change will be integrated
in the latest release. The manufacturer assumes no responsibility for any errors or omissions in this
document.

Advertisement

Table of Contents
loading

Related Manuals for Coban GPS-303

Summary of Contents for Coban GPS-303

  • Page 1 User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release.

  • Page 2: Table Of Contents

    Contents 1.   SUMMARY ..............................4   2.   APPLICATIONS ............................4   3.   HARDWARE DESCRIPTION ........................4   4.   ACCESSORIES ............................5   5.   SPECIFICATIONS ............................6   6.   OPERATING INSTRUCTIONS ......................... 6   6.1.   ........................
  • Page 3 6.27.7   Movement alarm .......................... 16   6.27.8   Overspeed alarm .......................... 16   6.27.9   Fuel Alarm ........................... 16   6.28.   A ......................... 17   LARMS UNDER TATE 6.28.1   Door Open Alarm ........................17   6.28.2   ACC Alarm ...........................

  • Page 4: Summary

    1. Summary 1.1 Working Based on existing WCDMA/GSM/GPRS network and GPS satellites, Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management，this product can locate and monitor any remote targets by SMS or internet. 1.2 Features 1.2.1 Built-in WCDMA/GSM, GPS antenna, compact, elegant appearance. 1.2.2 Support GPS and LBS (Location based service) double tracking solutions.

  • Page 5: Accessories

    4. Accessories Applicable Photo Name Specifications model Harness 12PIN Standard 12V/40A or Relay Standard 24V/40A siren 12V/24V Optional Fuel sensor Optional Remote Optional for control type G...

  • Page 6: Specifications

    5. Specifications Specification Content 9.6×5.3×1.6cm Weight Network WCDMA/GSM/GPRS WCDMA (3G): 850MHz/1900MHz/2100(only for CE) Band GSM (2G): 850/900/1800/1900MHz GPS sensitivity -159dBm GPS accuracy Cold status 45s GPS start time Warm status 35s Hot status 1s Car power 12 V -24V supply Back up battery Chargeable 3.7V 350mAh Li-ion battery -40°C to +85°C...

  • Page 7: Sim Card Installations

    Wiring diagram 6.1.5 Note: The pink wire can be connected to the original car horn; it can also be connected to the siren bought with the tracker. 6.1.6 Know about the type of the door trigger is positive or negative trigger. Please connect the green wire to the door control circuit if it is positive, and connect blue wire if it is negative.

  • Page 8: Initialization

    Blue LED: LED flashes for each second for normal reception, and flashes 3 times for each second (At least 4 satellites have a signal-to-noise ratio of 38 or more) No GPS reception, LED OFF. 6.5. Initialization Send SMS “begin+password” to the unit, it will reply “begin ok” and initialize all the settings to default factory settings.（default password: 123456）...

  • Page 9: Auto Track Continuously

    6.8.2. If you call it from authorized phone number, it will hang up and report a real-time location as below: *When lost fix to satellites, the message will includes the last known GPS position and the LAC code of current position as well. 6.9.

  • Page 10: Gps Drift Suppression

    6.10.3 The angle must be 3 digits Arabic numbers, default angle value is 30 degree. 6.11. GPS drift suppression 6.11.1 This function is deactivated by default, send "suppress+password" to tracker, it will reply" suppress drift ok". The GPS data stop updating if vehicle is not driving (ACC is OFF) and latitude and longitude always keep same, and GPS data updates automatically when vehicle is moving.

  • Page 11: Data Logging

    mode. 6.15. Data logging 6.15.1 Auto logging：When the tracker device lost GSM signals or fall offline from GPRS, tracker will log the tracking position and alerts automatically in the SD card on the basis of the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or web platform (server), but the logged tracking data should be loaded to the web platform via SMS command.

  • Page 12: Acc Working Alarm

    And then send the code to carrier’s phone number, and forward the message from carrier to mobile phone number. Take china mobile for example, mobile users can send “ye” to china mobile number 10086, and 10086 will send user’s balance message to tracker, and then tracker forward the balance message to mobile phone number , following is an illustration how this function works.

  • Page 13: Function Of Remote Controller (Option , For Modelg Only )

    adjust zero and reply “ oilzero ok!” . The fuel check is 0%. 6.21.3 Full calibration: Send “oilfull+password “ to tracker when the fuel tank is full , then tracker will adjust the full range and reply “ oilfull ok! “ . The fuel check is 100%. 6.21.4 Tracker can connect to car original voltage type fuel level sensor ranging from 0-5V.

  • Page 14: Disarm

    Send silent+password to tracker, it will reply silent ok! that means tracker enters ARM & silent mode, Siren won’t be sound after alarm is triggered , but tracker will send alarm SMS to authorized number. Send disarm+password to quit ARM & silent mode. 6.24.2 Set up silent mode by remote controller (Option for model G) Press in disarm state for 0.5 second, the siren will beep one time, the car will enter ARM &...

  • Page 15: External Power Off Alarm

    6.27.2 External Power off alarm This function activates by default. Send “ extpower+password+space+on” to activate, it will send SMS “power alarm+latitude/longtitude” to authorized numbers every 3 minutes when external power is cut off. Cancel: Send SMS “ extpower+password+space+off” to deactivate it. 6.27.3 GPS blind Spot alert This function deactivates by default, send SMS “gpssignal+password+space+on”, it will send alert SMS “no gps+last valid latitude/longitude before lost signal”...

  • Page 16: Movement Alarm

    6.27.6.2 Delete area Send SMS command:"noarea+password+space+area name” to tracker, it will reply:"noarea ok". 6.27.6.3 rename and set distance Send SMS command "rename+password+space+old name;new name,distanceM" to tracker, if name is not repeated and area doesn't cover others, it will reply "rename ok!" for successful configuration. Example: Send"rename123456 area01;school,800M", it means the new area name is "school", and covers area of a radius of 800 meters.

  • Page 17: Larms Under Rm Tate

    the vehicle is stopped, the tracker will send "oil: xx% + Geo-info" to the authorized number at interval of 3 minutes. The siren beeps 20S. Cancel: Send SMS command “ nooil+password” to tracker. 6.28. Alarms under Arm State 6.28.1 Door Open Alarm The unit will send SMS “Door alarm+lat/long”...

  • Page 18: Leep

    6.29. Sleep 6.29.1 Sleep mode Send “sleep+password+space+on”, tracker device will reply “sleep on ok!”. If you didn’t operate the device in the last 5 minutes, there is no alarm being triggered, then it will enter sleep mode when vehicle stop running, GPS module will be turned off, call, SMS and Vibration can wake it up. And less gprs traffic function will be activated by default in sleep mode.

  • Page 19: Time

    6.32. Set up Terminal (local) Time Send SMS command “time+space+zone+password+space+time” to the tracker unit, If succeed, It will reply “time OK” For example: Send SMS “time zone123456 8”, 8 is Chinese time zone, If your country time zone is minus, send SMS “time zone123456 -8”. 6.33.

  • Page 20: Ctivate "Fuel " Value In Gprs Data

    In most countries, the user name and password involving GPRS login are not compulsorily necessary, therefore, the entry can be skipped. For those countries requiring user name and password, please configure as following: Send SMS “up+password+space+user+space+password”If succeeded, “user,password ok” is returned by the tracker in SMS.

  • Page 21: Instructions For Web Platform And Mobile App

    6.38. Instructions for web platform and mobile APP Users need to register an account on www.gpstrackerxy.com before use web or APP platform, account name and password is the same on web/APP platform. register an account 6.38.1 1.choose the 2.Validate right server to your IMEI is login in valid or not...
  • Page 22 5. add terminal 6. add terminal 7. enter IMEI 8. Device name 9.choose location icon 10. Save 11. the newly registered device is offline in grey color Configure 6.38.4 your tracker to web platform to track it online Step 1：set APN，refer to 6.35.1 Step 2：set GPRS user name and password，refer to 6.35.2 Step 3：set IP and port, please use the corresponding IP and port of the server you choose, refer to 6.35.3...
  • Page 23 6.38.5 If the tracker is always offline (grey color), make sure the SIM card subscribe the GPRS service, and have money to surf the Internet, you can use phone to test the SIM card can surf the Internet or not. please check the APN, user name, password, IP, port settings are correct, refer to 6.30.
  • Page 24 5. Click here to operate the device 6.38.6.3 login in and use the mobile APP under SMS version 2.Use”mc” as the initial user ID,password is 8888, change the user name and password after entry 1.Choose SMS LOGIN 3.Click “login”...
  • Page 25 4.Choose “add device” 5. Filling the device name 6.Choose the type 7. Filling the SIM PHONE NUMBER of the device 8.Filling the tracker’s password 9.Click “ok” 10. Click the icon, and display the list 11. Click here to operate the device...

  • Page 26: Cautions

    13.Click buttons to send commands 14.Filling parameters manually and then click “send” 12.Click here to see more menu Remarks: “SMS login” version on Android phone can track the positions and show alarm on t he map; but "SMS login" version on IOS can only send commands due to the confined policy, it cannot track the positions and show alarm on the map.

  • Page 27: Faults & The Solutions

    8. Faults & the Solutions Solution Faults Please check if built-in battery is charged, and power wires connected well. Fail to turn it on  Please check if SIM card installed correctly.  Please check if SIM card is WCDMA/GSM network. No GSM signal ...
  • Page 28 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
