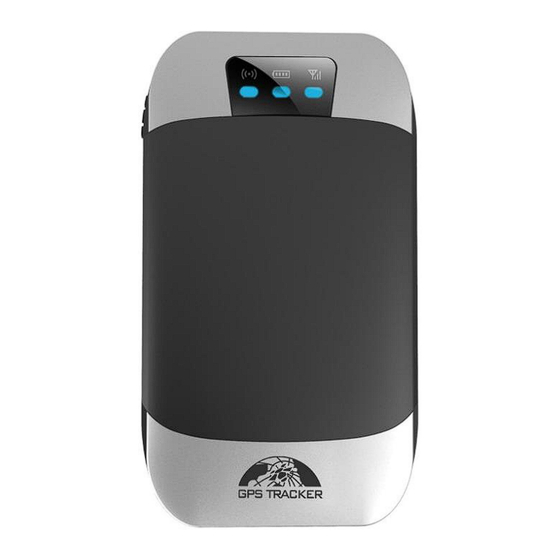

Coban GPS303F User Manual

Gsm/gprs/gps tracker
Hide thumbs

Advertisement

Quick Links

Download this manual

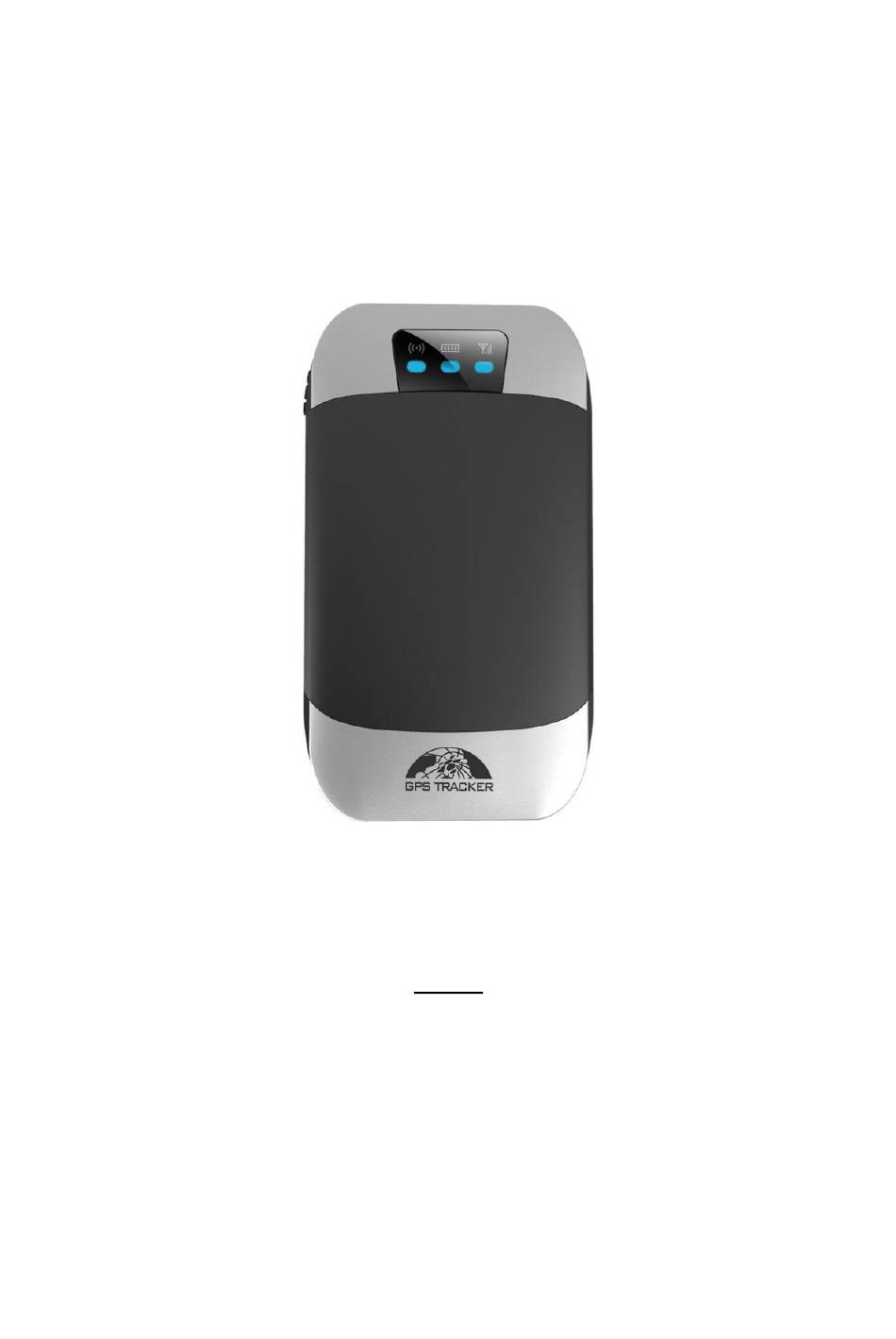

GSM/GPRS/GPS Tracker
User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes without
prior notice in this manual. Any change will be integrated in the latest release. The
manufacturer assumes no responsibility for any errors or omissions in this document.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GPS303F and is the answer not in the manual?

Questions and answers

Related Manuals for Coban GPS303F

Summary of Contents for Coban GPS303F

  • Page 1 GSM/GPRS/GPS Tracker User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    Contents 1. Summary ............................. 4 2. Applications............................4 3. Hardware Description ......................... 5 4. Accessories ............................5 5. Specifications ............................6 6. Usage ..............................6 6.1. Terminal Installation........................ 7 6.2 SIM CARD Installations ......................7 6.3 Turn on the Tracker Device..................... 8 6.4 GSM/GPS LED Indicator ......................
  • Page 3 6.25.1 Door alarm......................... 24 6.25.2 ACC alarm ......................... 24 6.25.3 Shock Sensor alarm ....................24 6.26 Alarm without GSM network service ................. 25 6.27 Check the Vehicle State ......................25 6.28 Reset Hardware........................26 6.29 Sleep Mode ........................... 26 6.29.1 Sleep by time ......................26 6.29.2 Sleep by shock sensor ....................

  • Page 4: Summary

    1. Summary 1.1 Working Based on existing GSM/GPRS network and GPS satellites, Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management，this product can locate and monitor any remote targets by SMS or internet. 1.2 Features 1.2.1 Built-in GSM, GPS antenna, compact, elegant appearance. 1.2.2 Support GPS and LBS (Location based service) double tracking solutions.

  • Page 5: Hardware Description

    3. Hardware Description GPS/POWER/GSM Indicator & Micro ON / OFF Button & USB Slot 4. Accessories Applicable Photo Name Specifications model Harness 12PIN Standard Microphone 1.5m Standard Relay 12V/40A or 24V/40A Standard...

  • Page 6: Specifications

    siren 12V/24V Optional Fuel sensor Optional Optional for Remote control type G 5. Specifications Specification Content 8.9× 5.0× 1.6cm Weight GSM/GPRS Network 850/900/1800/1900Mhz Band -159dBm sensitivity accurancy Cold status 45s GPS start Warm status 35s time Hot status 1s Car power 12 V -24V supply Back up...

  • Page 7: Terminal Installation

    6.1. Terminal Installation 6.1.1 Please ask the qualified engineers to install it. 6.1.2 Do not install it in an environment which is over GSM performance index. 6.1.3 Pay attention to make installation location preventing water and dust. 6.1.4 Find the 12 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below: Wiring diagram 6.1.5 Note: The pink wire can be connected to the original car horn;...

  • Page 8: Turn On The Tracker Device

    6.2.2 Please make sure the SIM card is for GSM network and able to execute the function of incoming calls display, no calls can be diverted and the PIN code is locked. The SMS format must be TXT format, and can’t recognize the PDU format.

  • Page 9: Authorization

    6.6.2 Be sure to keep the new password in mind, you have to upload the software to restore the original setting in case of losing the new password. 6.6.3 Attention: Make sure the new password is in 6 digits Arabic numbers, or else the tracker cannot recognize the password.

  • Page 10: Single Locating

    country code before the cell phone number. You should authorize your number in international format as follows: “admin123456 008613322221111” to tracker to set 13322221111 as an authorized number. 6.8 Single Locating 6.8.1 If there aren’t any authorized number set-up, it will reply all calls with a location report;...

  • Page 11: Turning Points Update Automatically

    fix030s005n123456 6.9.2 Track with unlimited times upon time interval: Send SMS “fix030s***n+password” to the tracker device, it will reply the latitude & longitude continuously at interval of 30 seconds. e.g. fix030s***n123456 Note: the interval must not less than 20s. 6.9.3 Smart track upon time and distance interval: 6.9.3.1 Please set "track with unlimited times upon time interval"...

  • Page 12: Gps Drift Suppression

    6.10.2 Send "angle+password+space+angle" to tracker, it will reply" angle ok". e.g angle123456 030 6.10.3 The angle must be 3 digits Arabic numbers, default angle value is 30 degree. 6.11 GPS drift suppression 6.11.1 This function is deactivated by default, send "suppress+password" to tracker, it will reply"...

  • Page 13: Location Based Service (Lbs) / Cell-Id Locating

    Guangdong, china. e.g. address123456 6.13 Location based service (LBS) / Cell-ID Locating. If the tracker cannot establish a solid GPS Fix, it will calculate its location using Cell-ID GSM locating, Location reports will include the GPS coordinates of the last known LAC code to the “Manual Track”...

  • Page 14: Data Load

    it will reply “save ok”, and will store the lat, long locations every 30 seconds for 5 times. (S: second, m: minute; h: hour). 6.15.3 Unlimited storage：Send sms:”save030s***n+ password” to tracker device, it will reply “save ok”. Cancel logging: Send SMS “nosave+password”, e.g. nosave123456 6.15.4: Storage Clearance: Send SMS: “clear+ password”...

  • Page 15: Forward The Third Parties' Message

    6.17. Forward the third parties’ message Send SMS "forward+password+space+third parties phone number" 6.17.1 from authorized phone number, tracker will reply"forward ok", and supports 1 third parties phone numbers at most. For example, set the phone number of the service provider of the sim card in the tracker, when charge remind message coming in, tracker will forward it to authorized phone number.

  • Page 16: Alarm Function

    6.19 Alarm Function 6.19.1 Low battery alarm Send SMS “lowbattery+password+space+on”, it will send 6.19.1.1. SMS “low battery+latitude/longitude” to authorized numbers 2 times in total when voltage of battery is going to be about in 15 minutes interval 3.55V. 6.19.1.2 This function activates by default, send SMS “lowbattery+password+space+off”...

  • Page 17: Sos

    6.19.3.2 Send SMS “gpssignal+password+space+off” to deactivate. 6.19.4 SOS Long Press the SOS button for 3 seconds（For model F, press button on remote controller for 3 seconds）, the tracker device will send SMS “help me!+lat./long.” to all the authorized numbers at interval of 3 minutes.

  • Page 18: Multi-Area Management

    6.19.6 Multi-area management 6.19.6.1 Set Area Send SMS command "area+password+space+latitude,longitude+space+areaname,distanceM" to tracker(distance unit: M for meter, K for kilometer), it will reply "area01 ok". Example: Send "area123456 22.353648,113.543678 school,800M". Note: 5 areas at most and the distance between two points can't be less than the total distance in the 2 commands, and different areas can't cover each other.

  • Page 19: Movement Alarm

    name+latitude & longitude" to all the authorized phone number, and send same SMS when goes out of the area. 6.19.6.5 Deactivate Multi-area management Send SMS command "area+password+space+off" to tracker, it will reply"area off ok!" 6.19.7 Movement alarm Set up: when the unit stays immobile in a place for 3-10 minutes 6.19.7.1.

  • Page 20: Acc Working Alarm

    minutes. Cancel: Send SMS “nospeed+password” to deactivate the overspeed alarm. Note: The recommended speed should be not less than 30km/h. For below that rate, it will be effected the accuracy by GPS signals drift etc. 6.19.9 ACC working alarm This function is deactivated by default. To active this functions, 6.19.9.1 send "ACC+password"...

  • Page 21: Cut Off The Oil And Power System

    during driving, or oil theft/leakage when the vehicle is stopped, the tracker will send "oil: xx% + Geo-info" to the authorized number at interval of 3 minutes. The siren beeps 30S. 6.19.10.2 Cancel: Send SMS command “ nooil+password” to tracker. 6.20 Cut off the Oil and Power System 6.20.1 Send command “stop+password”...

  • Page 22: Function Of Remote Controller (Option, For Model G)

    6.21Function of Remote Controller (Option, f or model G) Button Function Descriptions Press for 0.5 second, the siren will beep one time. DISARM Press for 0.5 second, the siren will beep two times. Press for 0.5 second when it is in disarm state, the siren will ARM &...

  • Page 23: Silent Mode

    and siren beeps 3 times, that means door is not closed. 6.23Silent Mode 6.23.1 Set up silent mode by SMS Send silent+password to tracker, it will reply silent ok! that means tracker enters ARM & silent mode, Siren won’t be sound after alarm is triggered , but tracker will send alarm SMS to authorized number.

  • Page 24: Alarms Under Arm State

    6.25 Alarms under Arm State 6.25.1 Door alarm The unit will send SMS “Door alarm+lat/long” to the authorized number at interval of 3 minutes when the door of the car opens in arm status; Siren will be sound for 20 seconds, and repeat again after stop 20 seconds, send “disarm+password”...

  • Page 25: Alarm Without Gsm Network Service

    command" sensitivity+password+space+1" . Second level: Alarm will be triggered after detect 8 times vibration in 2 seconds, send command" sensitivity+password+space+2". Third level: Alarm will be triggered after detect 25 times vibration in 5 seconds, send command" sensitivity+password+space+3". 6.26 Alarm without GSM network service When the car is in the place without GSM network service, siren will be sound under non-silent mode if alarm is triggered (door, sensor, ACC), but no SMS alarm will send to authorized number.

  • Page 26: Reset Hardware

    6.28 Reset Hardware Send SMS “reset+password” to tracker device, it will reply “reset ok”. And the GSM module and GPS module in the tracker will be reset. 6.29 Sleep Mode 6.29.1 Sleep by time Send SMS command "sleep+password+space+time" to tracker device, tracker will reply "sleep time ok"...

  • Page 27: No Sleep Mode

    6.29.4 No sleep mode Send SMS command”sleep+password+space+off” to tracker device , tracker will reply”sleep off ok”. Tracker GSM,GPS,LED will work without sleep .This mode is the default mode. e.g. sleep123456 off 6.30 Start Work on specific time Send "schedule+password+space+1h"to tracker , it will awake every one hour and send geo-info(m:minute,h:hour,d:day) .

  • Page 28: Tcp / Udp Switch

    -8”. 6.33 TCP / UDP Switch Send command: "gprs+password,0,0" switch back to TCP mode, this is the default mode. Send command:"gprs+password,1,1" switch to UDP mode. 6.34 Configure parameters by USB Connect the gps tracker to computer with the optional USB cable, open gps tracker’s flash drive and then open with notepad to operates according the tips.

  • Page 29: Gprs User Id And Password Setup

    6.35.1.3 e.g. send SMS command “APN123456 CMNET”. If succeeded, “APN OK” is returned by the tracker in SMS. Notes: 123456 refer to password of tracker and CMNET is the APN of China Mobile (One of GSM Operator in China). 6.35.2 GPRS User ID and password Setup In most countries, the user name and password involving GPRS 6.35.2.1 login are not compulsorily necessary, therefore, the entry can be skipped.

  • Page 30: Switch To Gprs Mode

    e.g, Send SMS command “adminip123456 202.104.150.75 9000” 6.35.3.2 to the tracker device, If succeeded, “adminip OK” is returned by the device in SMS.( 123456 is default password，202.104.150.75 is IP，9000 is port). 6.35.4 Switch to GPRS mode The default mode is “SMS” 6.35.1 Send SMS “GPRS+password”...

  • Page 31: Web Platform And Mobile App Instructions

    Activate this function: Send "less gprs123456 on", tracker will 6.37.2 reply "less gprs on ok". Deactivate this function: Send "less gprs123456 off", tracker will 6.37.3 reply" less gprs off ok". Note: 123456 is the password of tracker, and replace it with the new if you have changed.

  • Page 32: Faults & The Solutions

    Don’t use & store the unit in dusty places. Don’t put the unit in overheated or overcooled places. Handle carefully. Don’t vibrate or shake it violently. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent. Don’t paint the unit, this may cause some foreign materials left in between the parts.
  • Page 33 A more open view of the sky is recommended to make sure the device No GPS Signal can receive the GPS signal normally. SMS reply fail Password incorrect or wrong sms commands format Call without SMS reply or cannot receive alarm Authorized number is wrong or without setting any authorized number Stop engine fail Check the relay for engine cut is right connected.
