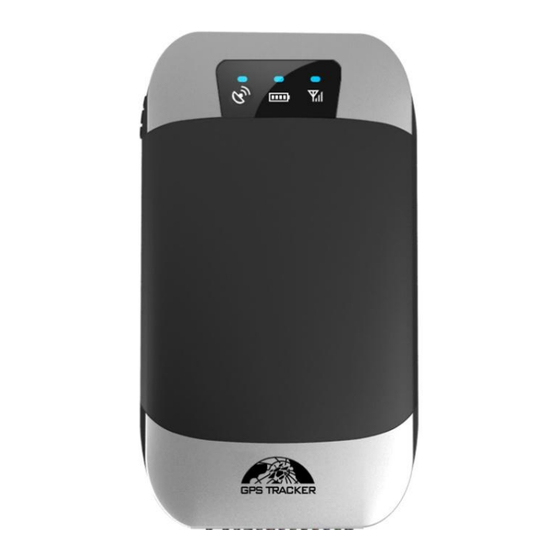

Coban 303FG User Manual

Gps tracker
Hide thumbs

Advertisement

Quick Links

Download this manual

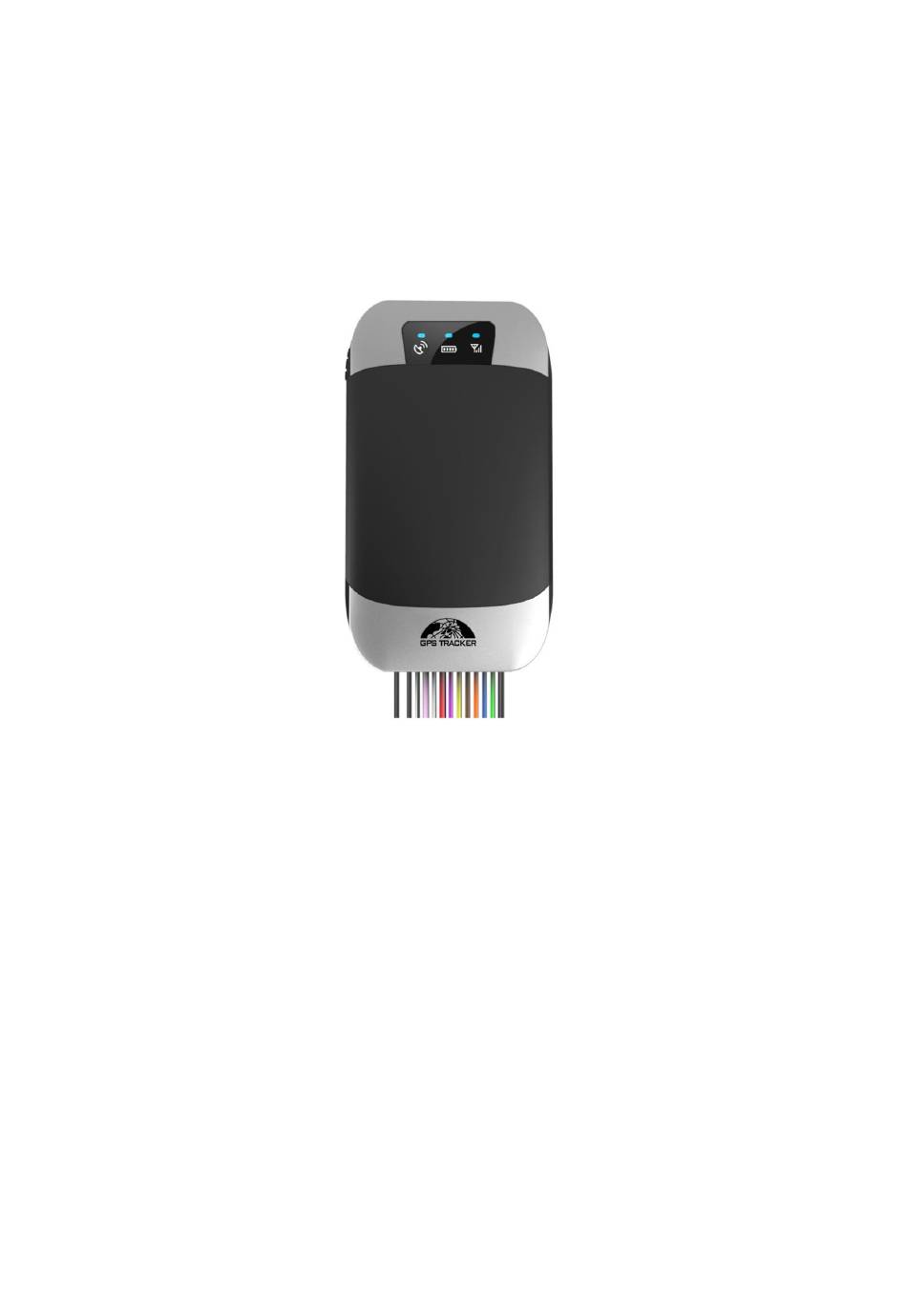

GPS Tracker User Manual
Thank you very much for purchasing our GPS locator. The user manual will explain in detail how to
operate this product. Therefore please be sure to read it carefully before using the product. Subject to
change without prior notice, each change will be published in the latest product sale. The
manufacturer assumes no legal responsibility for errors and omissions in this manual.
303FG-2-V3.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the 303FG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coban 303FG

Summary of Contents for Coban 303FG

  • Page 1 Therefore please be sure to read it carefully before using the product. Subject to change without prior notice, each change will be published in the latest product sale. The manufacturer assumes no legal responsibility for errors and omissions in this manual. 303FG-2-V3.4...

  • Page 2: Specifications

    Specifications Product name GPS Tracker Model 303FG DIM. 9.6×5.3×1.6cm Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GPS sensitivity -165dBm GPS accuracy Cold status Time To First Fix Warm status 35s Hot status Applicable car power 12V-24V Battery Chargeable 3.7V 350mAh Li-ion battery Storage Temp.

  • Page 3: Mobile App

    5. The pink wire can be connected to the original car alarm horn or the alarm horn purchased together. 6. Understand that the vehicle door trigger type is positive trigger or negative trigger. Connected to the green wire if it is positive trigger, and connected to the blue wire if it is negative trigger. 7.
  • Page 4 Scan the QR code to download APP Google Play、App Store search “BAANOOL IOT” to download it Register Open BAANOOL IOT, register a new account and login, Choose “BAANOOL car “to enter it. Bind Device Click the ‘Add Device’ button on the home page and scan the IMEI number to bind a new device. Note that the IMEI number is attached to the side of the device, and the IMEI of the device can also be manually entered for binding.
  • Page 5 Mobile APP and BAANOOL IOT’s Web Positioning strategy You can click the positioning button to select the working mode and positioning strategy. When stationary, you can set a longer period of time to report location information (such as 1 hours), and when it moving, you can set a short period of time to report location information frequently (such as 10 second).

  • Page 6: Remote Immobilizing

    Remote immobilizing Delayed immobilizing, Immobilizing immediately, Resume fuel and power supplying Arm/ Disarming Arm, silent arm, disarm. Alarm function in arming state 8.5.1 Door open alarm When the system is in the armed state and the car door is illegally opened, the device will trigger the door open alarm and the alarm siren will beep for 20 seconds.

  • Page 7: Other Function Settings

    8.6.5 Movement alarm Draw a circle with the current location of the tracker as the center. Once the tracker exceeds the radius, a movement alarm will be triggered. 8.6.6 Over speed alarm After setting the speed value, an overspeed alarm will be triggered when the device speed exceeds the set threshold.

  • Page 8: Sms Functions

    /Car locate press disarm key to stop. * If you prefer to use the mobile APP and web platform to manage your device, you do not need to pay attention to the following content. 10 SMS functions GPRS and SMS work at the same time by default, If you only use SMS to manage the device, it is recommended to turn off GPRS by referring to the command of 10.21 to save power and traffic.
  • Page 9 means unlimited times. Cancel: nofix+password, Response: nofix ok 10.5 Remote immobilizing Delayed immobilizing Command: stop+password. When the current speed of the vehicle is greater than 20km/h, the command will not be executed immediately. it will be executed only after the vehicle speed is less than 20Km/h.

  • Page 10: Other Alarms

    10.8 Other alarms 10.8.1 Low battery alarm It is activated by default, when the battery voltage is close to 3.55V, tracker will send message “low battery + latitude & longitude” to authorized numbers for 2 times at 15 minutes interval. Turn off: lowbattery+password+space+off, response: lowbattery off ok Turn on: lowbattery+password+space+on, response: lowbattery on ok 10.8.2 External power disconnection alarm...

  • Page 11: Check Status

    10.10 Listen The default mode is “Track” mode, dial the device, reply position Command: listen+password, switch to Listen mode, dial the device, enter call Command: tracker+password, restore to Track mode 10.11 ACC ON/OFF Alert This function is OFF by default. If tracker detect “ignition on” signal from ACC wire (white wire), tracker will send “ACC on+latitude&...
  • Page 12 10.17 APN Setting Command: apn+password+space+local apn, response: apn ok Settings are only required when using the APP and web version 10.18 Configure user name and password of GPRS network Command: up+password+space+user+space+Password, response: up ok Settings are only required when using the APP and web version 10.19 Configure server IP/DNS and port Command: adminip+password+space+IP/DNS+space+port, reponse: adminip ok No setup required to use our BAANOOL IOT server,...

  • Page 13: Troubleshooting

    siren 12V/24V Optional Fuel sensor Optional Optional Remote control for G model 12 Cautions Please be sure to follow when using: 1. Keep the tracker used in a dry environment. The humid environment can easily damage internal circuits. 2. Please do not put it in a dusty environment. 3.
