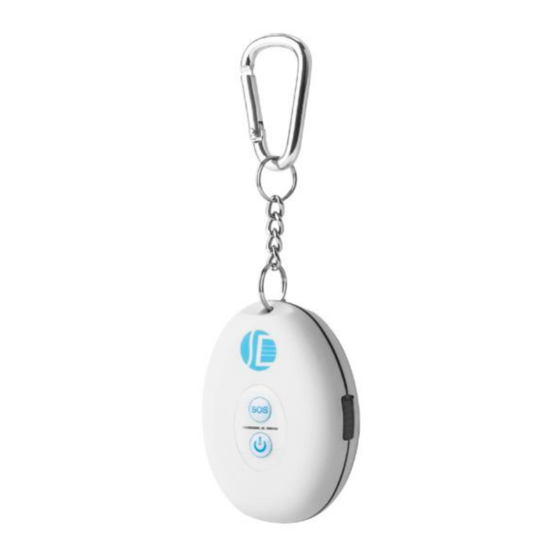

Coban GPS102-B User Manual

Gsm/gprs/gps tracker
Hide thumbs Also See for GPS102-B:

Advertisement

Quick Links

Download this manual See also: User Manual
GSM/GPRS/GPS TRACKER
MANUAL
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in
the latest release. The manufacturer assumes no responsibility for any errors
or omissions in this document.
1

Advertisement

loading

Related Manuals for Coban GPS102-B

Summary of Contents for Coban GPS102-B

  • Page 1 GSM/GPRS/GPS TRACKER MANUAL Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Specifications

    1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. Specifications Content Specs Dim. 63mm x 46mm x 21mm Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GSM chip MT6261 GPS chip Ublox 7020...

  • Page 3: Led Indicator Status

    · Monitor (optional) · Vibration alarm (optional) · Add Smart sleep save power Mode · Add GPX history route record, can check record in Google map · Add AGPS function,receive GPS signals faster · Add built-in storage memory · Add WATERPROOF and dust proof ·...
  • Page 4 Choose a SIM card Quick using 3.1 Put the SIM card into the as picture shows. 3.2 Product testing, need to be closed shell and screw ,then charge the battery in time to keep it working normally. 3.3 take the device to outdoor and the front of device towards sky ,move device to receive gps signal.
  • Page 5 Picture (1) have gps signal Picture (2) no gps signal Pic(1)：Replied real-time tracking information under GPS satellites signal.  Lat:22.67533 lon:114.03913 Positioning of the latitude and longitude values.  Spd：000.1 This refers to the device moving speed. The unit is km/h. ...
  • Page 6 3) The “+” in the command, please don’t type “+”, space means press the space keyboard on your cell phone 4)After admin number setting, all alarm message will send authorization number other cell-phone number send command will not reply 5) If you want standby time longer, pls don't open move alarm, and platform for real-time location tracking.etc 4.1 Admin number setting:( support 5pcs admin number) Command:...
  • Page 7 E.g： move alarm Canceling: Command：nomove123456 Reply：nomove ok 4.3 Low battery alarm When GPS device battery is Less than 30%, it will send SMS:low battery+Ge-info alarm, at 3 minutes interval. Canceling low battery alarm: send“low battery” to the tracker. 4.4. SOS help setting Long Press the SOS button for 3 seconds, the tracker will send SMS “SOS HELP!+lat./long.”...
  • Page 8 4.5 Monitor setting(option, The default do not have this function) The default mode is “tracker” (Tracker mode). Send SMS “monitor+password” to the unit,switch to “monitor” mode.then use your mobile call the device sim card, Can listen to the voices around device E.g: Monitor Canceling Send SMS “tracker123456”...
  • Page 9 4.7 Terminal (local) Time Setting (factory setting GMT 0) Command：time+space+zone123456+space+ local time zone Reply：time ok! E.g： NOTE:( 1 is east 1, - 1 is west 1, 30 is half the time zone) 4.8 Reset device Command：reset123456 Reply：reset ok 4.9 Change the password Command: password123456 888888 Reply :password OK Note:...
  • Page 10 5.2 Add GPX history route record First you have to insert TF card in the device Send SMS: “ gpx+password” to tracker,it will reply : “ gpx ok” , then send SMS: “t001m***n+password” ,it will reply : “ tn ok” Cancel gpx function ;...
  • Page 11 6.2: support Website tracking Open www.gps110.org Use tracker ID login, default password 123456. PC login APP login 6.3Geo-fence setting Point APP fence and Set the diameter of 200 metres, Choose a location as center ,in outdoor(device out of the safety area will alarm)
  • Page 12 7:support Website tracking Open www.gps110.org Use tracker ID login, default password 123456. NOTE:If you insert the correct SIM card and send “GPRS123456”, device in outdoor, still not online.Please set the APN commands If set the first step,device online in platefrom, no need set apn commands After set GPRS mode, every 2min upload data to server by default,you can change upload time interval 8.Set GPS online in platform...
  • Page 13 8. FAQ and processing methods. Instructions/Solutions Please check if battery and USB cable is charged Fail to turn it on  Please check if SIM card installed correctly.  Please check if SIM card is 2G GSM network.  Don’t turn on the PIN code No GSM signal ...
