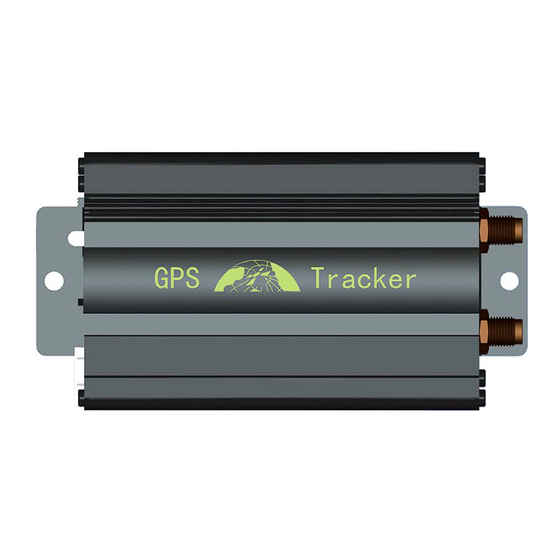

Coban K103B User Manual

Gsm/gprs/gps vehicle tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Disponible en
GSM/GPRS/GPS Vehicle
Tracker Model A/B User
Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes without
prior notice in this manual. Any change will be integrated in the latest release. The
manufacturer assumes no responsibility for any errors or omissions in this document.
WWW.SYRED.MX

Advertisement

Table of Contents
loading

Related Manuals for Coban K103B

Summary of Contents for Coban K103B

  • Page 1 Disponible en GSM/GPRS/GPS Vehicle Tracker Model A/B User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    Contents Function Introduction ......................4 Applications ........................4 Hardware Description ......................4 Accessories ........................5 Specifications ........................6 Operating Instructions ......................7 6.1 Terminal Installation ....................7 6.2 SIM CARD Installations .................... 8 6.3 Turn on the Tracker Device ..................8 6.4 GSM/GPS LED Indicator ..................
  • Page 3 6.27.1 Low battery alarm ..................16 6.27.2 Power off alarm .................... 16 6.27.3 GPS blind Spot alert ..................16 6.27.4 SOS ......................16 6.27.5 Geo-fence ..................... 17 6.27.6 Multi-area management ................17 6.27.7 Movement alarm ..................18 6.27.8 Over speed alarm ..................18 6.27.9 Fuel alarm ....................

  • Page 4: Function Introduction

    1. Function Introduction 1.1. This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

  • Page 5: Accessories

    （1）GSM Antenna connector （8）Shock sensor port （2）SIM card slot （9）Harness Port （3）SIM card slot Pop-up switch （10）GSM/GPS LED （4）MicroSD slot （11）Backup battery switch （5）Microphone jack （12）Remote controller antenna(Optional for Model B only) （6）Micro USB （7）GPS Antenna connector 4. Accessories photoes NAME note GPS Antenna...

  • Page 6: Specifications

    Harness 10PIN 12V/40A to 24V/40A Relay according to vehicles Shock sensor Option for both model A and B Siren Option for both model A and B Remote controller Option for model B ONLY Fuel Sensor Option for both model A and B 5.

  • Page 7: Operating Instructions

    Operation Temp. -20°C to +65°C Humidity 5%--95% non-condensing 6. Operating Instructions 6.1 Terminal Installation 6.1.1 Please ask the qualified engineers to install it. 6.1.2 Do not install it in an environment which is over GSM performance index, and please pay attention to fix the antennas in an appropriate position with good signals. 6.1.3 Pay attention to make installation location preventing water and dust.

  • Page 8: Sim Card Installations

    wire if it is negative. 6.1.6 Please put SOS button at the place driver can touch. 6.1.7 Insert the shock sensor plug into the sensor jack. (Shock sensor is Option) 6.1.8 Insert the external monitor Microphone into the monitor jack. 6.1.9 Connect the GPS and GSM antenna to the right connector, and find an appropriate place to fix the antennas to make sure it receives signals well.

  • Page 9: Change Password

    6.6 Change Password 6.6.1 Send SMS “ password+old password+space+new password” to the unit to change the password. For example: send SMS “password123456 888888” to the unit. If succeeded, “password ok” will reply to your cell phone from the device tracker. 6.6.2 Be sure to keep the new password in mind, you have to upload the software to restore the original setting in case of losing the new password.

  • Page 10: Auto Track Continuously

    6.8.3 When lost fix to satellites, it will track by LBS / CELL-ID. And the SMS will include two positions:  GPS coordinates of the last known position.  LAC code. Open web platform and find “manual track”, put code received from tracker in LAC and Cell-ID fields to locate by LBS technology.

  • Page 11: Turning Points Update Automatically

    6.10 Turning points update automatically 6.10.1 The tracker will update the positions automatically to web platform once the vehicle changing driving direction over pre set angle value to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode. 6.10.2 Send "angle+password+space+angle"...

  • Page 12: Monitor

    6.14 Monitor 6.14.1 The command to switch between Tracker mode and Monitor mode are “tracker” and “monitor”.The default mode is “tracker” (Tracker mode). 6.14.2 Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch to “monitor” mode. 6.14.3 Send SMS “tracker+password”...

  • Page 13: Sim Card Balance Inquiry

    For example, set the phone number of the service provider of the SIM card in the tracker, when charge remind message coming in, tracker will forward it to authorized phone number. 6.17.2 Cancel: Send SMS command "noforward+password". 6.18 SIM card Balance Inquiry 6.18.1 Send SMS command "balance+password+space+carrier’s phone number+space+code"...

  • Page 14: Cut Off The Oil And Power System

    6.20 Cut off the Oil and Power System 6.20.1 Send command “stop+password” to tracker, tracker will execute it and reply “Stop engine Succeed”. And it will remain immobile state until next command to resume. 6.20.2 Stop mode Execute immediately: Send command “quickstop+password” to tracker, it will reply “quickstop OK”.

  • Page 15: Arm

    6.23 Arm 6.23.1 Set up arm by SMS Send SMS command “arm+password” to the tracker device in the vehicle. It will reply “Tracker is activated” in both armed and disarmed state, and the SMS command will make the tracker device enter into armed state if the unit currently disarmed. User must stop the engine, (that is ACC is lower voltage).Sending SMS “arm+password”...

  • Page 16: Decide How Many Times Of Alarm Message

    Decide how many times of alarm message 6.26 You can decide how many times of the alarm message to be sent, For those alarm message sent in cycle, you can limit the times the alarm message to be sent. send SMS “...

  • Page 17: Geo-Fence

    6.27.5 Geo-fence 6.27.5.1 Set up a geo-fence for the tracker device to restrict its movements within a district. The unit will send SMS to the authorized numbers when it goes out of this district. 6.27.5.2 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can send SMS“stockade+password+space+latitude,longitude;latitude,longitude”...

  • Page 18: Movement Alarm

    6.27.7 Movement alarm 6.27.7.1 Set up: when the unit stays immobile in a place for 3-10 minutes with GPS signal reception, the user can send SMS“move+password+space+0200” to the tracker (Suppose area of a radius of 200 meters, it supports 4 digits at most. Unit: Meter). It will reply “move OK”.

  • Page 19: External Shock Sensor Alarm(Optional)

    3 minutes when the engine of the car is turned on, that is the key is rotated to “ACC ON” position to start the car in arm state; Siren will be sound for 20 seconds, and repeat again at interval of 20 seconds if the ACC always keep ON. Disarm to stop this alarm 6.28.3 External Shock Sensor alarm(Optional)

  • Page 20: Check The Vehicle State

    ACC Off. No Calling, SMS and any triggered alarm, GPRS disconnect and switch to SMS mode, Work Online Sleep sleep. ACC on or Calling, SMS and any triggered alarm can awake it, and GPRS connect ACC off. No Calling, SMS and any triggered alarm, go to sleep, GPS module ACC Off.

  • Page 21: Check Imei

    6.31 Check IMEI Send SMS command "imei+password" to the device. E.g: Send SMS command "imei123456" to the tracker device, it will reply an IMEI number in 15 digits to your cell phone. 6.32 Terminal (local) Time Setting 6.32.1 Send SMS command “time+space+zone+password+space+time” to the device, If succeed, it will reply “time OK”...

  • Page 22: Less Gprs Traffic

    Notes: 123456 refer to password of tracker and CMNET is the APN of one of china GPRS Network Operator (China mobile). 6.35.2 GPRS User Name and password Setup 6.35.2.1 In most countries, the user name and password involving GPRS login are not compulsorily necessary, therefore, the entry can be skipped.

  • Page 23: Activate "Fuel" Value In Gprs Data

    6.37 Activate "Fuel" value in GPRS data The default format of GPRS data doesn't include "Fuel" value, if you need "Fuel"value, please send “protocol+password 18” to tracker, if succeed, it will reply "protocol 18 ok"; send “protocol+password 12” to change back to default mode, if succeed, it will reply "protocol 12 ok".
  • Page 24 3、Click "register". Pop-up a dialog box, register an account 6.38.2 Login 4、Input the newly registered user ID and password, 6.38.3 Add a terminal 5、add terminal 6、 add terminal 7.enter IMEI 8. name 10、save 9、 choose location icon WWW.SYRED.MX...
  • Page 25 11 .the newly registered device is offline in grey color 6.38.4 Configure your tracker to web platform to track it online step 1：set APN，refer to 6.35.1 Step 2：set GPRS user name and password，refer to 6.35.2 Step 3： set IP and port, please use the corresponding IP and port of the server you choose, refer to 6.35.3 Step 4：switch to GPRS mode，refer to 6.35.4 12.
  • Page 26 2. Filling the registered user ID and 3.Choose the 1. CHOOSE right server GPRS 4.Click”login” 5. Click here to operate the device WWW.SYRED.MX...
  • Page 27 6.38.6.3 login in and use the mobile APP under SMS version 2.Use”mc” as the initial user ID,password is 8888, change the user name and password after entry 1.Choose SMS LOGIN 3.Click “login” 4. Choose “add device” 5. Filling the device name 6.
  • Page 28 10. Click the icon, and display the list 11. Click here to operate the device Click the bu�ons to send commands 14.Filling parameters manually and then click “send” 12.Click here to see more menu WWW.SYRED.MX...

  • Page 29: Cautions

    Remarks: APP on Android phone can track the address and show alarm by SMS; IOS APP can only send commands due to the confined policy 7. Cautions Please comply with the instructions to extend the unit life: 1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry.
