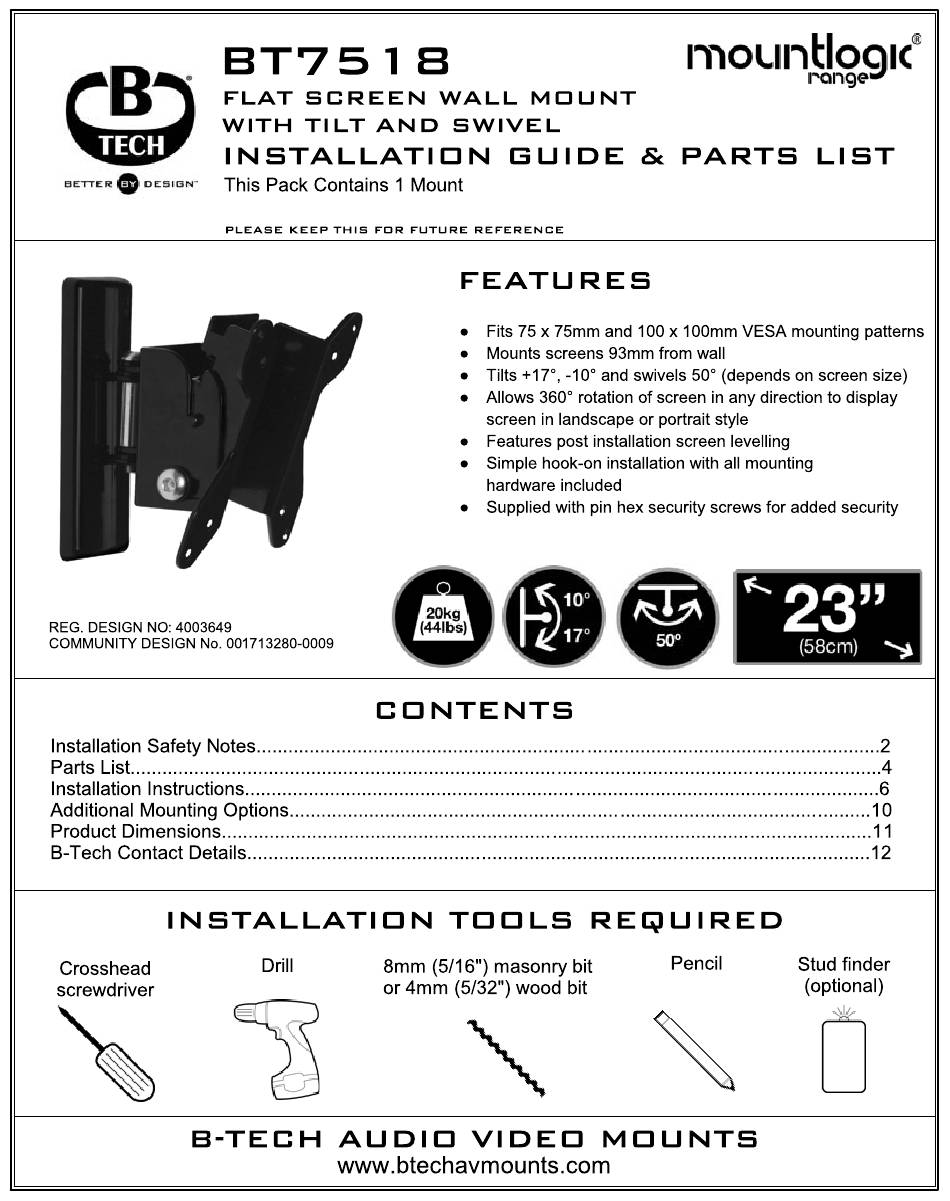

Summary of Contents for B-Tech BT mountlogic 7518/PB
-
Page 2: Installation Safety Instructions
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
- Page 4 BT7518 PARTS LIST Suitable for loads up to 20kg (44lbs) WALL PLATE & TILT BRACKET ASSEMBLY...
- Page 5 PART NAME WALL PLATE U-PIECE M8 PLASTIC WASHER TILT BRACKET INTERFACE PLATE M8 PLASTIC WASHER M8 X 12mm PIN HEX SECURITY SCREW M8 NYLOC NUT M8 X 50mm PIN HEX SECURITY SCREW M8 x 29.5mm SPACER LEFT COVER RIGHT COVER M8 METAL WASHER 2.5mm PIN HEX SECURITY KEY (FOR PART A) 5mm PIN HEX SECURITY KEY (FOR PART 7 &...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Fix wall plate to the wall using one of the following methods. i. Brick / concrete walls. 8mm (5/16") masonry bit ii. Wood / stud walls. ATTACH COVERS STUD FINDER 4mm (5/32") (Optional) wood bit... - Page 7 Attach the interface plate to the flat screen. FLAT SCREEN Hook screen onto wall plate. WALL FLAT SCREEN...
- Page 8 Secure in position and adjust tilt. -10° +17° FLAT SCREEN Levelling the screen. 360°...
-
Page 9: Optional Accessories
Optional - Storage for hex keys. OPTIONAL ACCESSORIES B-Tech AV Component Shelves & Cable Management. BT7087 BT7070 BT7077 BT7070 BT7078... -
Page 11: Wall Plate
114mm 2.5" 4.7" 3.9" 3" 4.5" 8.5mm 0.3" 75mm 6.5mm 3" 0.2" 0.3" 100mm 45mm 3.9" 1.8" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
