BT7532
FLAT SCREEN WALL MOUNT
INSTALLATION GUIDE & PARTS LIST
REG. DESIGN NO: 4003129
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Additional Mounting Options.............................................................................................................10
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
13mm (1/2")
Spanner or socket
B-TECH AUDIO VIDEO MOUNTS
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
TOOLS REQUIRED
10mm (7/16") masonry bit
Drill
or 6mm (1/4") wood bit
www.btechavmounts.com

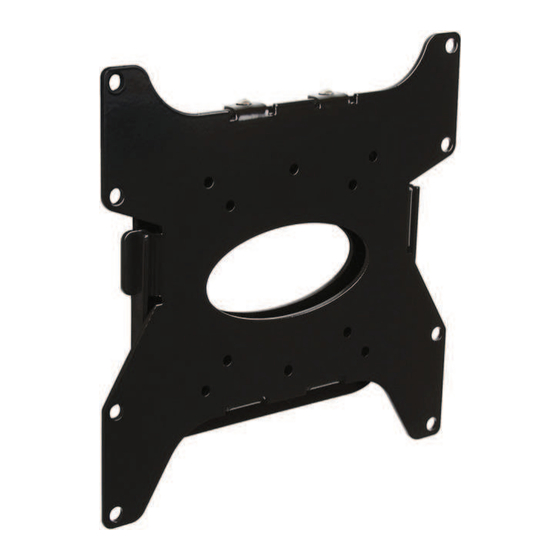

FEATURES
Designed for screens up to 42" (107cm) / 40kg (88lbs)
Fits screens with VESA mounting patterns:
75mm x 75mm and 100mm x 100mm, 200mm
x 100mm and 200mm x 200mm
Low profile design mounts screens only 15mm (0.6")
from wall
Simple 'hook-on' installation with all mounting
hardware included
Pencil
Stud finder
Level
(optional)
(optional)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech Mountlogic Range BT7532
Summary of Contents for B-Tech Mountlogic Range BT7532
-
Page 1: Table Of Contents
Parts List.............................4 Installation Instructions........................6 Additional Mounting Options......................10 Product Dimensions..........................11 B-Tech Contact Details........................12 TOOLS REQUIRED 13mm (1/2") 10mm (7/16") masonry bit Drill Pencil Stud finder Level Spanner or socket or 6mm (1/4") wood bit (optional) (optional) B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. - Page 3 Spoleþnost B-Tech International Ltd. doporuþuje provést instalaci tohoto produktu prost ednictvím odborného instalátora AV þi jinak zp sobilé osoby. Spoleþnost B-Tech International Ltd, její distributo i a prodejci nenesou odpov dnost za škody nebo zran ní zp sobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné...
-
Page 4: Parts List
BT7532 PARTS LIST IMPORTANT This mount must be disassembled prior to installation. Suitable for loads up to 40kg (88lbs) - Page 5 PART NAME WALL PLATE INTERFACE PLATE M4 X 8mm PIN HEX SECURITY SCREW 2.5mm PIN HEX SECURITY KEY (FOR PARTS 3 & A) 3mm PIN HEX SECURITY KEY (FOR PARTS B & C) 4mm PIN HEX SECURITY KEY (FOR PARTS D & E) INTERFACE KIT FLAT SCREEN INTERFACE KIT (FOR ATTACHING MOUNT TO BACK...
-
Page 6: Installation Instructions
THIS MOUNT MUST BE DISASSEMBLED PRIOR TO INSTALLATION INSTALLATION INSTRUCTIONS Fix wall plate to the wall using one of the following methods. i. Brick / concrete walls. 10mm (7/16") masonry bit... - Page 7 ii. Wood / wood stud walls. STUD FINDER (Optional) 6mm (1/4") wood bit...
- Page 8 Attach interface plate to back of screen. FOR SCREENS WITH RECESS FIXINGS SCREW INTERFACE PLATE SPACER FLAT SCREEN RECESS FLAT SCREEN i. Hook screen onto wall plate. FLAT SCREEN WALL...
- Page 9 Secure the screen. FLAT SCREEN WALL OPTIONAL ACCESSORIES B-Tech AV Component Shelves & Cable Management. BT7087 BT7070 BT7077 BT7070 BT7078...
-
Page 10: Additional Mounting Options
ADDITIONAL MOUNTING OPTIONS BT7850 BT7052 This product is compatible with the System 2 range of professional install products from B-Tech Pole Installations ii. Vertical Pole i. Horizontal Pole SAMPLE INSTALLATIONS BT7822 BT7532 BT7532 BT7260 BT7850 BT7325 BT7052 BT4011 BT7322 BT4000... -
Page 11: Product Dimensions
214mm 0.3" 8.4" 156mm 24mm 50mm 6.1" 0.9" 2" 14mm 39° 0.5" 164mm 12° 6.5" 169mm 6.7" These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document. -
Page 12: B-Tech Contact Details
©2010 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design, System 2 & Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
