BT8421

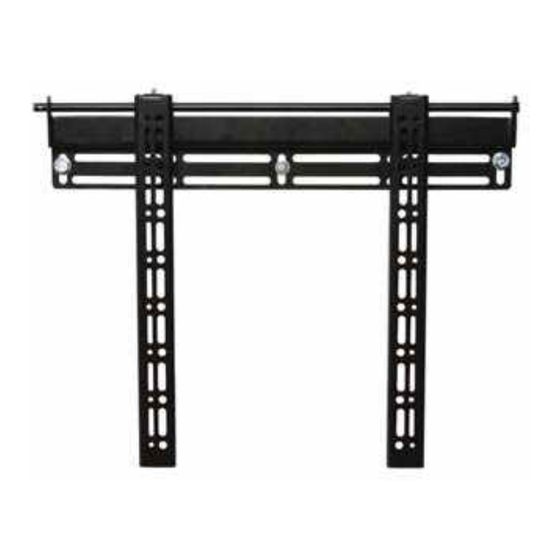

UNIVERSAL FLAT PANEL WALL MOUNT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
COMMUNITY DE
Y
SIGN NO. 001713280-0033
REG. DESIGN NO: 3021713
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
13mm
spanner or socket
B-TECH AUDIO VIDEO MOUNTS
CONTENTS
TOOLS REQUIRED
Crosshead
Drill
screwdriver
www.btechavmounts.com
F
FEATURES
Designed fo f f r medium flat screens up to 55" (140cm) / 35kg
Fits t scre r ens with VESA mounting patt t erns:
75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm,
300 x 300mm, 400 x 200mm, 400 x 300mm and 400 x 400mm
Incorpora r tes post installation scre r r en levelling at wall plate
Low profile design mounts screen only 30mm from wall
Suitable for concrete / brick or up to 16" stud walls
Simple 'hook-on' installation with all mounting hardware included
55"
35kg
(140cm)
10mm masonry bit or
6mm wood bit
Pencil
Level
(optional)
Stud finder
(optional)
Advertisement
Related Manuals for B-Tech BT8421
Summary of Contents for B-Tech BT8421
-
Page 1: Table Of Contents
CONTENTS Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................11 B-Tech Contact Details........................12 TOOLS REQUIRED Crosshead 13mm Drill Pencil Stud finder 10mm masonry bit or Level screwdriver spanner or socket (optional) 6mm wood bit (optional) B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
- defective parts must never be used. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. -
Page 4: Parts List
BT8421 PARTS LIST Suitable for loads up to 35kg... - Page 5 PART NAME HANDWHEEL (TO LEVEL SCREEN) PROTECTIVE PAD (FOR PART 6) 3AF HEX KEY INTERFACE KIT 5mm SPACER 13mm SPACER 24mm SPACER MULTI WASHER FIXING KIT M8 METAL WASHER (FOR PART A1) No. 10 WALL PLUG (FOR PART A1) PLEASE KEEP THIS FOR FUTURE REFERENCE...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Attach wall plate to either a concrete or stud wall. i. Concrete / brick wall. 10mm (7/16") masonry bit ii. Stud wall. 6mm (1/4") wood bit... - Page 8 Attach levelling wheels and protective pads to arms. FLAT SCREEN Hook flat screen onto wall plate and postion (this may require two people). WALL FLAT Lateral Adjustment SCREEN FLAT SCREEN...
- Page 9 Insert locking bar. WALL FLAT SCREEN Optional Secure with padlock (not supplied) Secure the screen in position. WALL FLAT SCREEN...
- Page 10 Adjust levelling wheels. WALL FLAT SCREEN...
-
Page 11: Product Dimensions
BT8421 PRODUCT DIMENSIONS 513mm 30mm 40mm MAX 465mm WALL PLATE 470mm 353mm 235mm 118mm 32mm 500mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 12: B-Tech Contact Details
