B-Tech BT8200 Manual

ULTRA-SLIM
UNIVERSAL FLAT SCREEN WALL MOUNT
FOR MEDIUM SCREENS
*
MAXIMUM FIXING DIMENSIONS
HORIZONTAL: 240mm (9.6") VERTICAL: 200mm (7.9")
*
SCREEN NOT INCLUDED
Only 14mm (0.6")
from wall
B-TECH AUDIO VIDEO MOUNTS
©2010 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.
B-Tech, Better By Design, Mountlogic, Torsion Lock & OWLS are registered trademarks of Bennett Technologies Limited.
All other brands and products names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE.

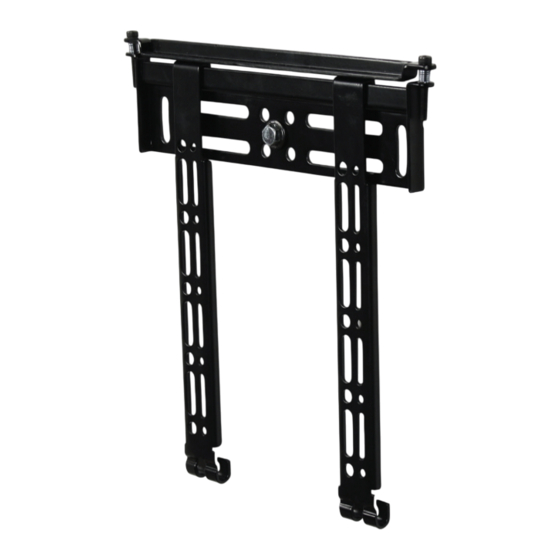

BT8200
Ultra-slim design
for close to
wall installation.
Post installation
screen alignment.
DESIGNED FOR LED,
LCD AND PLASMA
SCREENS UP TO 45"
(114cm) / 35kg (77lbs)
• Fits screens with mounting patterns up to
240mm (9.6") x 200mm (7.9") including VESA
75 x 75mm, 100 x 100mm, 200 x 100mm
and 200 x 200mm
• Ultra-slim design mounts screen
only 14mm (0.6") from wall
• Features 'OWLS' On Wall Levelling System
™
• Suitable for concrete or brick walls
• Security locking screws, Allen key and
locking bar provided for secure installation
• Universal screen fixing kit supplied,
including M4, M5, M6, M8 screws and spacers
• Simple 'hook on' installation with
all mounting hardware included
• Available in Black
www.btechavmounts.co.uk
:
®
Features
'Torsion Lock'
TM
security.
Comprehensive
screen fixing
kit included.
