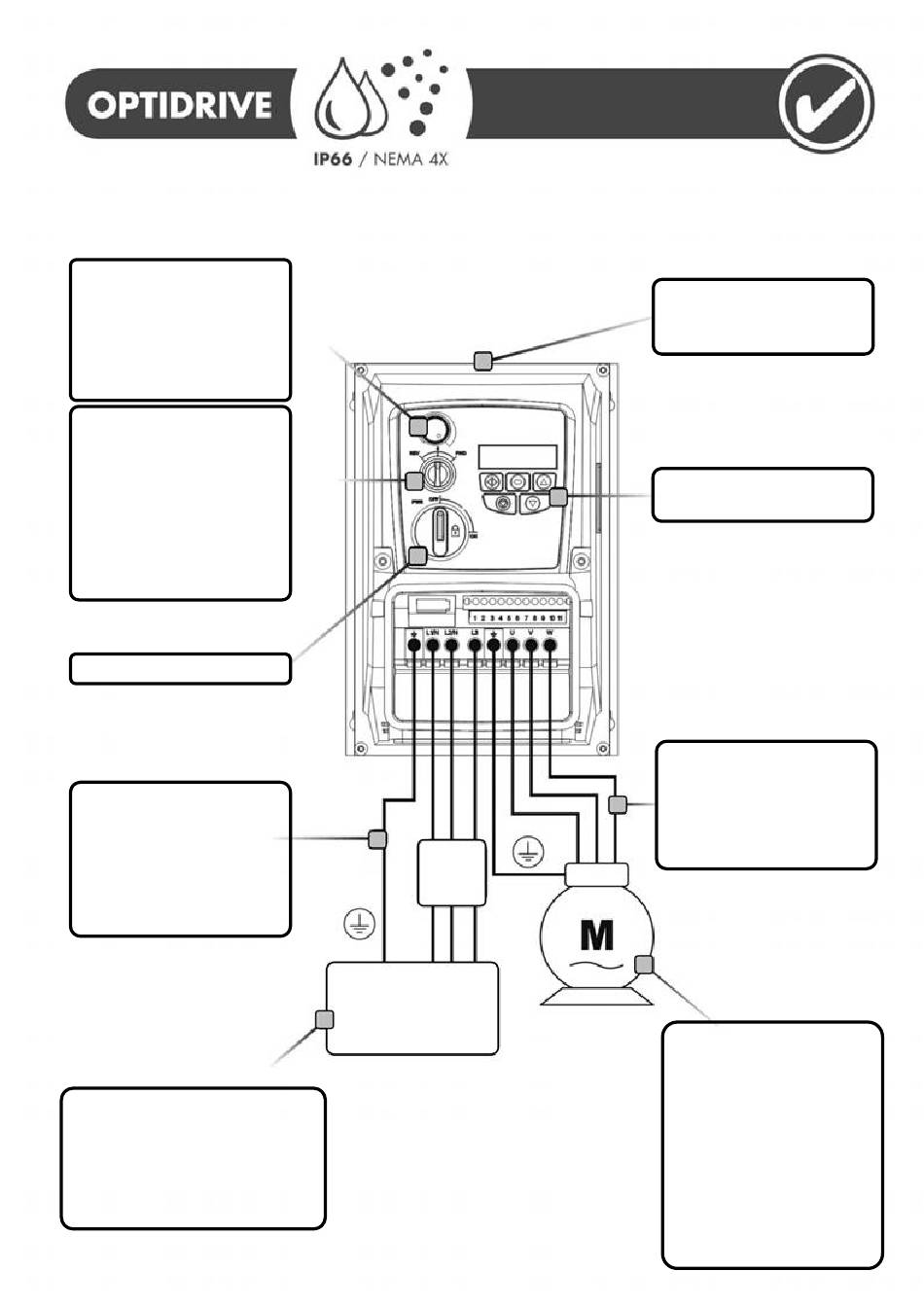

Local Speed Potentiometer
The local speed potentiometer
will adjust the output frequency
from minimum (Parameter P-02,
default setting = 0Hz) to
maximum (Parameter P-01,
default setting = 50 / 60 Hz)
Run Reverse / Off / Run
Forward Switch
With the factory parameter
settings, this switch allows the
drive to be started in the forward
and reverse operating directions.
Alternative switch functions can
be programmed, such as Local /
Remote, Hand / Auto, see page
15
Mains Disconnect / Isolator
Fuses or MCB
- Fuse Ratings given on page
26
- Recommended cable sizes
shown on page 26
Always follow local and national
codes of practice
Supply Voltage
- 110 – 115, 200 – 240, 400 – 480
VAC + / - 10%
- 1 or 3 Phase
Check the drive rating information on
page 26
4
Optidrive ODE-2 User Guide Revision 3.20
Easy Start Up Guide
Fuses
or MCB
Earth L N
L1 L2 L3
AC Supply Voltage
(50 / 60 Hz)
www.invertekdrives.com
Mechanical Mounting
- Information can be found
on page 10
Keypad operation can be found
on page 16
Motor Cable Information
- Check the rating
information on page 26 for
sizing information
- For EMC compliance, use a
shielded type cable
Motor Connections
- Check for Star or Delta
connection according to
the motor nameplate and
voltage rating (See page
13)
Motor Nameplate Details
- Enter the motor rated
voltage in P-07
- Enter the motor rated
current in P-08
- Enter the motor rated
frequency in P-09
