Crestron RMK-8L Quick Start Manual

The RMK-8L is a complete rack mount kit that has been developed for the Crestron
TPMC-8L Wall Mount touchpanel. Use the supplied hardware to attach the touchpanel to the
rack mount kit.

Supplied Hardware

The RMK-8L consists of a mounting plate and screws to secure the touchpanel to the plate.
These items along with the touchpanel produce an assembly that can be attached to a 19"
EIA Equipment rack. The RMK-8L is 8.72 inches (22.15 cm) high x 19 inches (48.26 cm)
wide, and is designed to occupy five rack spaces. Rack-mounting hardware is not supplied.
Rack Mounting Plate, 5 RU High
Screw, #04-40 x 3/8", Pan, Phil, Blk

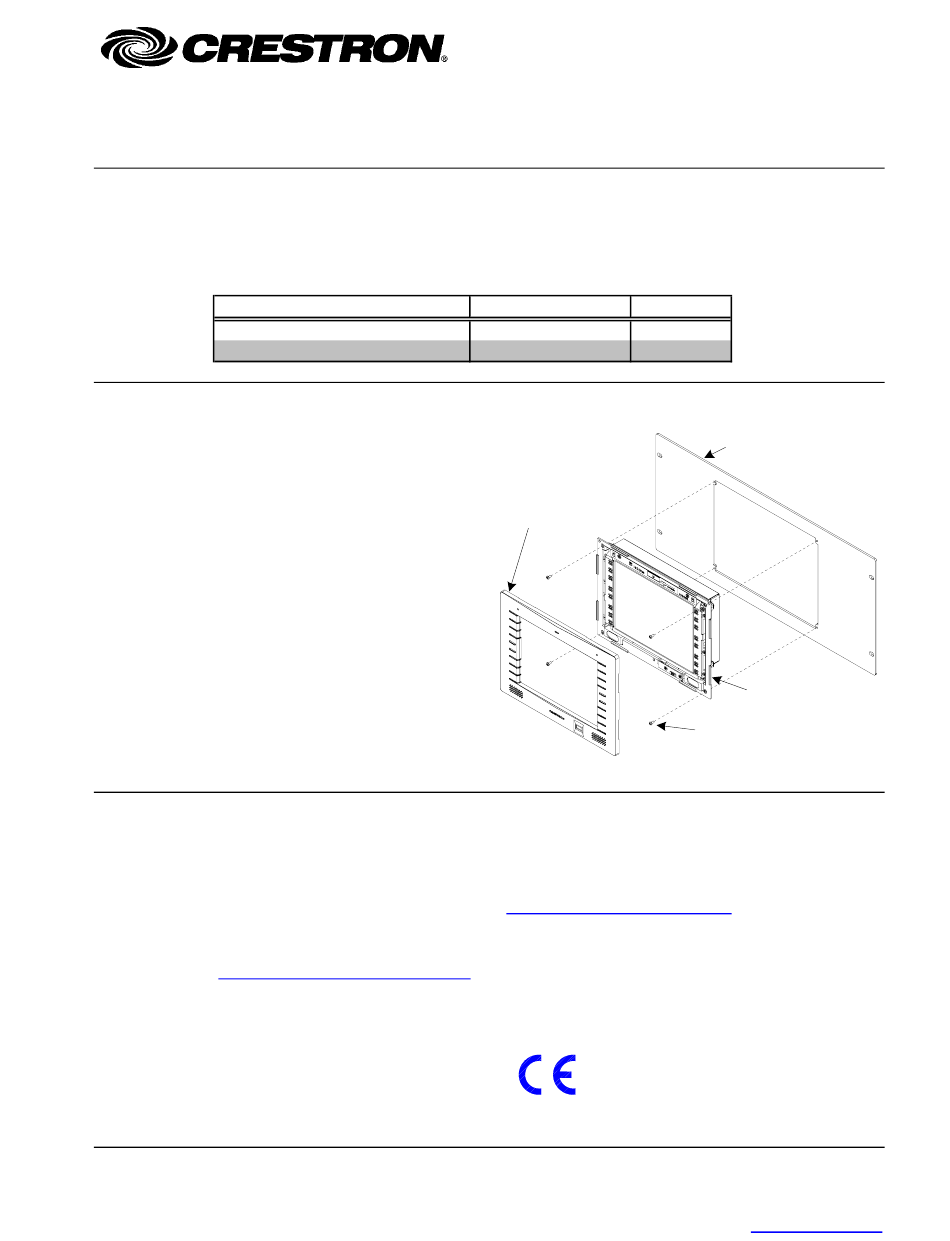

Assembly View

Assembly of the RMK-8L and the
touchpanel is illustrated to the right.
Exercise caution when handling the
touchpanel to avoid damaging the
exposed components. After
attaching the plate to the rack, use a
#2 Phillips head screwdriver to
secure the touchpanel to the rack
mounting plate with the four supplied
screws (do not use the screws
supplied with the touchpanel).
Torque should not exceed 11 in-lbs
(1.243 N*m). Use caution when
handling the touchpanel so as not to
damage or scratch the view screen.
After the touchpanel is secured to
the rack plate, attach the touchpanel
bezel.
Further Inquiries
If you cannot locate specific information or have questions after reviewing this guide, please
take advantage of Crestron's award winning customer service team by calling the Crestron
corporate headquarters at 1-888-CRESTRON [1-888-273-7876]. For assistance in your local
time zone, refer to the Crestron website (http://www.crestron.com/offices) for a listing of
Crestron worldwide offices.
You can also log onto the online help section of the Crestron website
(http://www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time
users will need to establish a user account to fully benefit from all available features.
As of the date of manufacture, the RMK-8L has been tested and found to comply with
specifications for CE marking.
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
DESCRIPTION
Rack Mount Kit: RMK-8L
PART NUMBER QUANTITY
2018200
2007170
TOUCHPANEL
BEZEL
Installation Guide – DOC. 6596A
Specifications subject to change without notice.
1
4
RACK MOUNTING PLATE
(2018200)
TOUCHPANEL
MOUNTING SCREWS
(4) #04-40 X 3/8"
(2018201)
07.07
www.crestron.com
