Crestron RMK-3100L Installation Manual

The RMK-3100L is a complete rack mount kit that has been developed for the Crestron
TPS-3100L series of wall-mounted touchpanels. Use the supplied hardware to attach the
touchpanel to the rack mount kit.

Supplied Hardware

The RMK-3100L consists of a mounting plate and screws to secure the touchpanel to the
plate. These items along with the touchpanel produce an assembly that can be attached to a
19" EIA Equipment rack. Rack-mounting hardware is not supplied.
Rack Mounting Plate, 5 RU High
Screw, 6-32, 1/4"L, Pan, Phil, Blk

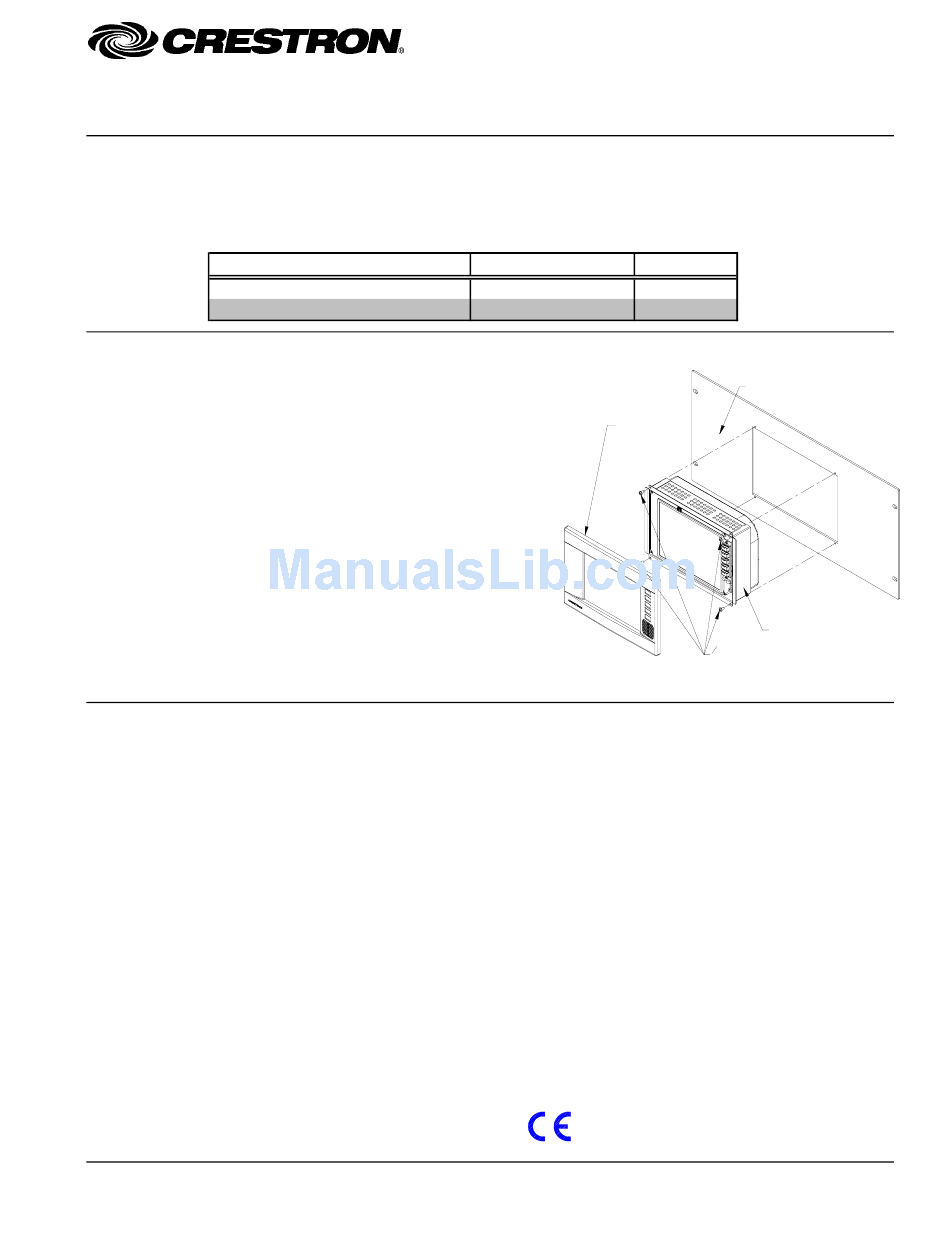

Assembly View
Assembly of the RMK-3100L to the
touchpanel is illustrated to the right. Exercise
caution when handling the touchpanel to
avoid damaging the exposed components.
Use a #2 Phillips head screwdriver to secure
the touchpanel to the rack mounting plate with
the four supplied screws (do not use the
screws supplied with the touchpanel). Torque
should not exceed 11 in-lbs (1.243 N*m). Use
caution when handling the touchpanel as not
to damage or scratch the view screen. The
RMK-3100L is designed to occupy five rack
spaces, 8.72 inches (22.15 cm) high. After the
touchpanel is secured to the rack plate,
reinstall the touchpanel faceplate and attach
the plate to the rack.

Further Inquiries

If after reviewing this Installation Guide, you cannot locate specific information or have
questions, please take advantage of Crestron's award winning customer service team by
calling:
•
In the US and Canada, call Crestron's corporate headquarters at
1-888-CRESTRON [1-888-273-7876].
•
In Europe, call Crestron International at +32-15-50-99-50.
•
In Asia, call Crestron Asia at +852-2341-2016.
•
In Latin America, call Crestron Latin America at +5255-5093-2160.
•
In Australia and New Zealand, call Crestron Control Solutions at
+61-2-9737-8203.
You can also log onto the online help section of the Crestron website (www.crestron.com) to
ask questions about Crestron products. First-time users will need to establish a user account
to fully benefit from all available features.
As of the date of manufacture, the RMK-3100L has been tested and found to comply with
specifications for CE marking.
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
DESCRIPTION
Rack Mount Kit: RMK-3100L
PART NUMBER QUANTITY
2010623
2007215
TOUCHPANEL
FACEPLATE
Specifications subject to change without notice.
1
4
RACK MOUNTING PLATE
TPS-3100L TOUCHPANEL
1
" MOUNTING SCREWS, QTY. 4
4
(SUPPLIED BY CRESTRON)
Installation Guide – DOC. 6299
Rack Mount Kit: RMK-3100L
09.04
