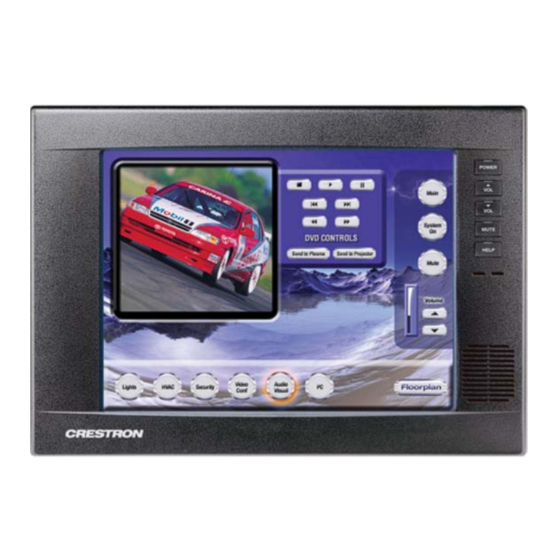

The RMK-4000L is a complete rack mount kit that has been developed for the Crestron
TPS-4000L series of wall-mounted touchpanels. Use the supplied hardware to attach the
touchpanel to the rack mount kit.

Supplied Hardware

The RMK-4000L consists of a mounting plate and screws to secure the touchpanel to the
plate. These items along with the touchpanel produce an assembly that can be attached to a
19" EIA Equipment rack. The RMK-4000L is 10.47 inches (26.59 cm) high, and is designed to
occupy six rack spaces. Rack-mounting hardware is not supplied.
Rack Mounting Plate, 6 RU High
Screw, 6-32, 1/4"L, Pan, Phil, Blk

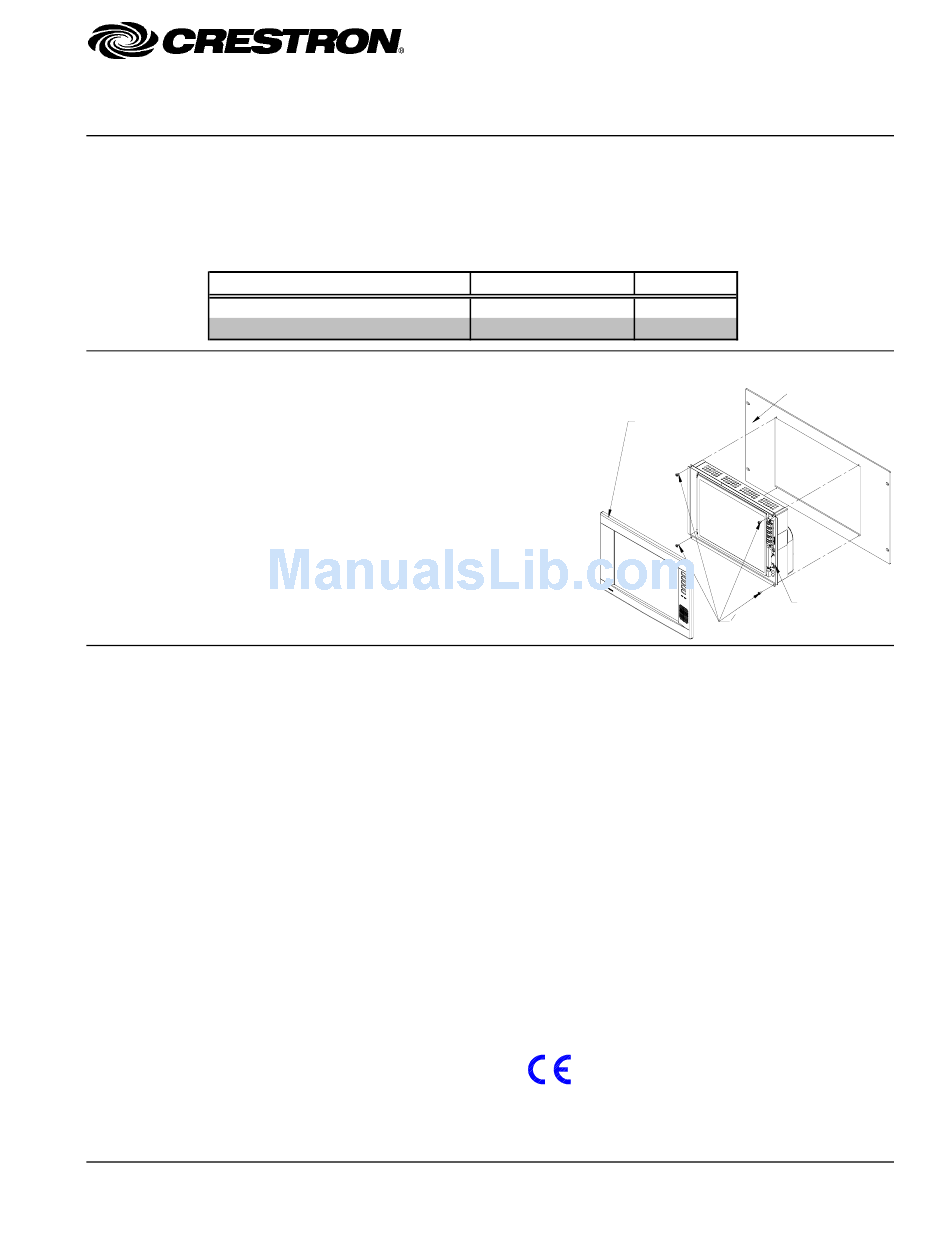

Assembly View

Assembly of the RMK-4000L to the touchpanel is
illustrated to the right. Exercise caution when handling
the touchpanel to avoid damaging the exposed
components. After attaching the plate to the rack, use
a #2 Phillips head screwdriver to secure the
touchpanel to the rack mounting plate with the four
supplied screws (do not use the screws supplied
with the touchpanel). Torque should not exceed 11
in-lbs (1.243 N*m). Use caution when handling the
touchpanel as not to damage or scratch the view
screen. After the touchpanel is secured to the rack
plate, install the buttons and the touchpanel faceplate.

Further Inquiries

If after reviewing this Installation Guide, you cannot locate specific information or have
questions, please take advantage of Crestron's award winning customer service team by
calling:
In the US and Canada, call Crestron's corporate headquarters at
1-888-CRESTRON [1-888-273-7876].
In Europe, call Crestron International at +32-15-50-99-50.
In Asia, call Crestron Asia at +852-2341-2016.
In Latin America, call Crestron Latin America at +5255-5093-2160.
In Australia and New Zealand, call Crestron Control Solutions at
+61-2-9737-8203.
You can also log onto the online help section of the Crestron website (www.crestron.com) to
ask questions about Crestron products. First-time users will need to establish a user account
to fully benefit from all available features.
As of the date of manufacture, the RMK-4000L has been tested and found to comply with
specifications for CE marking.
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
DESCRIPTION
Rack Mount Kit: RMK-4000L
PART NUMBER
QUANTITY
2011518
2007215
TOUCHPANEL
FACEPLATE
Specifications subject to change without notice.
1
4
RACK MOUNTING PLATE
TPS-4000L TOUCHPANEL
1
" MOUNTING SCREWS, QTY. 4
4
(SUPPLIED BY CRESTRON)
Installation Guide – DOC. 6306
Rack Mount Kit: RMK-4000L
10.04
www.crestron.com
