Crestron RMK-17L Installation Manual

The RMK-17L is a complete rack mount kit that has been developed for the Crestron
TPS-17L, TPMC-17-CH-L, and TPMC-17-QM-L series of wall mounted touchpanels. Use the
supplied hardware to attach the touchpanel to the rack mount kit.

Supplied Hardware

The RMK-17L consists of a mounting plate and screws to secure the touchpanel to the plate.
These items along with the touchpanel produce an assembly that can be attached to a 19"
EIA Equipment rack. The RMK-17L is 15.72 inches (39.93 cm) high x 19 inches (48.26 cm)
wide, and is designed to occupy nine rack spaces. Rack-mounting hardware is not supplied.
Rack Mounting Plate, 9 RU High
Screw, 6-32, 1/4"L, Pan, Phil, Blk

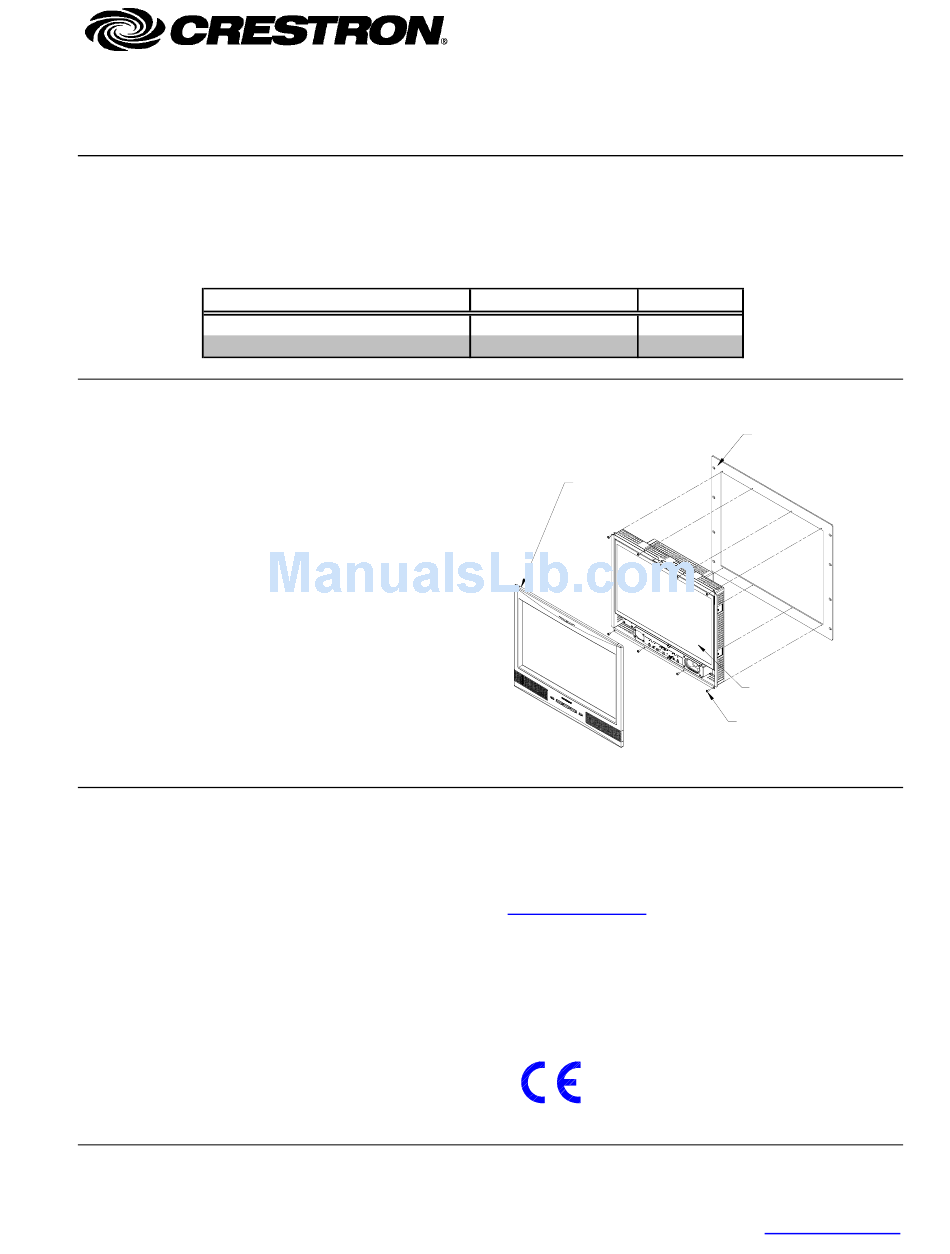

Assembly View

Assembly of the RMK-17L to the
touchpanel is illustrated to the right.
Exercise caution when handling the
touchpanel to avoid damaging the
exposed components. After attaching
the plate to the rack, use a #2 Phillips
head screwdriver to secure the
touchpanel to the rack mounting plate
with the eight supplied screws (do not
use the screws supplied with the
touchpanel). Torque should not
exceed 11 in-lbs (1.243 N*m). Use
caution when handling the touchpanel
as not to damage or scratch the view
screen. After the touchpanel is
secured to the rack plate, install the
buttons and the touchpanel faceplate.
Further Inquiries
If you cannot locate specific information or have questions after reviewing this guide, please
take advantage of Crestron's award winning customer service team by calling the Crestron
corporate headquarters at 1-888-CRESTRON [1-888-273-7876]. For assistance in your local
time zone, refer to the Crestron website (www.crestron.com) for a listing of Crestron
worldwide offices.
You can also log onto the online help section of the Crestron website to ask questions about
Crestron products. First-time users will need to establish a user account to fully benefit from
all available features.
As of the date of manufacture, the RMK-17L has been tested and found to comply with
specifications for CE marking.
