Rack Mount Kit: RMK-9L
The RMK-9L is a complete rack mount kit that has been developed for the Crestron Isys
TPMC-9L 9" Wall Mount Touchpanel. Use the supplied hardware to attach the touchpanel to
the rack mount kit.

Supplied Hardware

The RMK-9L consists of a mounting plate and screws to secure the touchpanel to the plate.
These items along with the touchpanel produce an assembly that can be attached to a 19"
EIA Equipment rack. The RMK-9L is 8.72 inches (222 mm) high x 19 inches (483 mm) wide,
and is designed to occupy five rack spaces. Rack-mounting hardware is not supplied.
Rack Mounting Plate, 5 RU High
Screw, #04-40 x 3/8", Pan, Phil, Blk

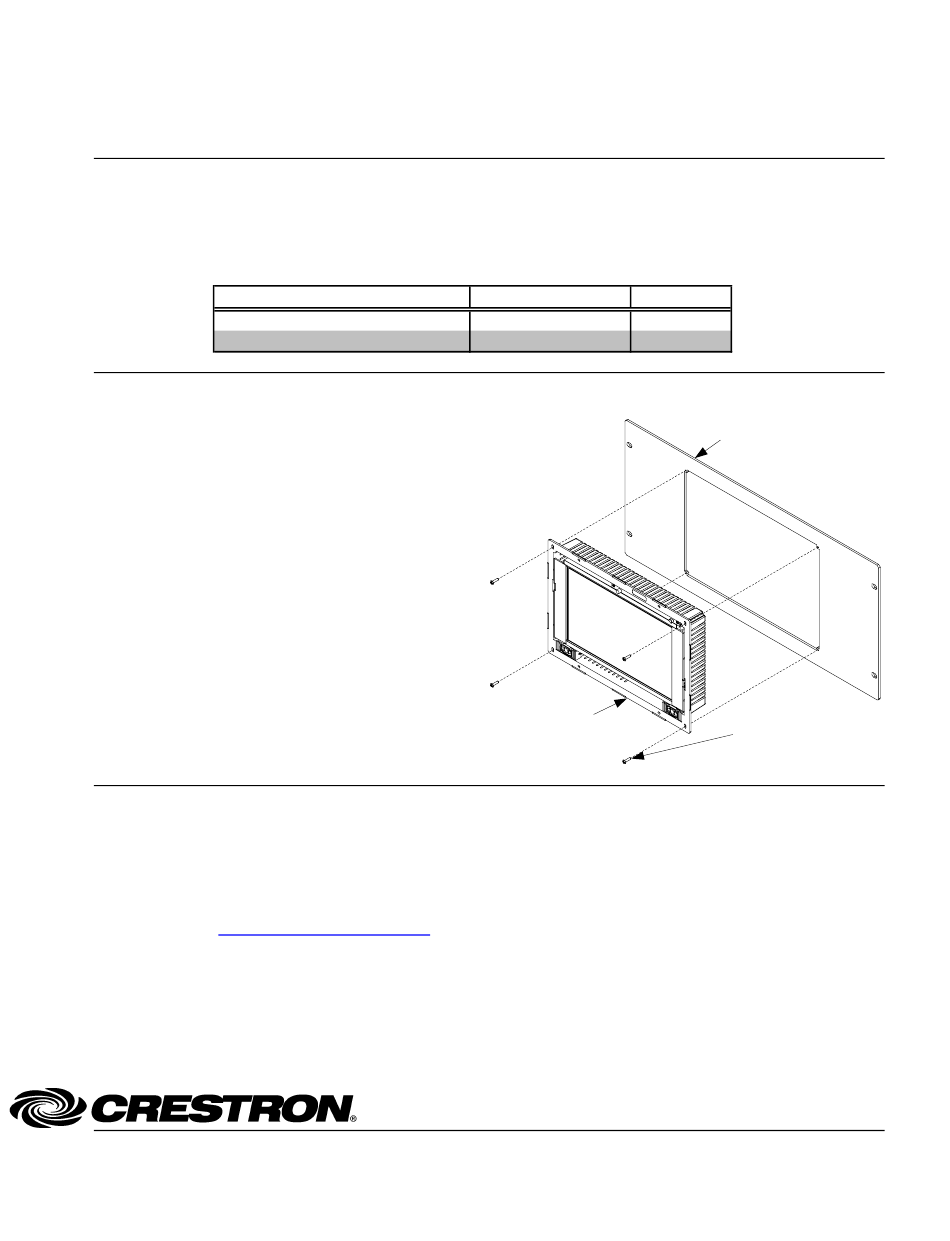

Assembly View

Assembly of the RMK-9L and the
touchpanel is illustrated to the right.
Exercise caution when handling the
touchpanel to avoid damaging the
exposed components. After
attaching the plate to the rack, use
a #2 Phillips head screwdriver to
secure the touchpanel to the rack
mounting plate with the four
supplied screws (do not use the
screws supplied with the
touchpanel). Torque should not
exceed 11 in-lbs (1.243 N*m). Use
caution when handling the
touchpanel so as not to damage or
scratch the view screen. After the
touchpanel is secured to the rack
plate, attach the touchpanel bezel.
Further Inquiries
If you cannot locate specific information or have questions after reviewing this guide, please
take advantage of Crestron's award winning customer service team by calling the Crestron at
1-888-CRESTRON [1-888-273-7876].
You can also log onto the online help section of the Crestron website
(www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will
need to establish a user account to fully benefit from all available features.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
DESCRIPTION
PART NUMBER
QUANTITY
2028257
2007170
TPMC-9L
Installation Guide – DOC. 7035A
®
1
4
Rack Mounting Plate
(2028257)
Mounting Screws
(4) #04-40 x 3/8"
(2007170)
(2028349)
08.10
Specifications subject to
change without notice.
