Crestron RMK-5000 Installation Manual

Rack Mount Kit: RMK-5000
The RMK-5000 is a complete rack mount kit that has been developed for the Crestron
TPS-5000LB, TPS-5000LW, TPS-4500LB, and TPS-4500LW touchpanel models. Use the
supplied hardware to assemble the rack mount kit to the touchpanel.

Supplied Hardware

The RMK-5000 consists of two items with differing quantities. These items along with the
touchpanel produce an assembly that can be attached to a rack. Rack-mounting hardware is
not supplied.

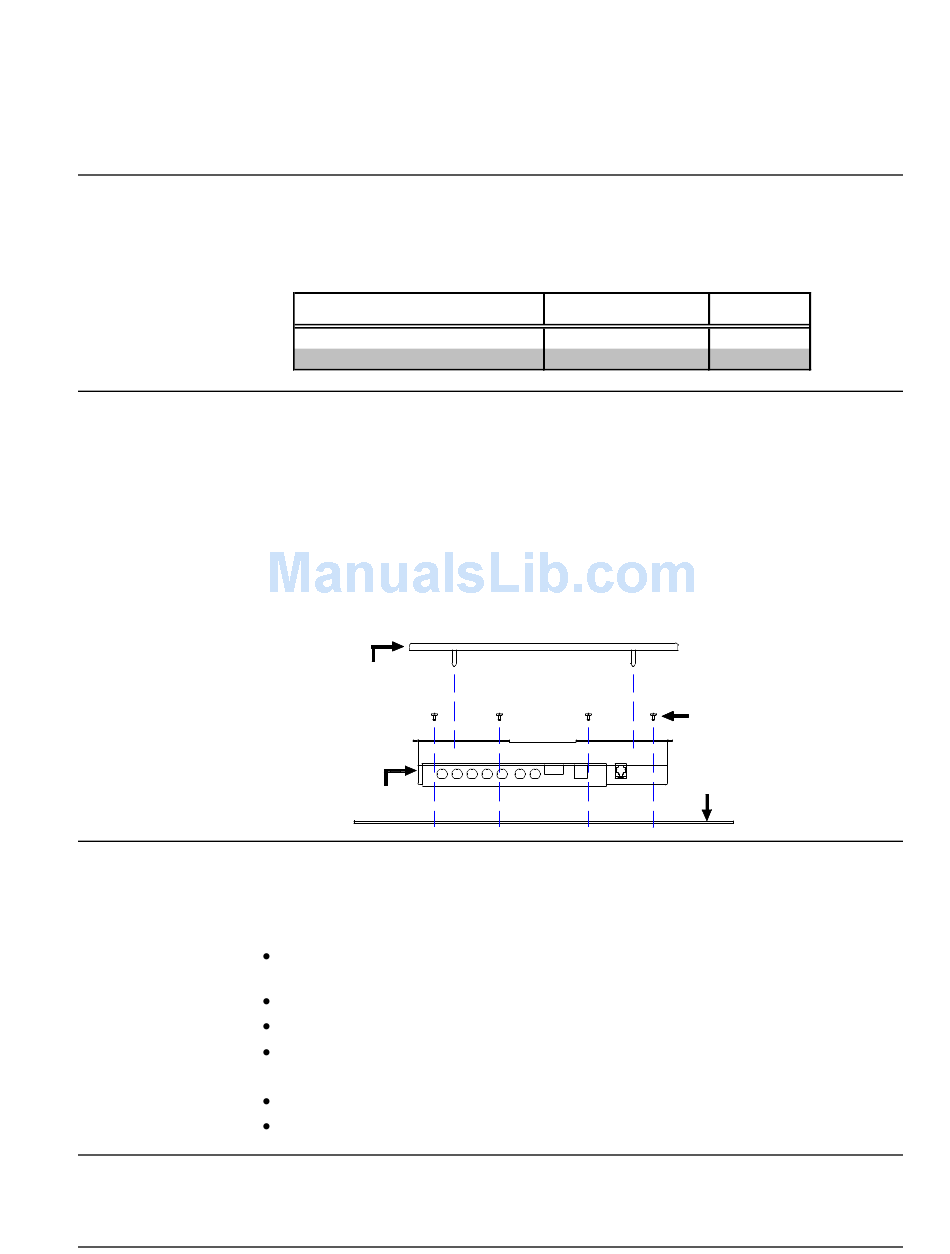

Assembly View

Assembly of the RMK-5000 with the touchpanel is illustrated below (TPS-5000L is shown in
the illustration). The RMK-5000 is designed to occupy seven rack spaces, 12.22 inches
(31.04 cm). The only difference between the two sides of the rack plate is that a barcode
appears on one side. The barcode side should be hidden from view once installed in a rack.
Attach the rack plate to the rack with rack-mounting hardware. Use caution when handling
the touchpanel as not to damage or scratch the view screen. Place the touchpanel (without
cover) in the rack plate opening and secure with the supplied screws. Crestron recommends
the use of a #2 Phillips head screwdriver to secure these eight screws with a torque of
11 in-lbs (1.243 N*m). Align the cover guide pins with the holes in the touchpanel and insert
the cover over the touchpanel.

Further Inquiries

If after reviewing this sheet for the RMK-5000, you cannot locate specific information or have
questions, please take advantage of Crestron's award winning customer service team by
calling:
For local support from exclusive Crestron factory-trained personnel call:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
ITEM
Rack Mount Plate
Screw, Pan Phil
COVER
TOUCHPANEL
In the US and Canada, call Crestron's corporate headquarters at
1-888-CRESTRON [1-888-273-7876] or 1-201-767-3400.
In Europe, call Crestron International at +32-15-50-99-50.
In Asia, call Crestron Asia at +852-2341-2016.
In Latin America, call Crestron Latin America at +525-260-4336.
In Australia, call Soundcorp at +613-9488-1555.
In New Zealand, call Amber Technologies at +649-410-8382.
PART NUMBER QUANTITY
17502
#6-32 x 0.25" LG
SCREWS
RACK PLATE
Installation Guide – DOC. 5852A
Rack Mount Kit: RMK-5000
Specifications subject to change without notice.
1
8
09.01
