Crestron RMK-6000 Installation Manual

Rack Mount Kit: RMK-6000
The RMK-6000 is a complete rack mount kit that has been developed for the Crestron
TPS-6000LB and TPS-6000LW touchpanel models. Use the supplied hardware to assemble
the rack mount kit to the touchpanel.

Supplied Hardware

The RMK-6000 consists of two items with differing quantities. These items along with the
touchpanel produce an assembly that can be attached to a rack. Rack-mounting hardware is
not supplied.

Assembly View

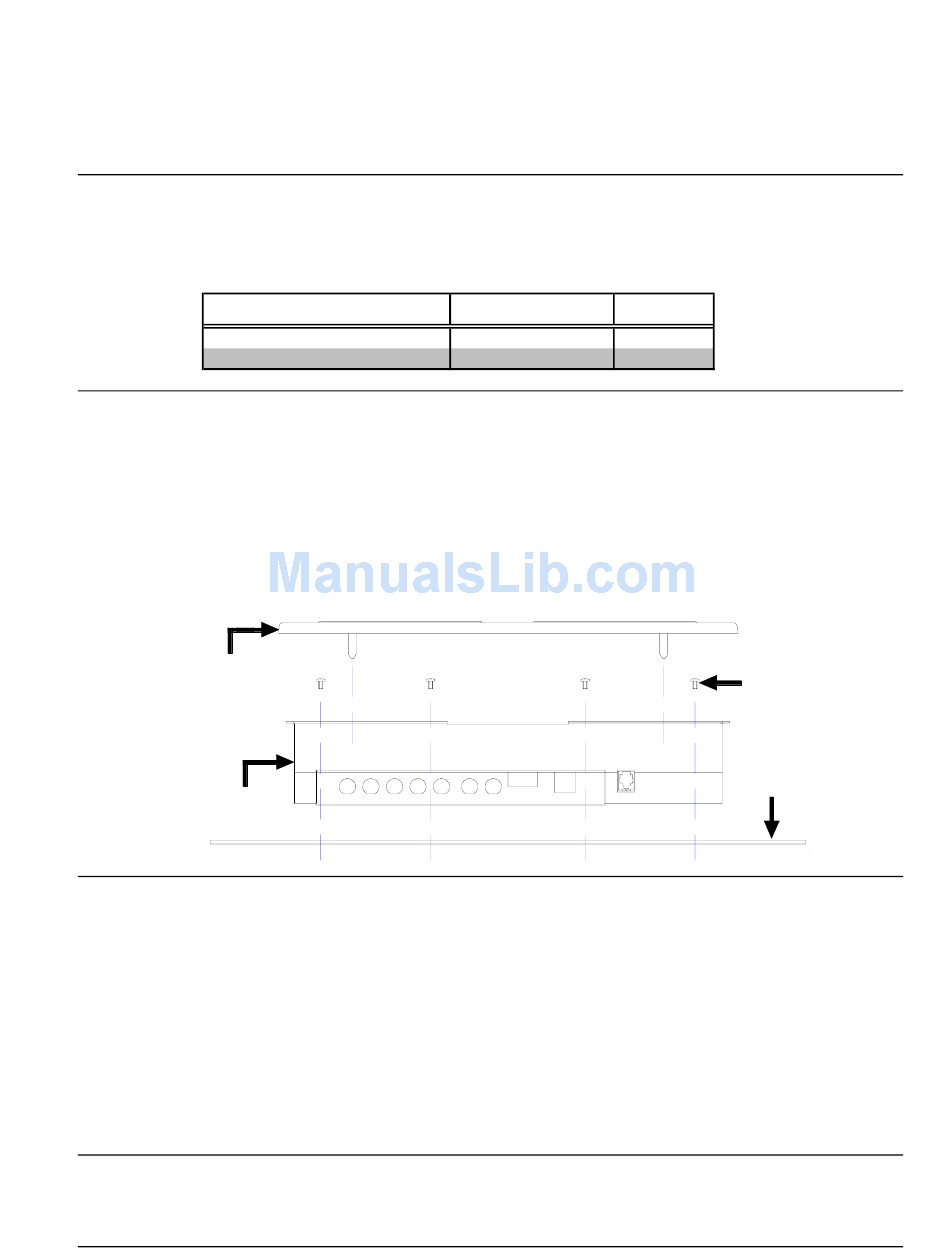

Assembly of the RMK-6000 to the touchpanel is illustrated below. The RMK-6000 is designed
to occupy nine rack spaces, 15.72 inches (39.93 cm). The only difference between the two
sides of the rack plate is that a barcode appears on one side. The barcode side should be
hidden from view once installed in a rack. Attach the rack plate to the rack with rack-mounting
hardware. Use caution when handling the touchpanel as not to damage or scratch the view
screen. Place the touchpanel (without cover) in the rack plate opening and secure with the
supplied screws. Crestron recommends the use of a #2 Phillips head screwdriver to secure
the four supplied screws with a torque of 11 in-lbs (1.243 N*m). Align the cover guide pins
with the holes in the touchpanel and insert the cover over the touchpanel.
